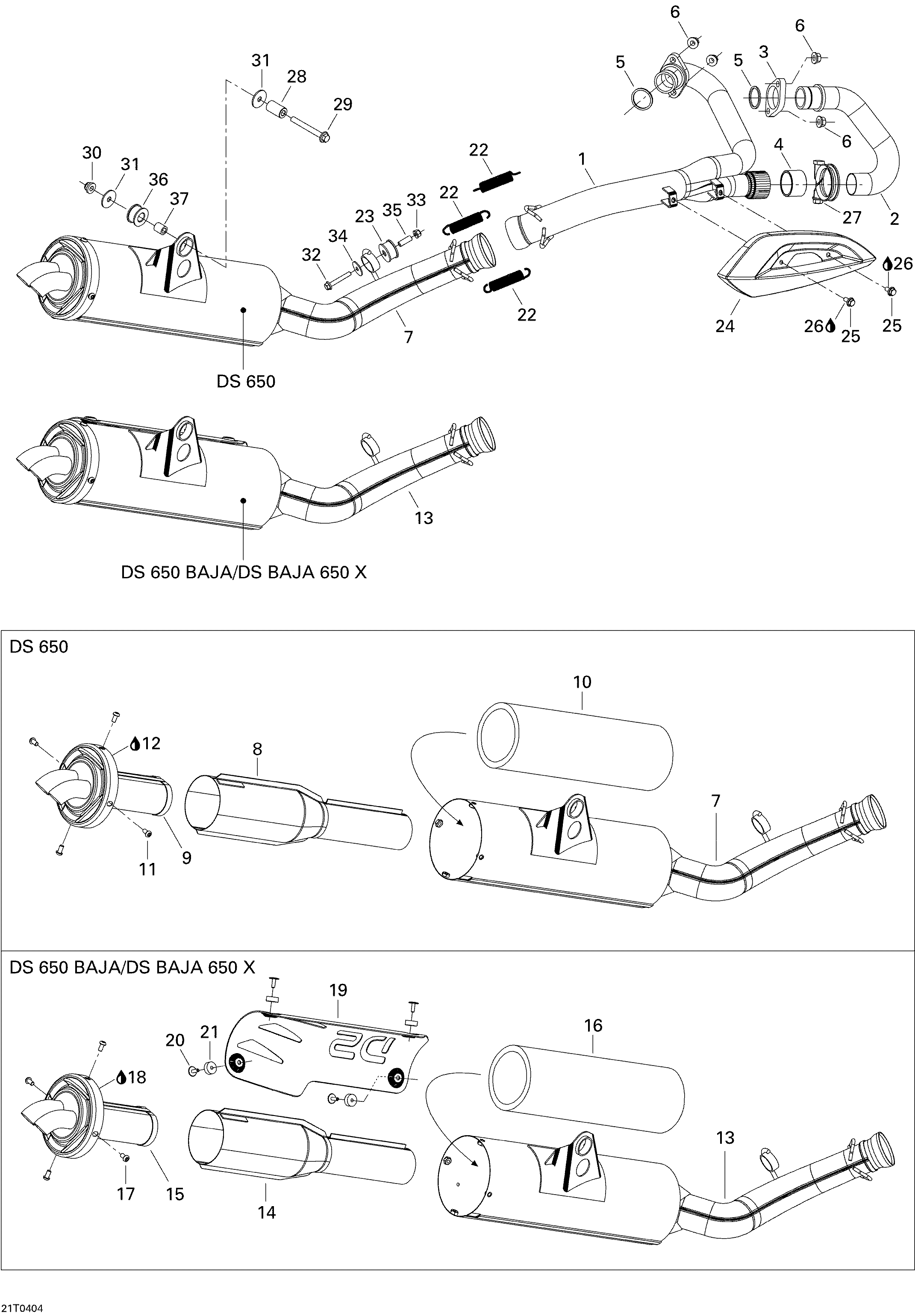

01- Exhaust System для BRP DS 650/DS 650 Baja/X - 2004
-
№АртикулНазвание
-
1707600019 LH Tuned PipeLH Tuned Pipe
-
2707600196 RH Tuned PipeRH Tuned Pipe
-
3707600024 Exhaust ClampExhaust Clamp
-
4707600020 Pipe GasketPipe Gasket
-
5707600069 Pipe GasketPipe Gasket
-
6233081416 Hex Flanged Nut M8Hex Flanged Nut M8
-
7707600065 Tuned Pipe. DS 650Tuned Pipe. DS 650
-
8707600053 Perforated Tube. DS 650Perforated Tube. DS 650
-
9707600066 End Piece. DS 650End Piece. DS 650
-
10707600089 Insulator. DS 650Insulator. DS 650
-
11205461060 Socket Head Screw M6 X 10. DS 650Socket Head Screw M6 X 10. DS 650
-
12293800090 Sealant, Loctite 17914, 80 ml. DS 650Sealant, Loctite 17914, 80 ml. DS 650
-
13707600188 Tuned Pipe. DS BAJA 650 / DS BAJA 650 XTuned Pipe. DS BAJA 650 / DS BAJA 650 X
-
14707600053 Perforated Tube. DS BAJA 650 / DS BAJA 650 XPerforated Tube. DS BAJA 650 / DS BAJA 650 X
-
15707600066 End Piece. DS BAJA 650 / DS BAJA 650 XEnd Piece. DS BAJA 650 / DS BAJA 650 X
-
16707600089 Insulator. DS BAJA 650 / DS BAJA 650 XInsulator. DS BAJA 650 / DS BAJA 650 X
-
17205461060 Socket Head Screw M6 X 10. DS BAJA 650 / DS BAJA 650 XSocket Head Screw M6 X 10. DS BAJA 650 / DS BAJA 650 X
-
18293800090 Sealant, Loctite 17914, 80 ml. DS BAJA 650 / DS BAJA 650 XSealant, Loctite 17914, 80 ml. DS BAJA 650 / DS BAJA 650 X
-
19707600179 Heat Shield. DS BAJA 650 / DS BAJA 650 XHeat Shield. DS BAJA 650 / DS BAJA 650 X
-
20390409600 Rivet-Pop 3/16''. DS BAJA 650 / DS BAJA 650 XRivet-Pop 3/16''. DS BAJA 650 / DS BAJA 650 X
-
21250200034 Rubber Washer. DS BAJA 650 / DS BAJA 650 XRubber Washer. DS BAJA 650 / DS BAJA 650 X
-
22415107100 SpringSpring
-
23707600012 Anti-Vibration RubberAnti-Vibration Rubber
-
24707600223 Heat Shield. DS 650Heat Shield. DS 650
-
707600241 Heat Shield. DS BAJA 650 / DS BAJA 650 XHeat Shield. DS BAJA 650 / DS BAJA 650 X
-
25207661244 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
26293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
27293650093 Gear ClampGear Clamp
-
28707600049 SpacerSpacer
-
29207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
30233281414 Hex Elastic Flanged Nut M8Hex Elastic Flanged Nut M8
-
31224081301 Flat WasherFlat Washer
-
32207664044 Hex Flanged Screw M6 X 40Hex Flanged Screw M6 X 40
-
33233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
34224060251 WasherWasher
-
35707600070 SpacerSpacer
-
36707600077 RubberRubber
-
37293900025 BushingBushing
