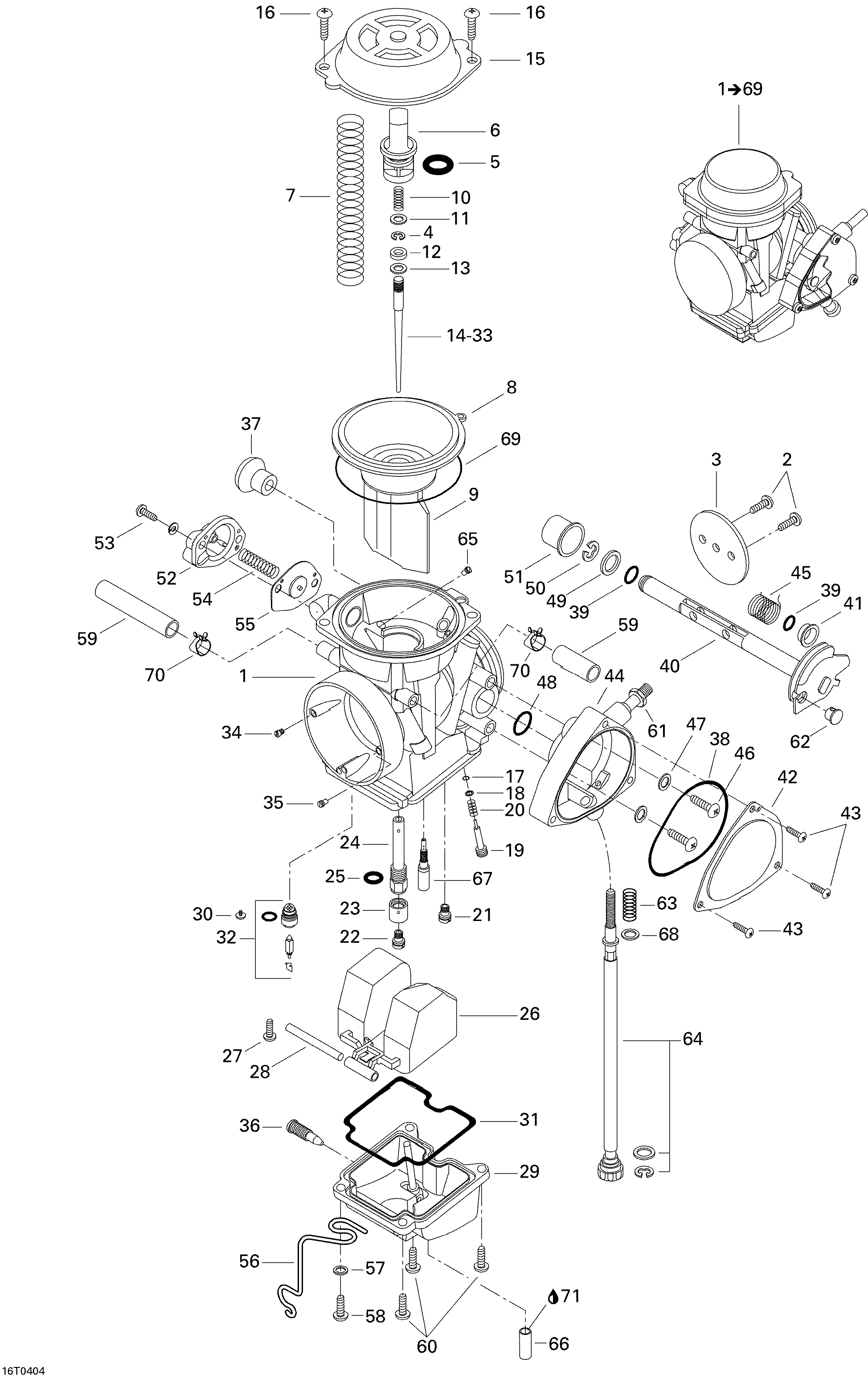

02- Carburetor для BRP DS 650/DS 650 Baja/X - 2004
-
№АртикулНазвание
-
707200142 Carburetor Bsr42-4. INCLUDES ITEMS 1 TO 69Carburetor Bsr42-4. INCLUDES ITEMS 1 TO 69
-
4404152200 E-RingE-Ring
-
5270500144 O-RingO-Ring
-
6707200067 HolderHolder
-
7707200147 SpringSpring
-
8707200113 DiaphragmDiaphragm
-
9707200114 Valve-PistonValve-Piston
-
10707200071 SpringSpring
-
11707200072 WasherWasher
-
12707200065 RingRing
-
13707200064 WasherWasher
-
14707200137 Needle J8-6Bcy22-60Needle J8-6Bcy22-60
-
15707200116 Diaphragm CoverDiaphragm Cover
-
16404161903 ScrewScrew
-
17404139900 O-RingO-Ring
-
18707200018 WasherWasher
-
19707200117 AdjusterAdjuster
-
20707200078 SpringSpring
-
21707200108 Starter Jet 45.0Starter Jet 45.0
-
22270500411 Main Jet 165Main Jet 165
-
23707200148 RingRing
-
24707200080 Jet HolderJet Holder
-
25270500119 O-RingO-Ring
-
26707200103 Float Ass'YFloat Ass'Y
-
27404138600 ScrewScrew
-
28404123400 PinPin
-
29707200119 Float Ass'YFloat Ass'Y
-
30404161861 ScrewScrew
-
31707200083 O-RingO-Ring
-
32707200139 Valve-Needle 3.0Valve-Needle 3.0
-
33707200121 Jet-Needle (Not Shown)Jet-Needle (Not Shown)
-
34707200122 Pilot Jet 110Pilot Jet 110
-
35707200123 Jet 120Jet 120
-
36707200024 ScrewScrew
-
37707200124 Plunger Ass'YPlunger Ass'Y
-
38707200092 O-RingO-Ring
-
42707200126 CoverCover
-
43707200091 ScrewScrew
-
52707200105 Cover Ass'YCover Ass'Y
-
53404901400 ScrewScrew
-
54707200129 SpringSpring
-
55707200106 Diaphragm Ass'YDiaphragm Ass'Y
-
56707200130 ClipClip
-
57707200101 WasherWasher
-
58404138700 ScrewScrew
-
59707200131 HoseHose
-
60404159300 ScrewScrew
-
61707200132 NutNut
-
62707200058 Cable GuideCable Guide
-
63404101700 SpringSpring
-
64707200140 Cable-AdjusterCable-Adjuster
-
65707200134 Air Jet 1.3Air Jet 1.3
-
66707200135 HoseHose
-
67707200136 Jet-Pilot 40Jet-Pilot 40
-
68707200141 WasherWasher
-
70414420700 Spring ClipSpring Clip
-
71413708300 Glue Tube, Loctite 454, 20 GGlue Tube, Loctite 454, 20 G
