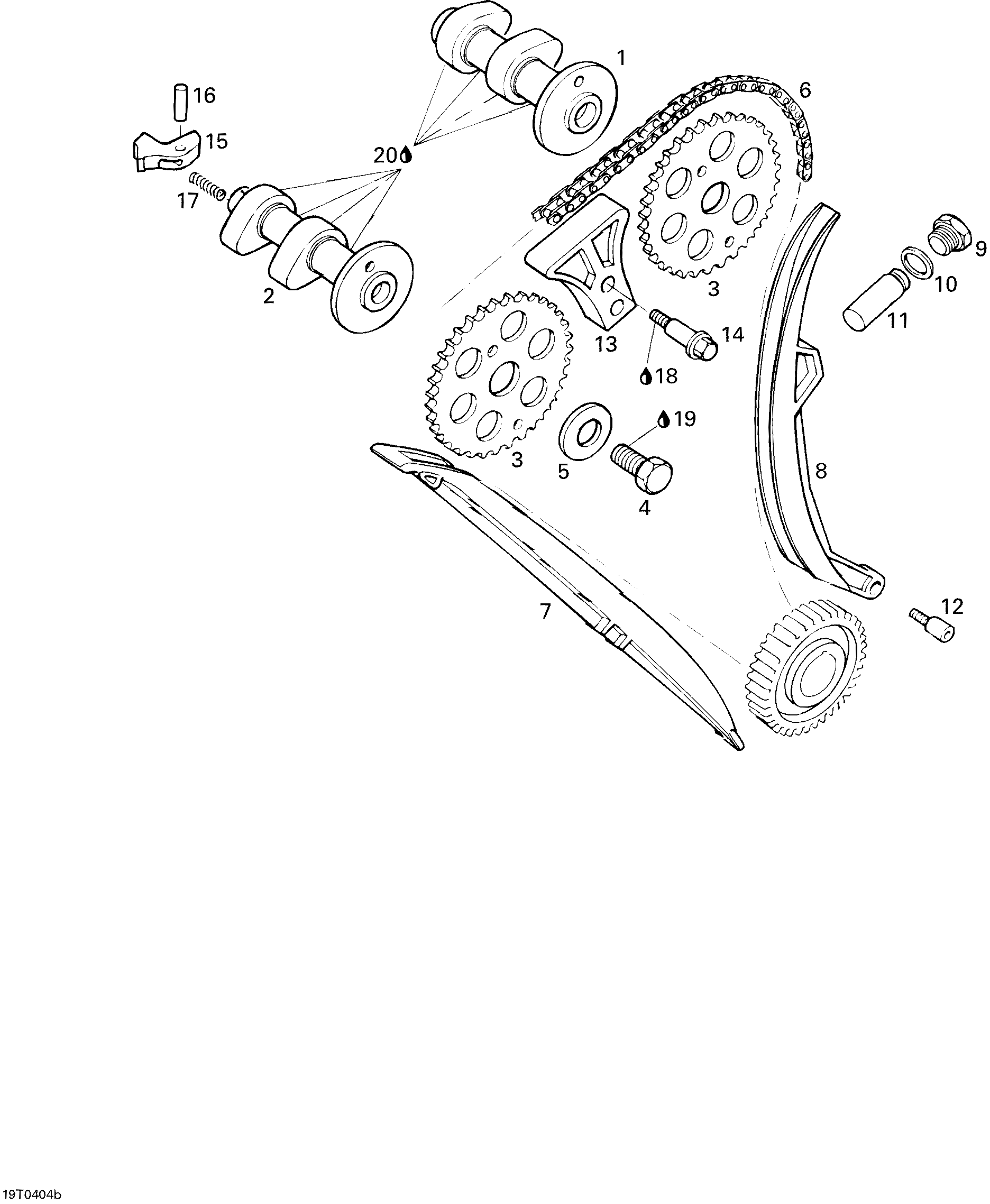

01- Valve Train для BRP DS 650/DS 650 Baja/X - 2004
-
№АртикулНазвание
-
1420220190 Camshaft-InletCamshaft-Inlet
-
2420220200 Camshaft-ExhaustCamshaft-Exhaust
-
3420634280 Timing Gear (34 Teeth)Timing Gear (34 Teeth)
-
4207102044 Hex Screw M10 X 20Hex Screw M10 X 20
-
5420627040 WasherWasher
-
6420297890 Timing ChainTiming Chain
-
7420236230 Chain GuideChain Guide
-
8420236221 Chain Tension GuideChain Tension Guide
-
9420552277 Hex Screw M18 X 10Hex Screw M18 X 10
-
10420552280 O-RingO-Ring
-
11420236250 Rod TensionerRod Tensioner
-
12420240940 Screw M6Screw M6
-
13420236240 Chain Guide BowChain Guide Bow
-
14420240960 Distance Screw M6 X 16Distance Screw M6 X 16
-
15420231045 Centrifugal WeightCentrifugal Weight
-
16420232910 PegPeg
-
17420239920 SpringSpring
-
18293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
19413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
20293600039 Engine Oil 4 Strokes, 5W40, 12 X 1 LitersEngine Oil 4 Strokes, 5W40, 12 X 1 Liters
