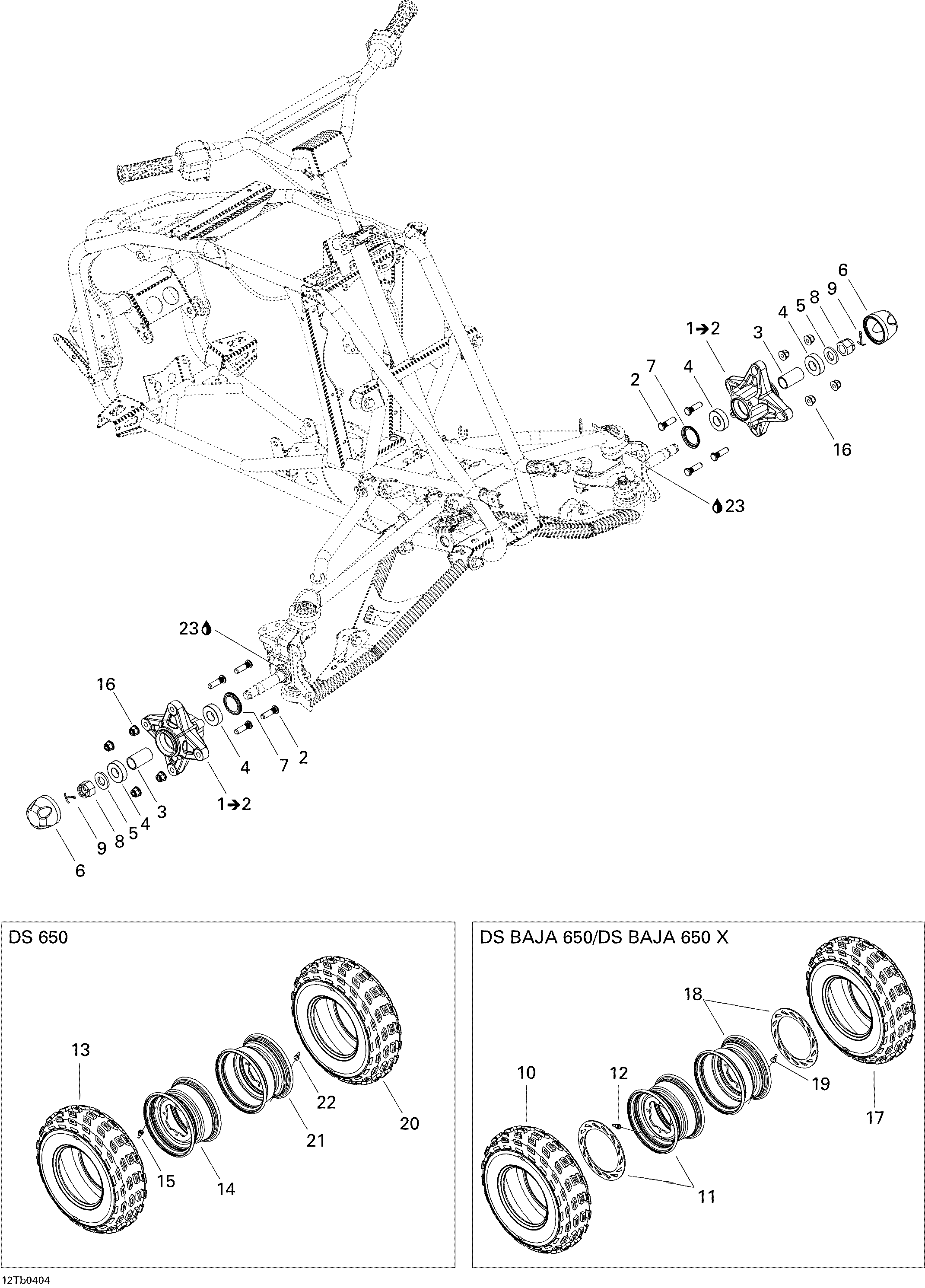

05- Drive System, Front для BRP DS 650/DS 650 Baja/X - 2004
![](/wa-data/public/shop/sheme/bombardier/atv/7a8a99ca-fddb-4964-973f-94baf01c835a.png)
-
№АртикулНазвание
-
1705400217 Wheel Hub Ass'Y. INCLUDES ITEMS 1 TO 2Wheel Hub Ass'Y. INCLUDES ITEMS 1 TO 2
-
2250000138 Wheel StudWheel Stud
-
3293900043 Inside BushingInside Bushing
-
4293350049 Ball BearingBall Bearing
-
5250200019 WasherWasher
-
6705400012 Wheel CapWheel Cap
-
7293250094 SealSeal
-
8250100047 Hex Castellated NutHex Castellated Nut
-
9211400011 Cotter PinCotter Pin
-
10705400136 Front Tire. DS BAJA 650 / DS BAJA 650 XFront Tire. DS BAJA 650 / DS BAJA 650 X
-
11705400137 Front Rim RH. DS 650 XFront Rim RH. DS 650 X
-
12705400193 Rim Valve. DS BAJA 650 / DS BAJA 650 XRim Valve. DS BAJA 650 / DS BAJA 650 X
-
13705400136 Front Tire. DS 650Front Tire. DS 650
-
14705400121 Front Rim. DS 650Front Rim. DS 650
-
15705400193 Rim Valve. DS 650Rim Valve. DS 650
-
16732610084 Flanged Nut M10Flanged Nut M10
-
17705400136 Front Tire. DS BAJA 650 / DS BAJA 650 XFront Tire. DS BAJA 650 / DS BAJA 650 X
-
18705400140 Front Rim LH. DS 650 XFront Rim LH. DS 650 X
-
19705400193 Rim Valve. DS BAJA 650 / DS BAJA 650 XRim Valve. DS BAJA 650 / DS BAJA 650 X
-
20705400136 Front Tire. DS 650Front Tire. DS 650
-
21705400121 Front Rim. DS 650Front Rim. DS 650
-
22705400193 Rim Valve. DS 650Rim Valve. DS 650
-
23293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
