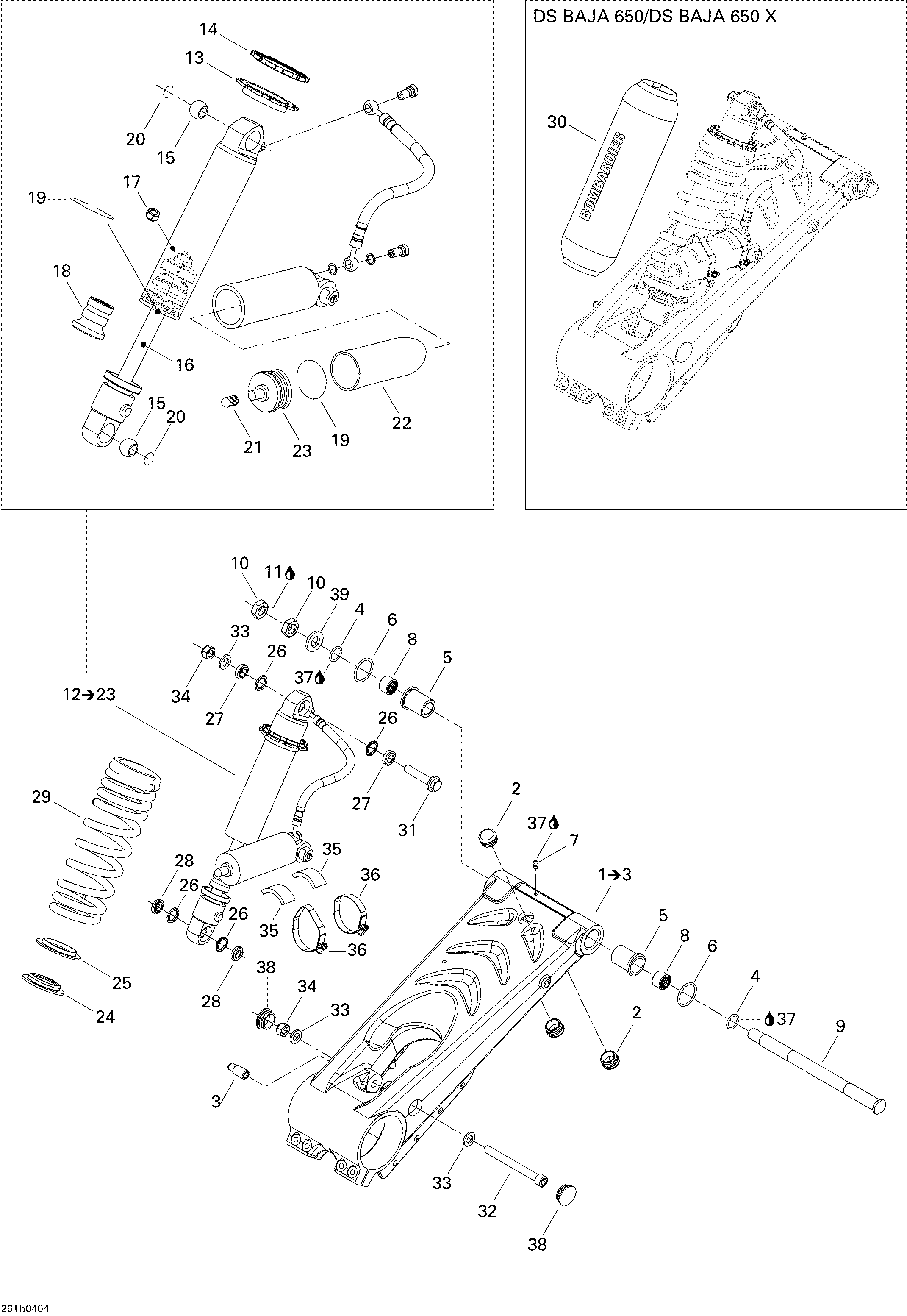

08- Rear Suspension для BRP DS 650/DS 650 Baja/X - 2004
-
№АртикулНазвание
-
1706000252 Swing Arm Ass'Y. INCLUDES ITEMS 1 TO 3Swing Arm Ass'Y. INCLUDES ITEMS 1 TO 3
-
2706200309 Plug 1-1/8''Plug 1-1/8''
-
3706000253 Guide SupportGuide Support
-
4293300074 O-RingO-Ring
-
5706000284 CushionCushion
-
6293300068 O-RingO-Ring
-
7408200700 Grease FittingGrease Fitting
-
8293350050 Needle BearingNeedle Bearing
-
9706000286 Pivot AxlePivot Axle
-
10232180411 Hex Jam Nut M18Hex Jam Nut M18
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12706000231 Rear Shock. INCLUDES ITEMS 12 TO 23Rear Shock. INCLUDES ITEMS 12 TO 23
-
13706000062 Spring StopperSpring Stopper
-
14706000082 Stopper RingStopper Ring
-
15706000105 Ball JointBall Joint
-
16706000230 Piston RodPiston Rod
-
17706000188 U-NutU-Nut
-
18706000189 Bumper PadBumper Pad
-
19706000190 Circlip 46mmCirclip 46mm
-
20706000191 Circlip 25.3 mmCirclip 25.3 mm
-
21706000192 Valve CapValve Cap
-
22706000193 ReservoirReservoir
-
23706000194 GuideGuide
-
24706000061 Spring StopperSpring Stopper
-
25706000060 Spring GuideSpring Guide
-
26293250111 SealSeal
-
27706000103 CushionCushion
-
28706000247 Inferior CushionInferior Cushion
-
29706000255 Spring (Red). DS 650Spring (Red). DS 650
-
706000270 Spring (Orange). DS BAJA 650Spring (Orange). DS BAJA 650
-
706000292 Spring (Red). DS BAJA 650 XSpring (Red). DS BAJA 650 X
-
30706000166 Protector. DS BAJA 650Protector. DS BAJA 650
-
706000293 Protector. DS BAJA 650 XProtector. DS BAJA 650 X
-
31250000095 Shock ScrewShock Screw
-
32231022087 Socket Head Screw M12 X 120Socket Head Screw M12 X 120
-
33234021410 Flat Washer 12 mmFlat Washer 12 mm
-
34232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
35293830083 ProtectorProtector
-
36514052859 Bride Serrage *Clamp-GearBride Serrage *Clamp-Gear
-
37293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
38706200308 Plug 1-1/4''Plug 1-1/4''
-
39250200019 WasherWasher
