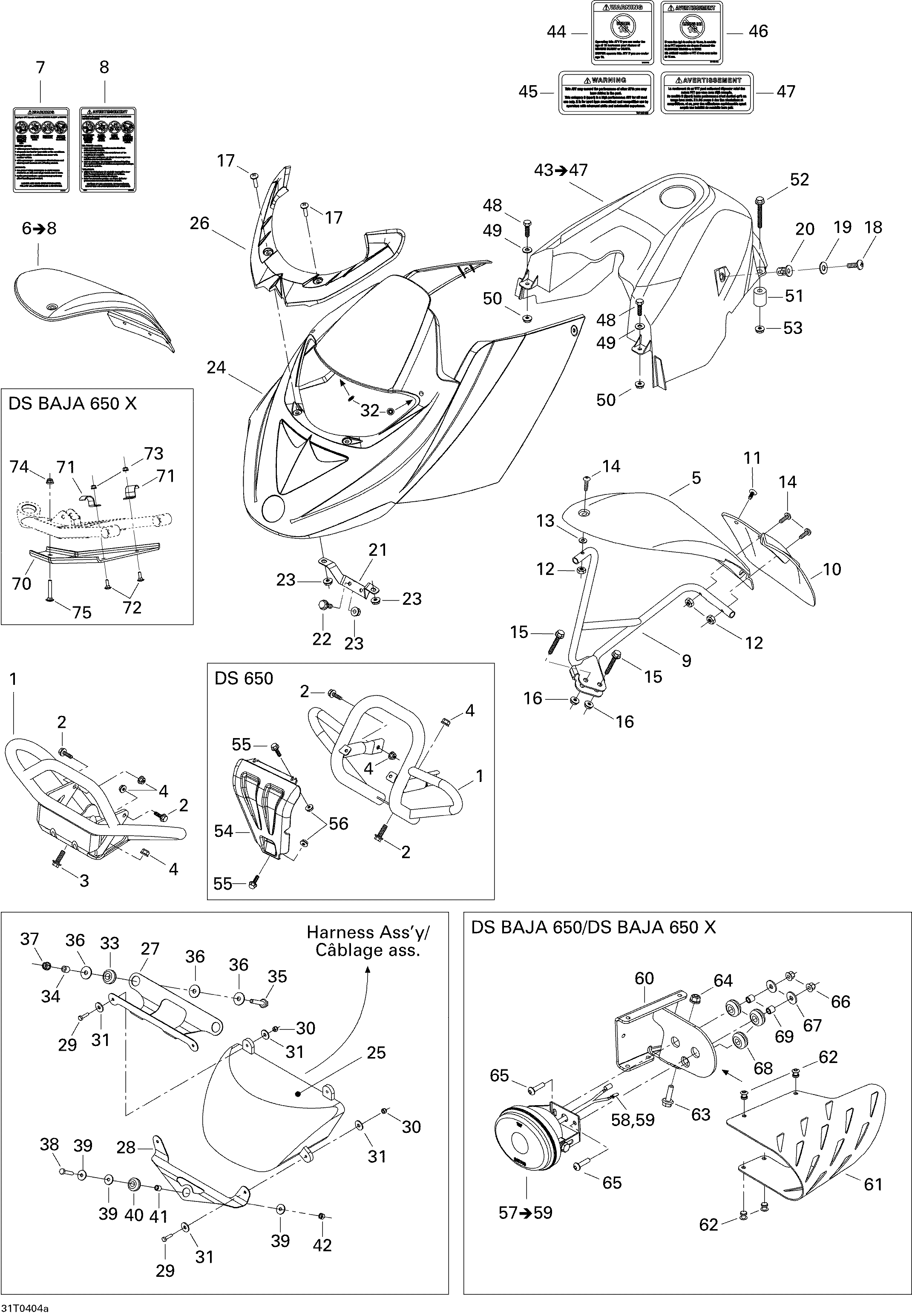

09- Body, Front View для BRP DS 650/DS 650 Baja/X - 2004
-
№АртикулНазвание
-
1705000142 Front Bumper. DS 650Front Bumper. DS 650
-
705000387 Front Bumper. DS BAJA 650 / DS BAJA 650 XFront Bumper. DS BAJA 650 / DS BAJA 650 X
-
2207682544 Hex Flanged Screw M8 X 25. DS 650Hex Flanged Screw M8 X 25. DS 650
-
207683044 Hex Flanged Screw M8 X 25. DS BAJA 650 / DS BAJA 650 XHex Flanged Screw M8 X 25. DS BAJA 650 / DS BAJA 650 X
-
3205482060 Socket Head Screw M8 X 20. DS BAJA 650 / DS BAJA 650 XSocket Head Screw M8 X 20. DS BAJA 650 / DS BAJA 650 X
-
4233281414 Hex Elastic Flanged Nut M8Hex Elastic Flanged Nut M8
-
5703500127 Front Fender Kit LH Black. DS 650 / DS BAJA 650 X / INCLUDES ITEMS 6 TO 8Front Fender Kit LH Black. DS 650 / DS BAJA 650 X / INCLUDES ITEMS 6 TO 8
-
703500160 LH Front Fender Kit. DS BAJA 650 / INCLUDES ITEMS 6 TO 8LH Front Fender Kit. DS BAJA 650 / INCLUDES ITEMS 6 TO 8
-
6705000360 RH Front Fender Kit. DS 650 / DS BAJA 650 XRH Front Fender Kit. DS 650 / DS BAJA 650 X
-
705000485 RH Front Fender Kit. DS BAJA 650RH Front Fender Kit. DS BAJA 650
-
7704900112 Warning Label (English) (Injuries/Death)Warning Label (English) (Injuries/Death)
-
8704900002 Warning Label (Death & Inguries)Warning Label (Death & Inguries)
-
9705001090 RH Fender SupportRH Fender Support
-
705001091 LH Fender SupportLH Fender Support
-
10705000095 RH MudguardRH Mudguard
-
705000096 LH MudguardLH Mudguard
-
11414939500 DartDart
-
12233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
13224061201 Flat WasherFlat Washer
-
14250000032 Screw M6 X 30Screw M6 X 30
-
15207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
16233281414 Hex Elastic Flanged Nut M8Hex Elastic Flanged Nut M8
-
17250000147 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
18250000043 Screw M6 X 20 (Scotch Grip)Screw M6 X 20 (Scotch Grip)
-
19506117300 BushingBushing
-
20732610057 Jack Nut M6Jack Nut M6
-
21705000146 Facia BracketFacia Bracket
-
22207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
23233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
24705000888 Front Fascia (Black). DS BAJA 650 / DS BAJA 650 XFront Fascia (Black). DS BAJA 650 / DS BAJA 650 X
-
705000889 Front Fascia (Red). DS 650Front Fascia (Red). DS 650
-
25705000805 HeadlampHeadlamp
-
25710000685 Bulb for HeadlampBulb for Headlamp
-
26705000806 Headlamp Cover. DS 650Headlamp Cover. DS 650
-
705000871 Headlamp Cover(Orange). DS BAJA 650Headlamp Cover(Orange). DS BAJA 650
-
705000986 Headlamp Cover (Yellow). DS BAJA 650 XHeadlamp Cover (Yellow). DS BAJA 650 X
-
27705000905 Superior Lamp BraketSuperior Lamp Braket
-
28705000904 Lamp SupportLamp Support
-
29207141644 Hex Screw M4 X 16Hex Screw M4 X 16
-
30232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
31234042600 Flat Washer M4Flat Washer M4
-
32732610072 Push NutPush Nut
-
33293720053 GrommetGrommet
-
34293900045 BushingBushing
-
35207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
36224061201 Flat WasherFlat Washer
-
37233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
38207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
39517124300 WasherWasher
-
40414036300 GrommetGrommet
-
41517245900 BushingBushing
-
42232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
43703500265 Tank Cover Kit. DS 650 / INCLUDES ITEMS 43 TO 47Tank Cover Kit. DS 650 / INCLUDES ITEMS 43 TO 47
-
703500335 Tank Cover Kit. DS BAJA 650 / DS BAJA 650 X / INCLUDES ITEMS 43 TO 47Tank Cover Kit. DS BAJA 650 / DS BAJA 650 X / INCLUDES ITEMS 43 TO 47
-
44704900113 Warning Label (English)( Under 16)Warning Label (English)( Under 16)
-
45704900089 Warning Label (English) (Performance/Vtt)Warning Label (English) (Performance/Vtt)
-
46704900012 Warning Label (Under 16 Years Old)Warning Label (Under 16 Years Old)
-
47704900105 Warning LabelWarning Label
-
48207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
49224061201 Flat WasherFlat Washer
-
50233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
51705000114 SpacerSpacer
-
52207686044 Hex Flanged Screw M8 X 60Hex Flanged Screw M8 X 60
-
53233281414 Hex Elastic Flanged Nut M8Hex Elastic Flanged Nut M8
-
54705000303 Protective Plate. DS 650Protective Plate. DS 650
-
55211000123 Truss Phillips Screw M6 X 20. DS 650Truss Phillips Screw M6 X 20. DS 650
-
56233261414 Hex Elastic Flanged Nut M6. DS 650Hex Elastic Flanged Nut M6. DS 650
-
57710000268 Headlamp. DS BAJA 650 / DS BAJA 650 X / INCLUDES ITEMS 57 TO 59Headlamp. DS BAJA 650 / DS BAJA 650 X / INCLUDES ITEMS 57 TO 59
-
58278001009 Female Terminal. DS BAJA 650 / DS BAJA 650 XFemale Terminal. DS BAJA 650 / DS BAJA 650 X
-
59278001007 Insulated Sheath. DS BAJA 650 / DS BAJA 650 XInsulated Sheath. DS BAJA 650 / DS BAJA 650 X
-
60705000397 RH Head Lamp Support. DS BAJA 650 / DS BAJA 650 XRH Head Lamp Support. DS BAJA 650 / DS BAJA 650 X
-
705000398 LH Head Lamp Support. DS BAJA 650 / DS BAJA 650 XLH Head Lamp Support. DS BAJA 650 / DS BAJA 650 X
-
61705000399 RH Head Lamp Protector. DS BAJA 650 / DS BAJA 650 XRH Head Lamp Protector. DS BAJA 650 / DS BAJA 650 X
-
705000400 LH Head Lamp Protector. DS BAJA 650 / DS BAJA 650 XLH Head Lamp Protector. DS BAJA 650 / DS BAJA 650 X
-
62390402000 Pop Rivet. DS BAJA 650 / DS BAJA 650 XPop Rivet. DS BAJA 650 / DS BAJA 650 X
-
63207662044 Hex. Flanged Screw M6 X 20. DS BAJA 650 / DS BAJA 650 XHex. Flanged Screw M6 X 20. DS BAJA 650 / DS BAJA 650 X
-
64233261414 Hex Elastic Flanged Nut M6. DS BAJA 650 / DS BAJA 650 XHex Elastic Flanged Nut M6. DS BAJA 650 / DS BAJA 650 X
-
65205452046 Socket Head Screw. DS BAJA 650 / DS BAJA 650 XSocket Head Screw. DS BAJA 650 / DS BAJA 650 X
-
66233251414 Hex Elastic Flanged Nut M5. DS BAJA 650 / DS BAJA 650 XHex Elastic Flanged Nut M5. DS BAJA 650 / DS BAJA 650 X
-
67391301600 Washer. DS BAJA 650 / DS BAJA 650 XWasher. DS BAJA 650 / DS BAJA 650 X
-
68414036300 Grommet. DS BAJA 650 / DS BAJA 650 XGrommet. DS BAJA 650 / DS BAJA 650 X
-
69517245900 Bushing. DS BAJA 650 / DS BAJA 650 XBushing. DS BAJA 650 / DS BAJA 650 X
-
70705001055 LH Protector. DS BAJA 650 XLH Protector. DS BAJA 650 X
-
705001056 RH Protector. DS BAJA 650 XRH Protector. DS BAJA 650 X
-
71705001057 Braket. DS BAJA 650 XBraket. DS BAJA 650 X
-
72207762044 Carriage Bolt M6 X 20. DS BAJA 650 XCarriage Bolt M6 X 20. DS BAJA 650 X
-
73233261414 Hex Elastic Flanged Nut M6. DS BAJA 650 XHex Elastic Flanged Nut M6. DS BAJA 650 X
-
74233281414 Hex Elastic Flanged Nut M8. DS BAJA 650 XHex Elastic Flanged Nut M8. DS BAJA 650 X
-
75207785044 Carriage Bolt M8 X 50. DS BAJA 650 XCarriage Bolt M8 X 50. DS BAJA 650 X
