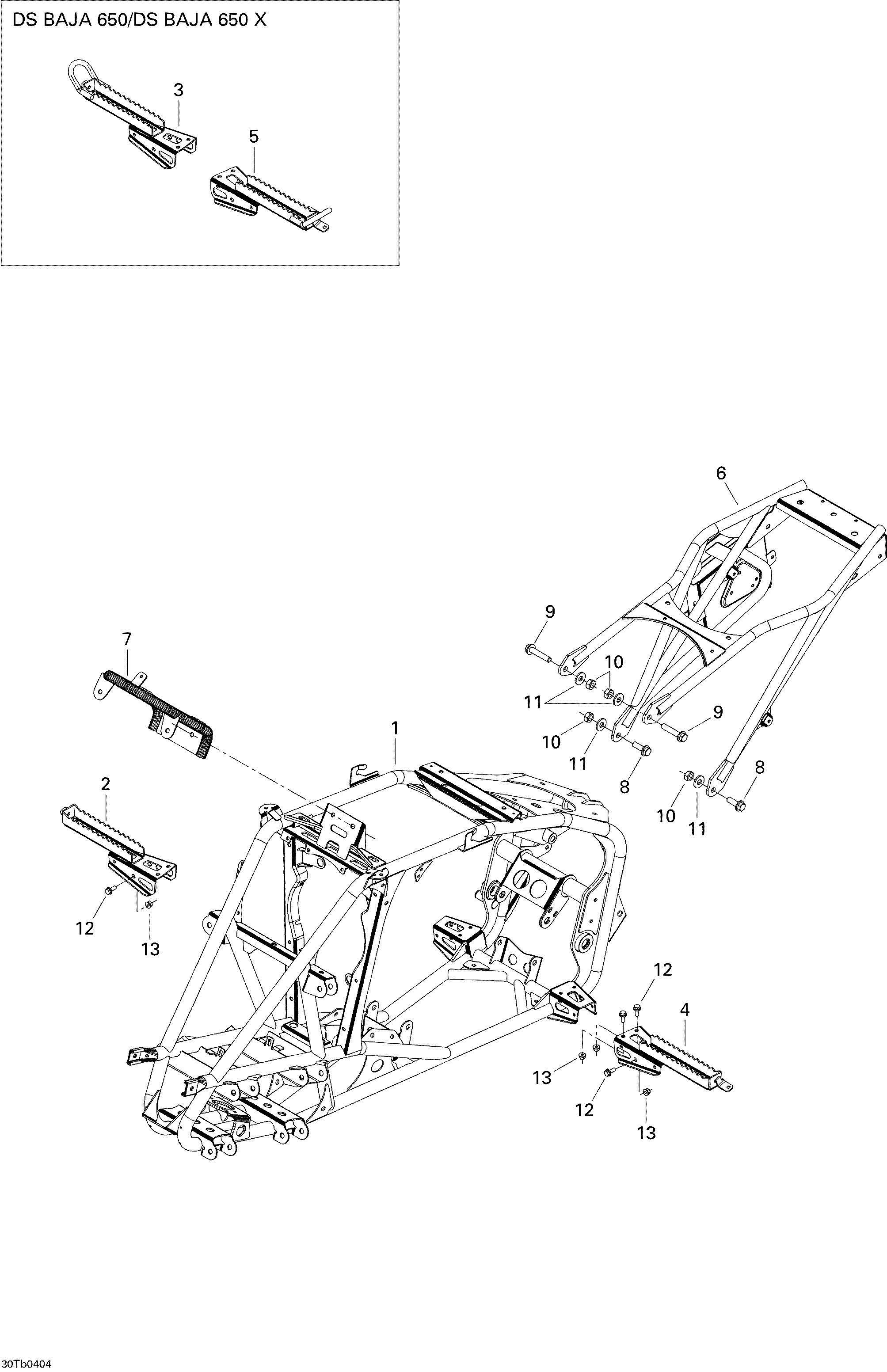

09- Frame для BRP DS 650/DS 650 Baja/X - 2004
-
№АртикулНазвание
-
1705200678 FrameFrame
-
2705200684 RH Footrest (Black). DS 650RH Footrest (Black). DS 650
-
3705200688 RH Footrest (Black). DS BAJA 650/DS BAJA 650 XRH Footrest (Black). DS BAJA 650/DS BAJA 650 X
-
4705200691 LH Footrest (Black). DS 650LH Footrest (Black). DS 650
-
5705200695 LH Footrest (Black). DS BAJA 650/DS BAJA 650 XLH Footrest (Black). DS BAJA 650/DS BAJA 650 X
-
6705200716 Frame ExtensionFrame Extension
-
7705200717 Box SupportBox Support
-
8207503087 Hex Flange Screw M10 X 30 (Scotch Grip)Hex Flange Screw M10 X 30 (Scotch Grip)
-
9207505087 Hex Flange Screw M10 X 50 (Scotch Grip)Hex Flange Screw M10 X 50 (Scotch Grip)
-
10232001487 Hex Nut M10Hex Nut M10
-
11224002251 FlatwasherFlatwasher
-
12207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
13233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
