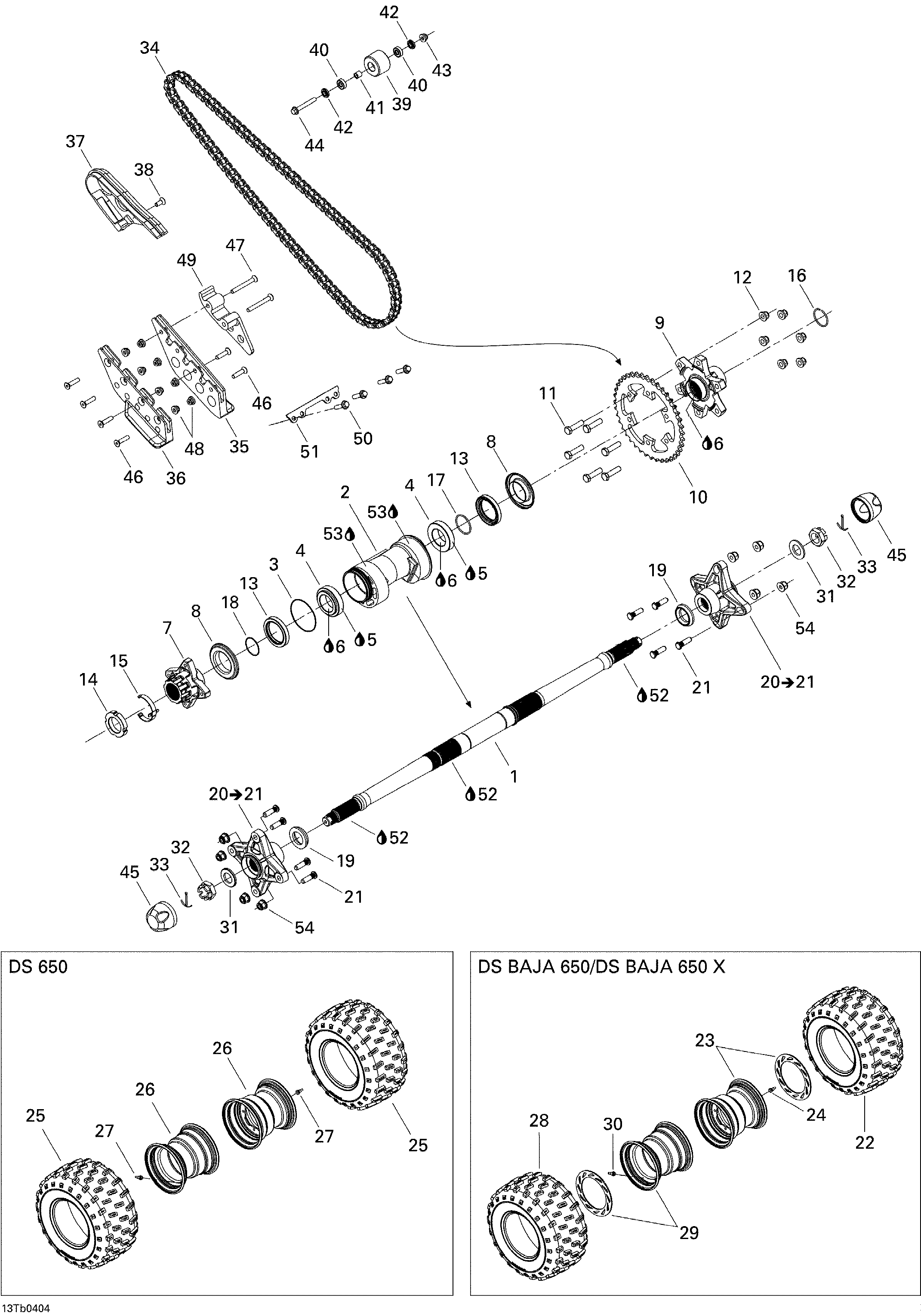

05- Drive System, Rear для BRP DS 650/DS 650 Baja/X - 2004
-
№АртикулНазвание
-
1705500387 Drive AxleDrive Axle
-
2705500388 Chain TightenerChain Tightener
-
3293300085 O-RingO-Ring
-
4293350043 Cone BearingCone Bearing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
7705500406 Brake HubBrake Hub
-
8705500408 Wear RingWear Ring
-
9705500344 Wheel HubWheel Hub
-
10705500390 Sprocket (40 Theeth)Sprocket (40 Theeth)
-
11207004046 Hex Screw M10 X 40Hex Screw M10 X 40
-
12233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
13293250115 Oil SealOil Seal
-
14250100037 Slotted Round Nuts M38Slotted Round Nuts M38
-
15250100038 Tab LockTab Lock
-
16705500108 Ring RetainerRing Retainer
-
17293300099 O-RingO-Ring
-
18293300100 O-RingO-Ring
-
19705500067 Ring SupportRing Support
-
20705500452 Rear Hub Ass'Y. INCLUDES ITEMS 20 TO 21Rear Hub Ass'Y. INCLUDES ITEMS 20 TO 21
-
21250000138 Wheel StudWheel Stud
-
22705500331 Rear Tire. DS BAJA 650 / DS BAJA 650 XRear Tire. DS BAJA 650 / DS BAJA 650 X
-
23705500332 RH Rear Rim. DS BAJA 650 / DS BAJA 650 XRH Rear Rim. DS BAJA 650 / DS BAJA 650 X
-
24705400193 Rim Valve. DS BAJA 650 / DS BAJA 650 XRim Valve. DS BAJA 650 / DS BAJA 650 X
-
25705500331 Rear Tire. DS 650Rear Tire. DS 650
-
26705500321 Rear Rims. DS 650Rear Rims. DS 650
-
27705400193 Rim Valve. DS 650Rim Valve. DS 650
-
28705500331 Rear Tire. DS BAJA 650 / DS BAJA 650 XRear Tire. DS BAJA 650 / DS BAJA 650 X
-
29705500336 LH Rear Rim. DS BAJA 650 / DS BAJA 650 XLH Rear Rim. DS BAJA 650 / DS BAJA 650 X
-
30705400193 Rim Valve. DS BAJA 650 / DS BAJA 650 XRim Valve. DS BAJA 650 / DS BAJA 650 X
-
31250200004 Hardened WasherHardened Washer
-
32250100006 Hex Castellated Nut M24Hex Castellated Nut M24
-
33211400011 Cotter PinCotter Pin
-
34705500413 ChainChain
-
35705500414 ProtectorProtector
-
36705500415 ProtectorProtector
-
37705500442 Shoe SliderShoe Slider
-
38205882044 Socket Head Screw M8 X 20 (Scotch Grip)Socket Head Screw M8 X 20 (Scotch Grip)
-
39705500368 Chain RollerChain Roller
-
40293350039 Ball BearingBall Bearing
-
41705500397 SpacerSpacer
-
42705500398 SpacerSpacer
-
43233281414 Hex Elastic Flanged Nut M8Hex Elastic Flanged Nut M8
-
44207686044 Hex Flanged Screw M8 X 60Hex Flanged Screw M8 X 60
-
45705400012 Wheel CapWheel Cap
-
46205383544 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
47205387044 Socket Head Screw M8 X 70Socket Head Screw M8 X 70
-
48233281414 Hex Elastic Flanged Nut M8Hex Elastic Flanged Nut M8
-
49705500116 ProtectorProtector
-
50207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
51705500443 SealSeal
-
52293550019 Grease, 60 GGrease, 60 G
-
53293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
54732610084 Flanged Nut M10Flanged Nut M10
