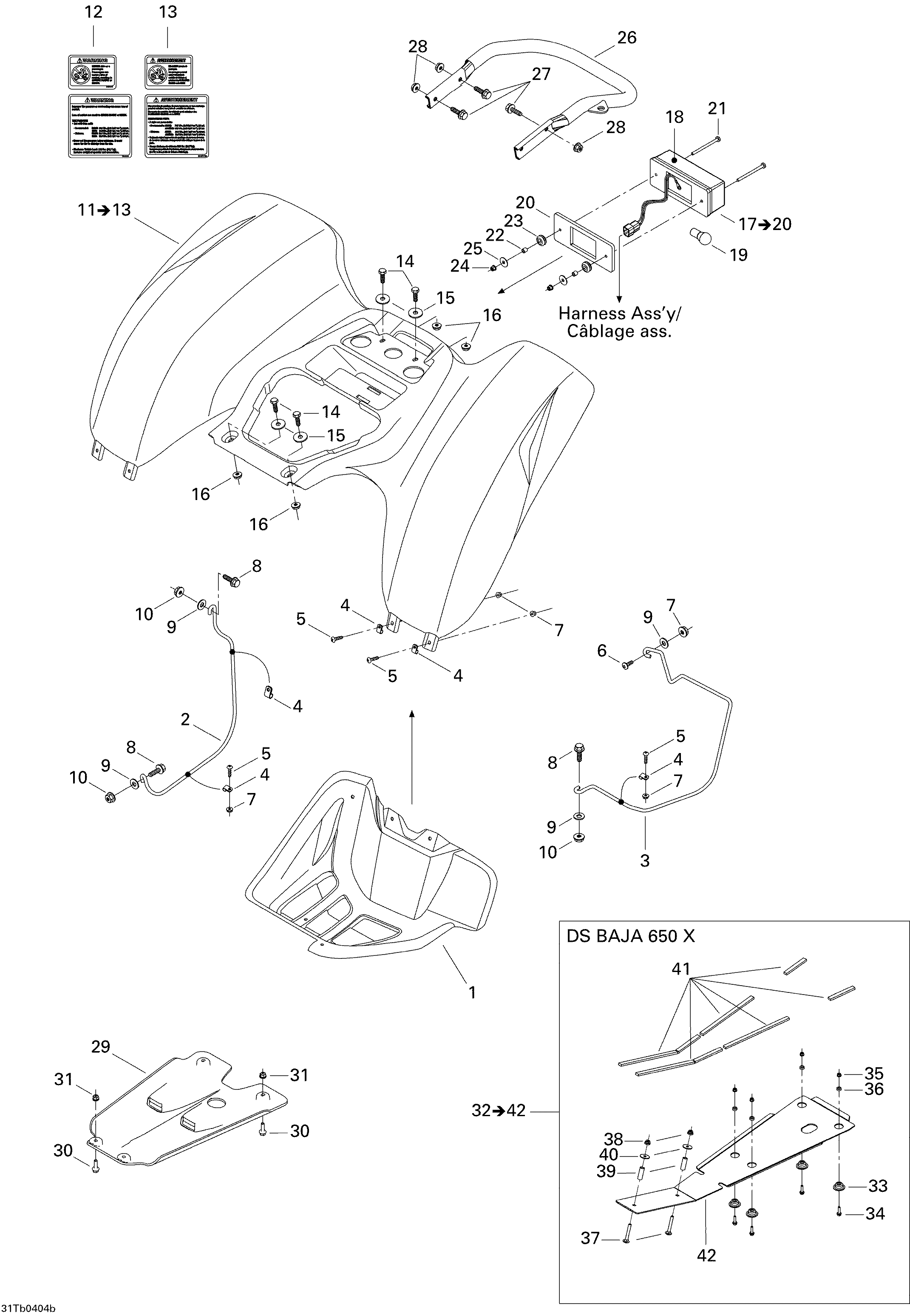

09- Body, Rear View для BRP DS 650/DS 650 Baja/X - 2004
-
№АртикулНазвание
-
1705000301 RH Foot ProtectorRH Foot Protector
-
705000302 LH Foot ProtectorLH Foot Protector
-
2705000639 RH SupportRH Support
-
705000642 LH SupportLH Support
-
3705000117 RH SupportRH Support
-
705000120 LH SupportLH Support
-
4293650150 Gear ClampGear Clamp
-
5211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
6250000032 Screw M6 X 30Screw M6 X 30
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
9224061201 Flat WasherFlat Washer
-
10233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
11703500125 Rear Fender Kit. DS 650 / DS BAJA 650 X / INCLUDES ITEMS 11 TO 13Rear Fender Kit. DS 650 / DS BAJA 650 X / INCLUDES ITEMS 11 TO 13
-
703500159 Rear Fender Kit. DS BAJA 650 / INCLUDES ITEMS 11 TO 13Rear Fender Kit. DS BAJA 650 / INCLUDES ITEMS 11 TO 13
-
12704900040 Warning Label Ass'Y (English) (Passenger And Tire Pressure)Warning Label Ass'Y (English) (Passenger And Tire Pressure)
-
13704900102 Warning LabelWarning Label
-
14207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
15224061201 Flat WasherFlat Washer
-
16233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
17710000102 Tail Light Housing. INCLUDES ITEMS 17 TO 20Tail Light Housing. INCLUDES ITEMS 17 TO 20
-
18710000055 Tail Light Lens (Red)Tail Light Lens (Red)
-
19410504100 Tail Light BulbTail Light Bulb
-
20710000129 GasketGasket
-
21208657041 Phillips Screw M5 X 70Phillips Screw M5 X 70
-
22517245900 BushingBushing
-
23414036300 GrommetGrommet
-
24233251414 Hex Elastic Flanged Nut M5Hex Elastic Flanged Nut M5
-
25224060201 Flat WasherFlat Washer
-
26705000143 Rear BumperRear Bumper
-
27207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
28233281414 Hex Elastic Flanged Nut M8Hex Elastic Flanged Nut M8
-
29705000304 Skid Plate. DS 650Skid Plate. DS 650
-
705000488 Skid Plate. DS BAJA 650Skid Plate. DS BAJA 650
-
30207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
32705001166 Protector Kit. DS BAJA 650 X / INCLUDES ITEMS 32 TO 42Protector Kit. DS BAJA 650 X / INCLUDES ITEMS 32 TO 42
-
33705200533 Cup. DS BAJA 650 XCup. DS BAJA 650 X
-
34207662544 Hex Flanged Screw M6 X 25. DS BAJA 650 XHex Flanged Screw M6 X 25. DS BAJA 650 X
-
35233261414 Hex Elastic Flanged Nut M6. DS BAJA 650 XHex Elastic Flanged Nut M6. DS BAJA 650 X
-
36293900028 Bushing. DS BAJA 650 XBushing. DS BAJA 650 X
-
37207786044 Carriage Bolt M8 X 60. DS BAJA 650 XCarriage Bolt M8 X 60. DS BAJA 650 X
-
38233281414 Hex Elastic Flanged Nut M8. DS BAJA 650 XHex Elastic Flanged Nut M8. DS BAJA 650 X
-
39293900051 Bushing. DS BAJA 650 XBushing. DS BAJA 650 X
-
40224081301 Flat Washer. DS BAJA 650 XFlat Washer. DS BAJA 650 X
-
41293200003 Seal (Meter). DS BAJA 650 XSeal (Meter). DS BAJA 650 X
-
42705001133 Motor Skid. DS BAJA 650 XMotor Skid. DS BAJA 650 X
