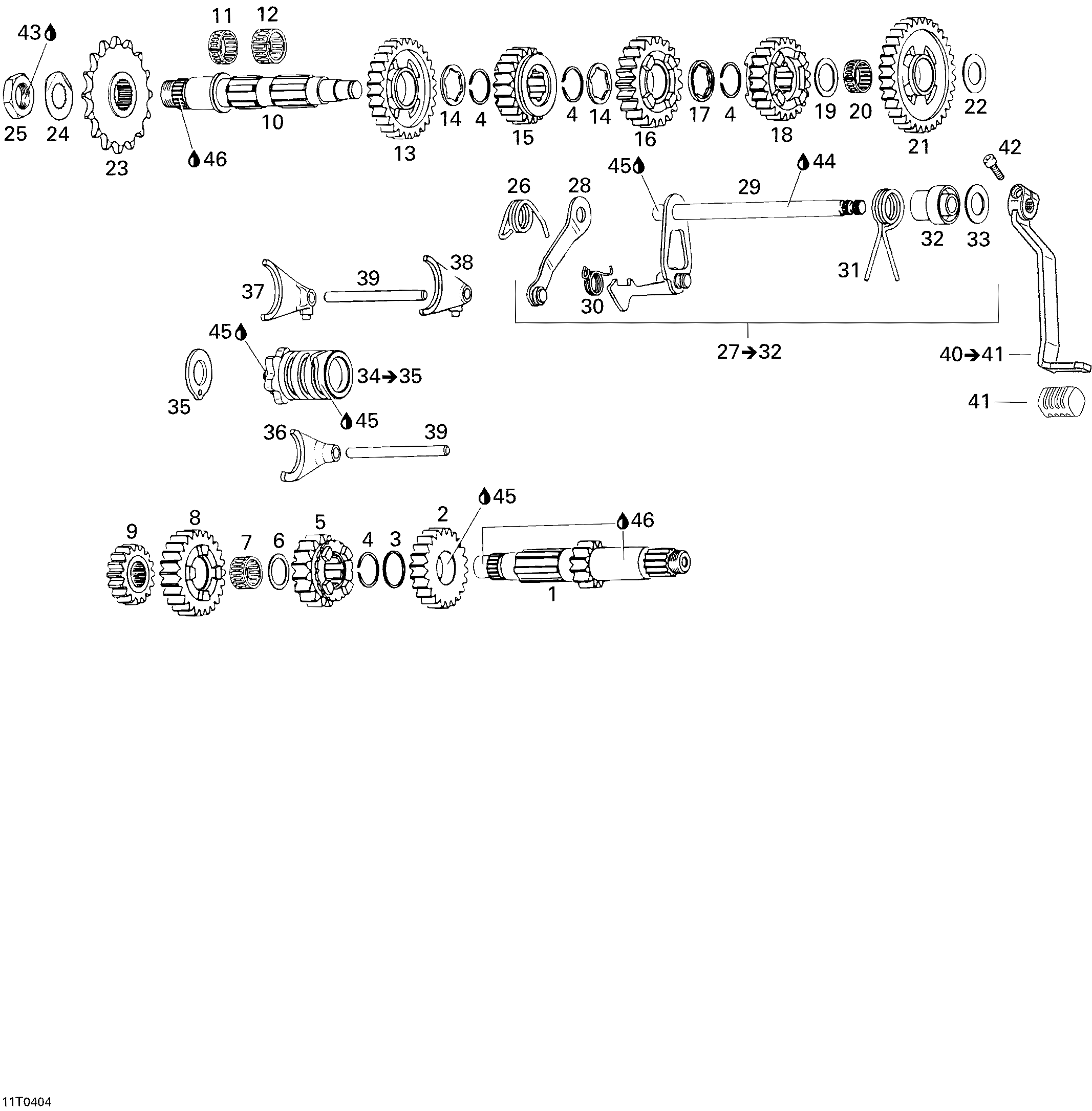

05- Transmission для BRP DS 650/DS 650 Baja/X - 2004
-
№АртикулНазвание
-
1420281410 Gear Set (1 Speed)Gear Set (1 Speed)
-
2420281416 Gear Set (4 Speed)Gear Set (4 Speed)
-
3420227825 Thrust WasherThrust Washer
-
4420445300 CirclipCirclip
-
5420281414 Gear Set (3 Speed)Gear Set (3 Speed)
-
6420227445 Thrust WasherThrust Washer
-
7420232805 Needle BearingNeedle Bearing
-
8420281418 Gear Set (5 Speed)Gear Set (5 Speed)
-
9420281412 Gear Set (2 Speed)Gear Set (2 Speed)
-
10420220730 Main ShaftMain Shaft
-
11420232520 Needle BearingNeedle Bearing
-
12420232530 Needle BearingNeedle Bearing
-
14420627051 Thrust RingThrust Ring
-
17420627061 Angular RingAngular Ring
-
19420244100 Thrust WasherThrust Washer
-
20420232742 Needle BearingNeedle Bearing
-
22420227430 Thrust WasherThrust Washer
-
23420236470 Chain WheelChain Wheel
-
24420245391 Tab WasherTab Washer
-
25420242651 Nut M20Nut M20
-
26420239095 Index SpringIndex Spring
-
27420620230 Shift-Shaft Ass'Y. INCLUDES ITEMS 27 TO 33Shift-Shaft Ass'Y. INCLUDES ITEMS 27 TO 33
-
28420248346 Index LeverIndex Lever
-
29420237929 Shift-ShaftShift-Shaft
-
30420239075 SpringSpring
-
31420239084 SpringSpring
-
32420247900 SpacerSpacer
-
33420227430 Thrust WasherThrust Washer
-
34420258275 Drum-Shift. INCLUDES ITEMS 34 TO 35Drum-Shift. INCLUDES ITEMS 34 TO 35
-
35420227562 Isolating WasherIsolating Washer
-
36420258038 Fork-ShiftFork-Shift
-
37420258028 Fork-ShiftFork-Shift
-
38420258018 Fork-ShiftFork-Shift
-
39420258782 Fork SpindleFork Spindle
-
40420248317 Gearshift Lever. INCLUDES ITEMS 40 TO 41Gearshift Lever. INCLUDES ITEMS 40 TO 41
-
41420260205 Rubber SleeveRubber Sleeve
-
43293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
44293550030 Grease, Super LubeGrease, Super Lube
-
45293600039 Engine Oil 4 Strokes, 5W40, 12 X 1 LitersEngine Oil 4 Strokes, 5W40, 12 X 1 Liters
-
46420899271 Petamo Grease, Ghy133N, 400 GPetamo Grease, Ghy133N, 400 G
