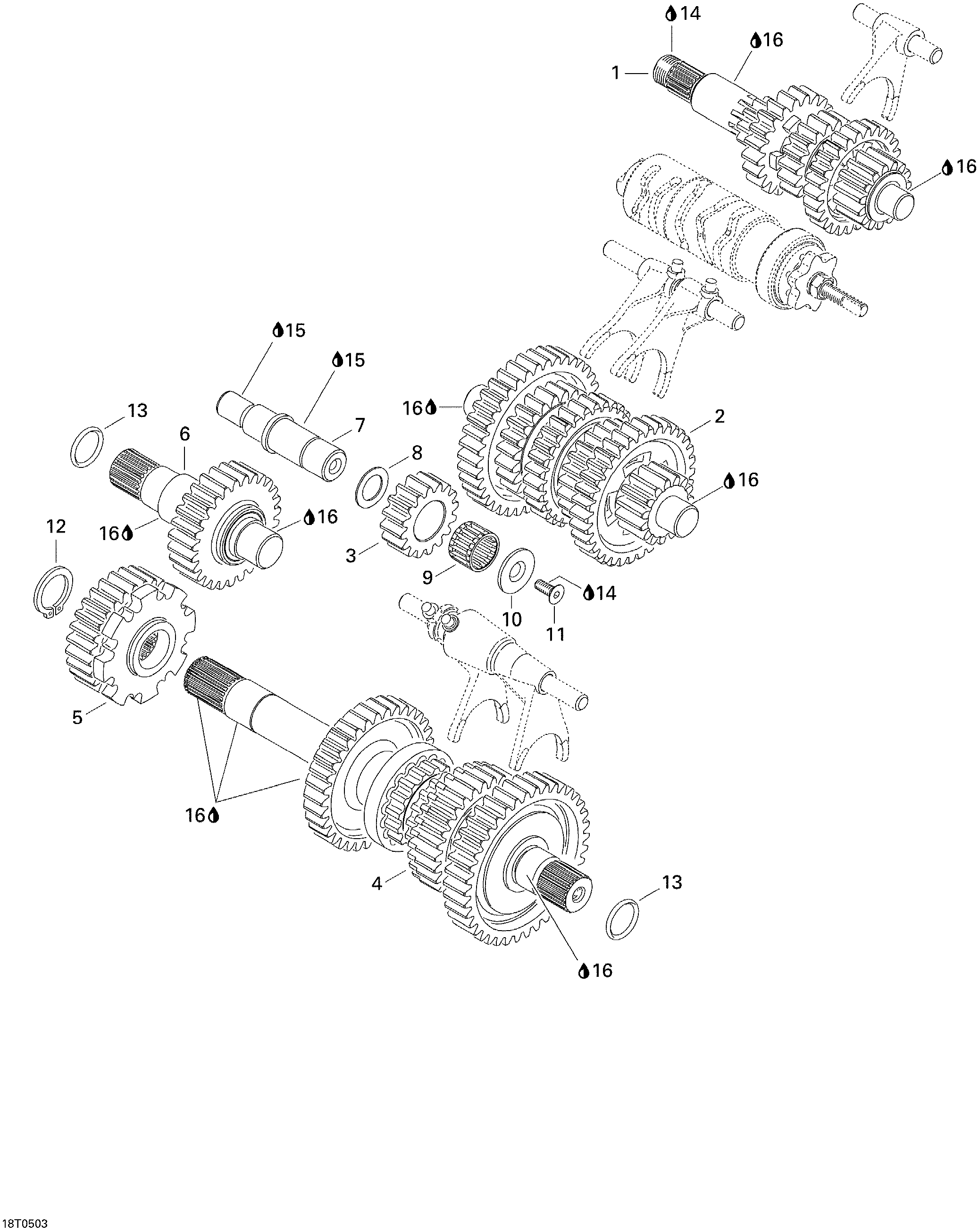

05- Transmission для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1420220487 CountershaftCountershaft
-
2420220509 Main Shaft Ass'YMain Shaft Ass'Y
-
3420634890 Sliding GearSliding Gear
-
4420220497 Rear Output ShaftRear Output Shaft
-
5420634925 Output Gear 28 TeethOutput Gear 28 Teeth
-
6420220522 Front Output ShaftFront Output Shaft
-
7420220570 Intermediate Gear ShaftIntermediate Gear Shaft
-
8420227440 Thrust WasherThrust Washer
-
9420632230 Needle CageNeedle Cage
-
10420244270 Stop WasherStop Washer
-
11420941430 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
12420945870 CirclipCirclip
-
13420430370 O-RingO-Ring
-
14293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
15420297433 Molykote G-n, 50 GMolykote G-n, 50 G
-
16420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
