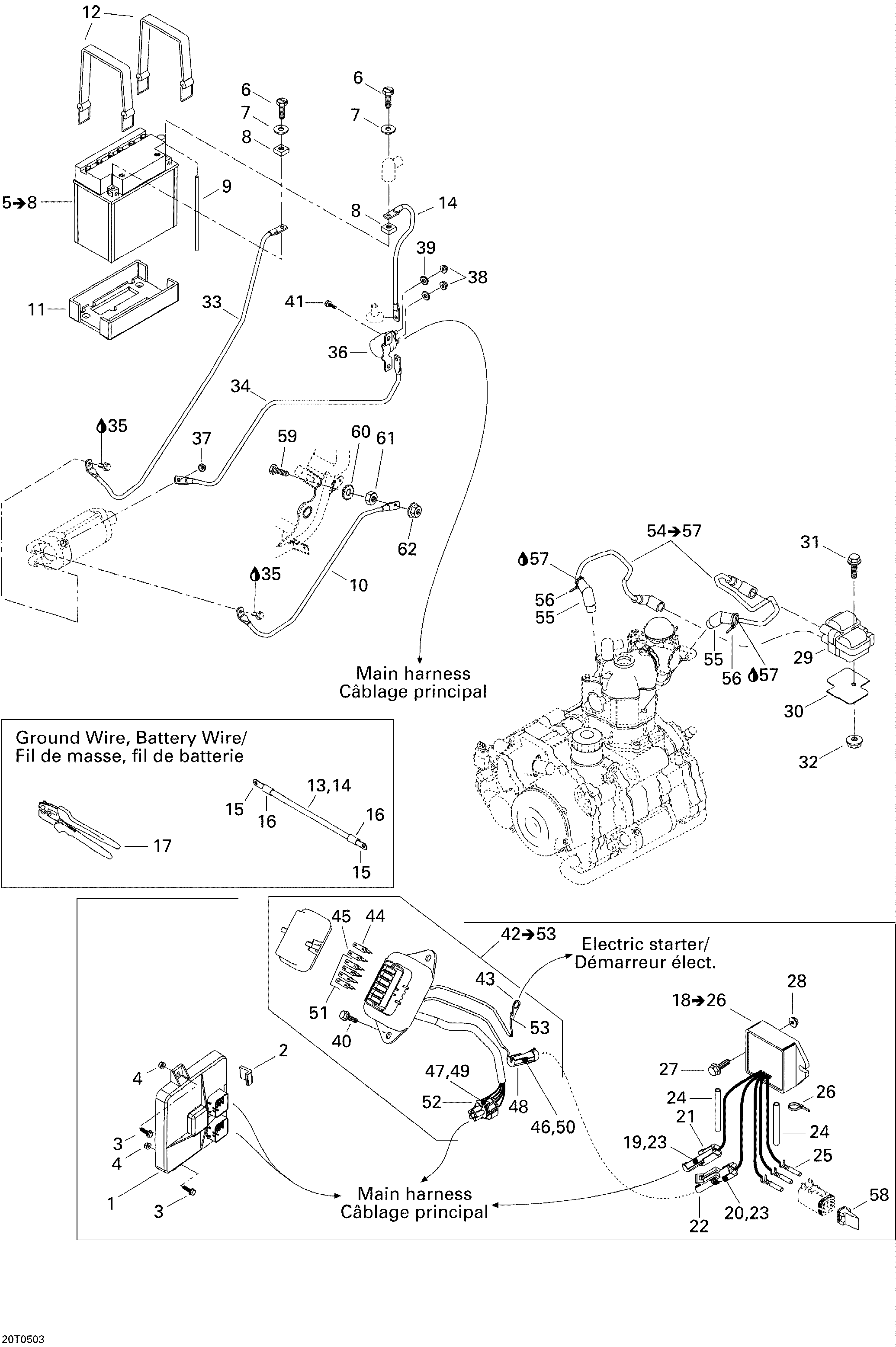

10- Electrical System для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1710000597 Electronic ModuleElectronic Module
-
2278001166 Module ProtectorModule Protector
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
5278001756 Battery. Includes 5 to 8Battery. Includes 5 to 8
-
6207161644 Battery Hex ScrewBattery Hex Screw
-
7211200018 Flat Washer 6 mmFlat Washer 6 mm
-
8232061414 Hex Nut M6Hex Nut M6
-
9415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
10710000022 Battery Ground CableBattery Ground Cable
-
11278001976 Lower Battery PadLower Battery Pad
-
12293850080 Rubber StrapRubber Strap
-
13278001680 Ground Cable Battery (no 6) (meter)Ground Cable Battery (no 6) (meter)
-
14278001690 Cable Battery (no 6) (meter)Cable Battery (no 6) (meter)
-
15278001682 Terminal 45° (small Hole)Terminal 45° (small Hole)
-
15278001683 Terminal 45° (Small Hole)Terminal 45° (Small Hole)
-
15278001684 Terminal 90° (small Hole)Terminal 90° (small Hole)
-
15278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
15278001686 Terminal 45° (big Hole)Terminal 45° (big Hole)
-
15278001687 Terminal 90° (big Hole)Terminal 90° (big Hole)
-
15278001688 Flat TerminalFlat Terminal
-
15278001776 Terminal 30° (2 Holes)Terminal 30° (2 Holes)
-
16278001692 Heat ShrinkHeat Shrink
-
17529035730 Crimp PlierCrimp Plier
-
18710000169 Volt Regulator Ass'y. Includes 18 to 26Volt Regulator Ass'y. Includes 18 to 26
-
19278000222 Female TerminalFemale Terminal
-
20278000223 Female TerminalFemale Terminal
-
21278000161 Female Terminal Housing (1 Circ.)Female Terminal Housing (1 Circ.)
-
22278000219 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
23278000218 Wire SealWire Seal
-
24409901300 Low Temperature Vinyl TubingLow Temperature Vinyl Tubing
-
25710000034 Female TerminalFemale Terminal
-
26293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
27207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
28233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
29278001546 Ignition CoilIgnition Coil
-
30710000073 Insulator PadInsulator Pad
-
31207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
32233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
33710000211 Engine Ground CableEngine Ground Cable
-
34710000136 Starter Positive CableStarter Positive Cable
-
35293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
36515176011 Starter RelayStarter Relay
-
37232561600 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
38232061414 Hex Nut M6Hex Nut M6
-
39234161601 Lock Washer Helical M6Lock Washer Helical M6
-
40210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
41250000061 Hex Self-Threaded Screw 1/4-20 X 3/4Hex Self-Threaded Screw 1/4-20 X 3/4
-
42710000579 Fuse Holder Ass'y. Includes 42 to 53Fuse Holder Ass'y. Includes 42 to 53
-
43278001392 Open BarrelOpen Barrel
-
44410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
45409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
46409004300 Male TerminalMale Terminal
-
47409007300 Female TerminalFemale Terminal
-
48278000161 Female Terminal Housing (1 Circ.)Female Terminal Housing (1 Circ.)
-
49278000218 Wire SealWire Seal
-
50710000048 Wire SealWire Seal
-
51278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
52710000106 Female Terminal Housing (5 Circ.)Female Terminal Housing (5 Circ.)
-
53710000482 Shrink TubingShrink Tubing
-
54710000039 Spark Wire Ass'Y. Includes 54 to 57Spark Wire Ass'Y. Includes 54 to 57
-
55710000041 Spark Plug Cap (Black)Spark Plug Cap (Black)
-
56293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
57293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
58278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
59207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
-
60234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
61232061414 Hex Nut M6Hex Nut M6
-
62233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
