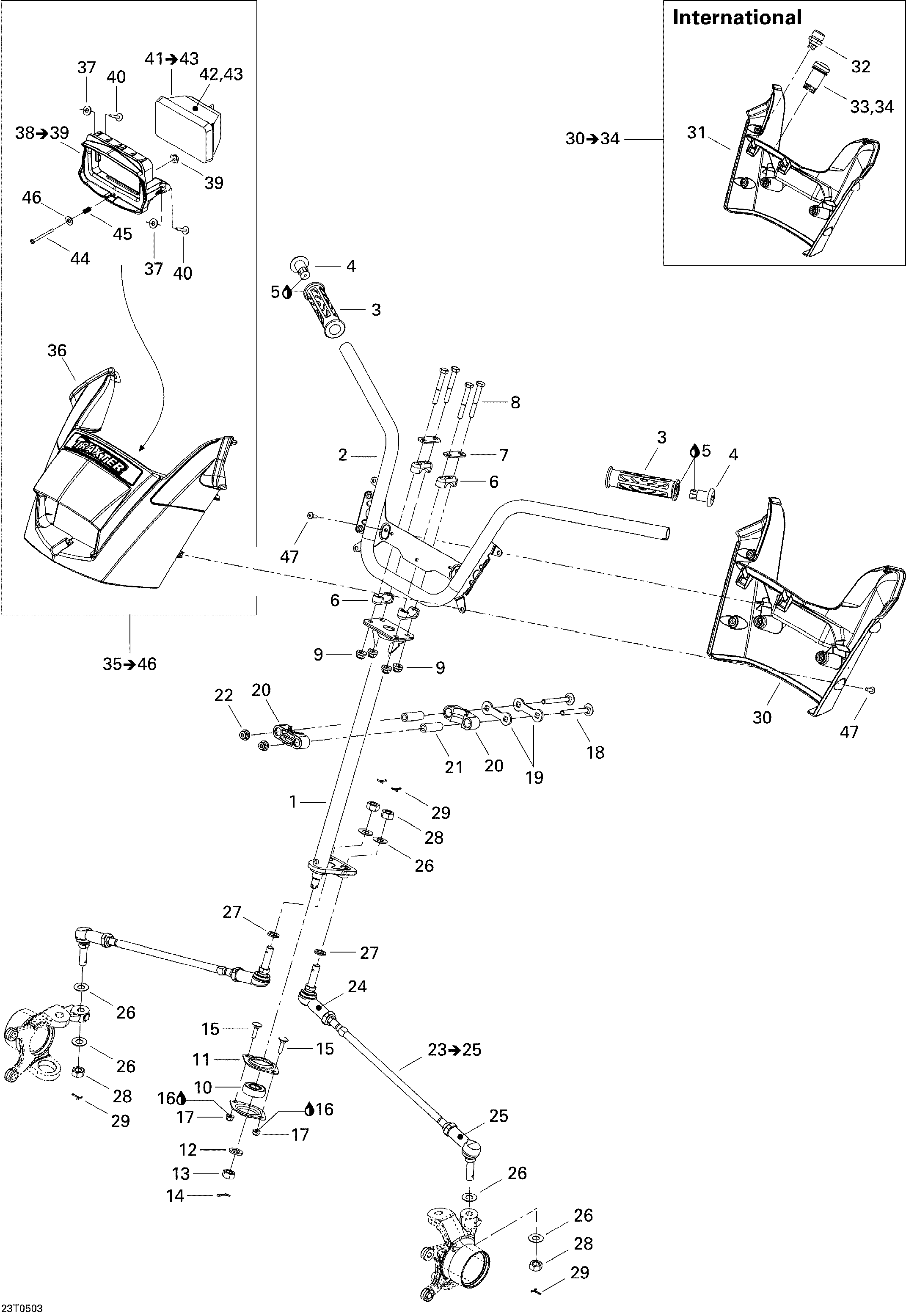

07- Steering System для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1709400305 Main Tube (black)Main Tube (black)
-
2709400300 Handle BarHandle Bar
-
3709400157 Grip (black)Grip (black)
-
4709400189 End PieceEnd Piece
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6506151622 Steering SupportSteering Support
-
7506151196 ReinforcementReinforcement
-
8207086046 Hex Screw M8 X 60Hex Screw M8 X 60
-
9233281416 Elastic Flange Nut M8Elastic Flange Nut M8
-
10709400224 Thrust BearingThrust Bearing
-
11709400152 Thrust WasherThrust Washer
-
12234021410 Flat Washer 12 mmFlat Washer 12 mm
-
13250100045 Nut M12Nut M12
-
14211400017 Cotter PinCotter Pin
-
15207762544 Carriage Bolt M6 X 25Carriage Bolt M6 X 25
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
18207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
19506150600 Stopper PlateStopper Plate
-
20709400034 Half-HousingHalf-Housing
-
21506150500 Housing BushingHousing Bushing
-
22233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
23709400240 Tie Rod Ass'y. Includes 23 to 25Tie Rod Ass'y. Includes 23 to 25
-
24709400241 RH Ball JointRH Ball Joint
-
25709400242 LH Ball JointLH Ball Joint
-
26706200281 Hard WasherHard Washer
-
27503189276 WasherWasher
-
28250100045 Nut M12Nut M12
-
29211400013 Cotter PinCotter Pin
-
30709400252 Rear Steering CoverRear Steering Cover
-
30709400336 Rear Steering Cover Ass'y. International / Includes 30 to 34Rear Steering Cover Ass'y. International / Includes 30 to 34
-
31709400252 Rear Steering CoverRear Steering Cover
-
32415101200 Push ButtonPush Button
-
33710000367 Emergency SwitchEmergency Switch
-
34710000661 Emergency Switch LightEmergency Switch Light
-
35709400334 Front Steering Cover Ass'y. Includes 35 to 46Front Steering Cover Ass'y. Includes 35 to 46
-
37250200025 Washer M5Washer M5
-
38709400296 Light Stand Ass'y. Includes 38 to 39Light Stand Ass'y. Includes 38 to 39
-
39250100030 Nut ''t'' Type M4Nut ''t'' Type M4
-
40250000101 Plastite Screw Type K-40 M4 X 25Plastite Screw Type K-40 M4 X 25
-
41710000712 Central Headlamp Ass'y. Includes 41 to 43Central Headlamp Ass'y. Includes 41 to 43
-
42705000284 Lamp HousingLamp Housing
-
43710000762 BulbBulb
-
45517168600 SpringSpring
-
46250200025 Washer M5Washer M5
-
47250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
