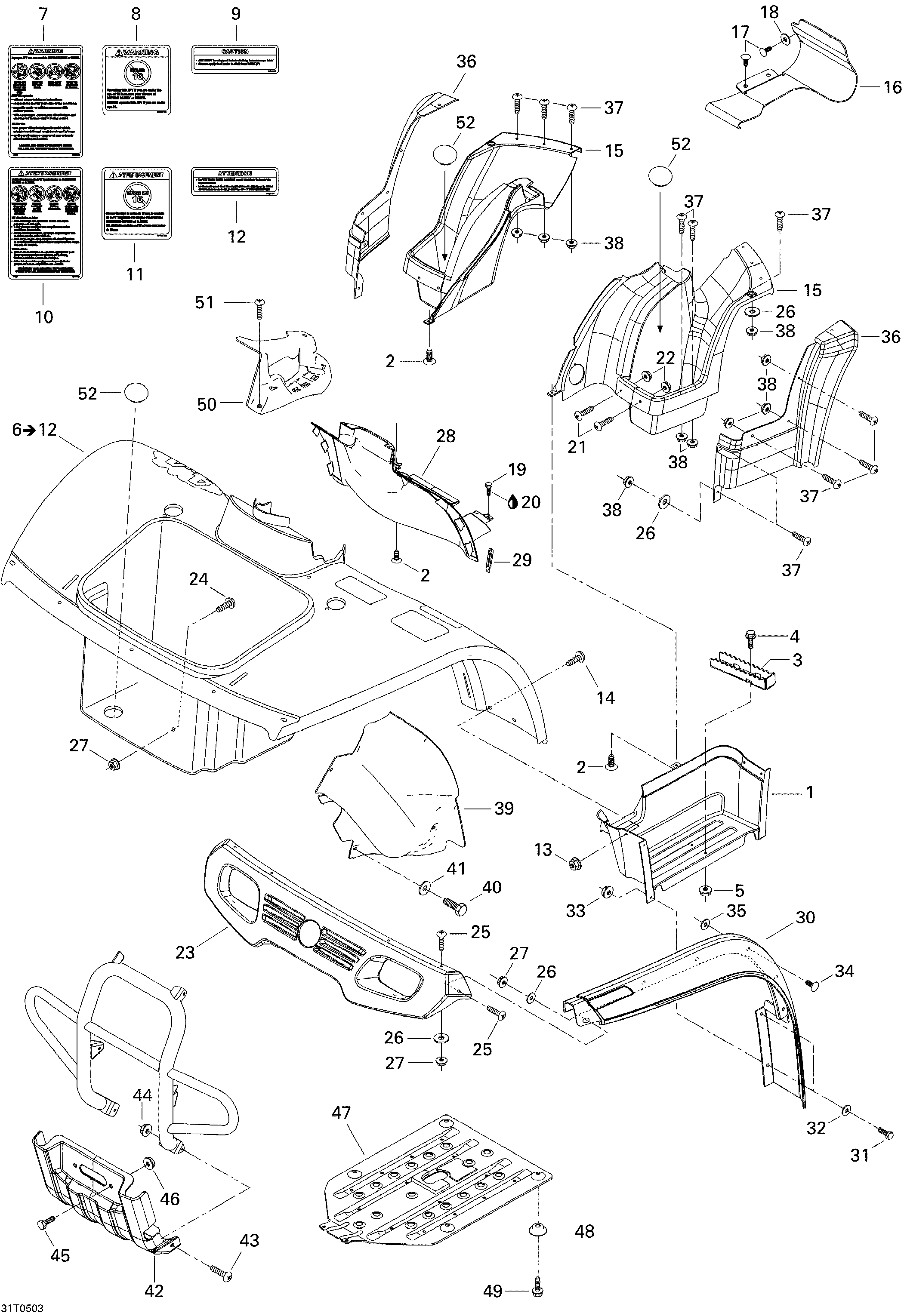

09- Body And Accessories для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1705000017 RH Footboard (black)RH Footboard (black)
-
1705000018 LH Footboard (black)LH Footboard (black)
-
2293730011 Dart (Black)Dart (Black)
-
3705001083 Footrest (black)Footrest (black)
-
4207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
5233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
6703500393 Front Fender (green). Includes 6 to 12Front Fender (green). Includes 6 to 12
-
7704900001 Warning Label (death And Injuries)Warning Label (death And Injuries)
-
8704900011 Warning Label (under 16 Years Old)Warning Label (under 16 Years Old)
-
9704900007 Warning Label (transmission Selector)Warning Label (transmission Selector)
-
10704900002 Warning Label (death And Injuries)Warning Label (death And Injuries)
-
11704900012 Warning Label (under 16 Years Old)Warning Label (under 16 Years Old)
-
12704900008 Warning Label (transmission Selector)Warning Label (transmission Selector)
-
13233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
14211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
15705000842 RH Rear FenderRH Rear Fender
-
15705000843 LH Rear FenderLH Rear Fender
-
16705000413 Air ShieldAir Shield
-
17390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
18391301600 WasherWasher
-
19207661244 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
20293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
22233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
23705000011 Front Fascia (black)Front Fascia (black)
-
24211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
25211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
26224060201 Flat WasherFlat Washer
-
27233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
28705000010 Tank CoverTank Cover
-
29570023800 Windshield LatchWindshield Latch
-
30705001576 LH Front MudguardLH Front Mudguard
-
30705001577 RH Front MudguardRH Front Mudguard
-
31207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
-
32224060201 Flat WasherFlat Washer
-
33233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
34293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
35234082410 Flat Washer 8 mmFlat Washer 8 mm
-
36705000224 LH ProtectorLH Protector
-
36705000225 RH ProtectorRH Protector
-
37211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
38233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
39705000133 LH Tank ProtectorLH Tank Protector
-
39705000134 RH Tank ProtectorRH Tank Protector
-
40210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
41224061201 Flat WasherFlat Washer
-
42705000135 Front Protection Plate (black)Front Protection Plate (black)
-
43211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
44233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
45207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
46233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
47705200535 Skid PlateSkid Plate
-
48705200533 CupCup
-
49207581646 Flanged Screw M8 X 16 (Scotch Grip)Flanged Screw M8 X 16 (Scotch Grip)
-
50705000081 Lever IndicatorLever Indicator
-
51414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
52570041600 Rubber CoverRubber Cover
