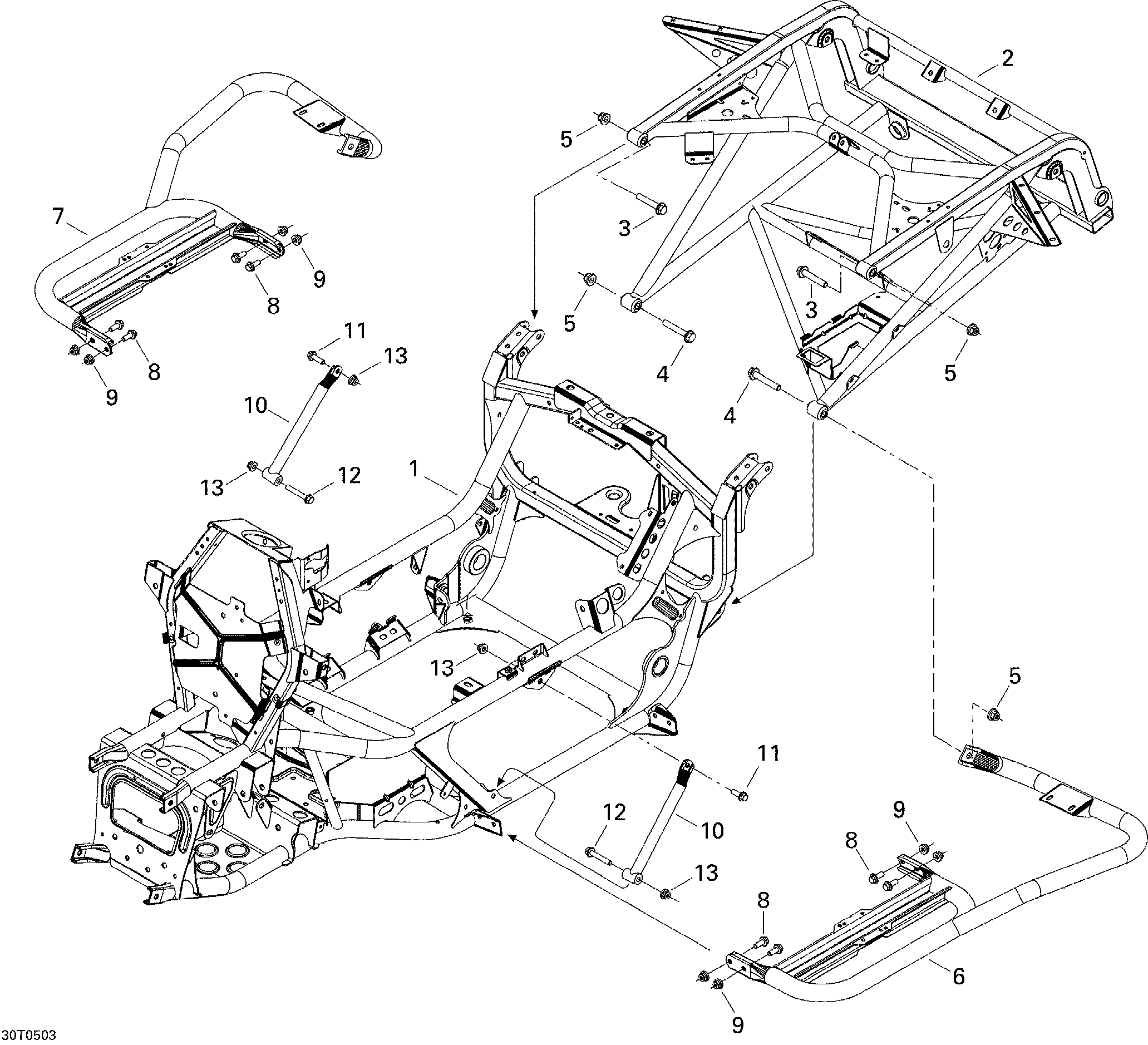

09- Frame, System для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1705201037 Frame (Black)Frame (Black)
-
2705200825 Frame Extention (Black)Frame Extention (Black)
-
3207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
4207606044 Hex Flange Screw M10 X 60Hex Flange Screw M10 X 60
-
5233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
6705200887 LH Footrest (Black)LH Footrest (Black)
-
7705200888 RH Footrest (Black)RH Footrest (Black)
-
8207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
9233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
10705200143 Removable Brace (Black)Removable Brace (Black)
-
11207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
12207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
13233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
