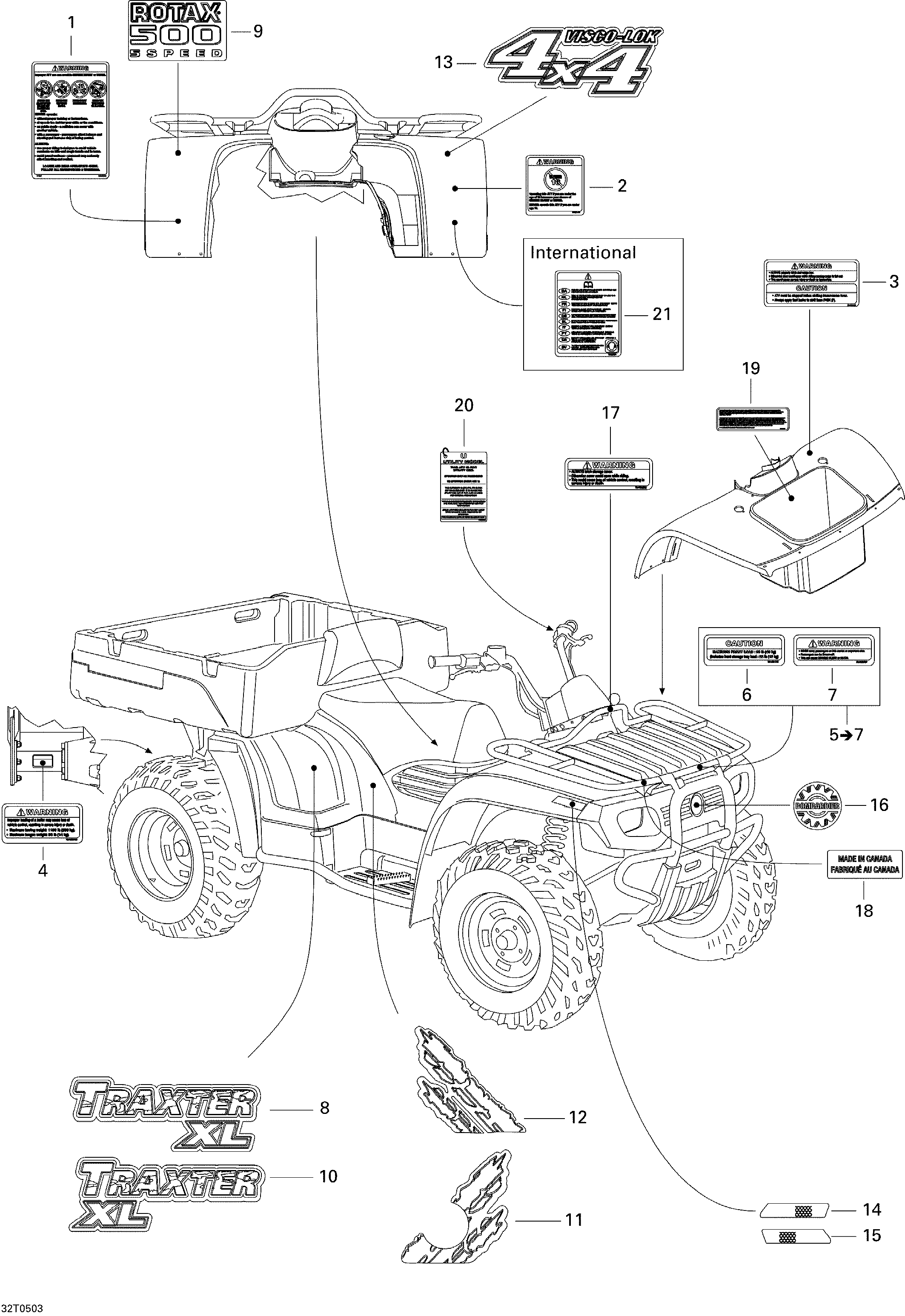

09- Decals для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1704900001 Warning Label (death And Injuries). English VersionWarning Label (death And Injuries). English Version
-
2704900011 Warning Label (under 16 Years Old). English VersionWarning Label (under 16 Years Old). English Version
-
3704900808 Warning Label. English VersionWarning Label. English Version
-
4704900766 Warning Label (hitch). English VersionWarning Label (hitch). English Version
-
5704900799 Warning Label (front Load). Includes 5 to 7. English VersionWarning Label (front Load). Includes 5 to 7. English Version
-
8704900588 RH Rear Fender DecalRH Rear Fender Decal
-
9704900898 Rotax 500 LabelRotax 500 Label
-
10704900587 LH Rear Fender DecalLH Rear Fender Decal
-
11704900853 LH Rear Fender DecalLH Rear Fender Decal
-
12704900820 RH Rear Fender DecalRH Rear Fender Decal
-
13704900544 RH Front LabelRH Front Label
-
14705000026 RH Front ReflectorRH Front Reflector
-
15705000083 LH Front ReflectorLH Front Reflector
-
16704900849 Logo «bombardier» (68 mm)Logo «bombardier» (68 mm)
-
17704900800 Warning Label (cover Latch). English VersionWarning Label (cover Latch). English Version
-
18704900267 «canada» Decal«canada» Decal
-
19704900597 ATV Patent Marking DecalATV Patent Marking Decal
-
20704900928 Warning Label (utility). English VersionWarning Label (utility). English Version
-
21704900894 Label (mutilingual). InternationalLabel (mutilingual). International
