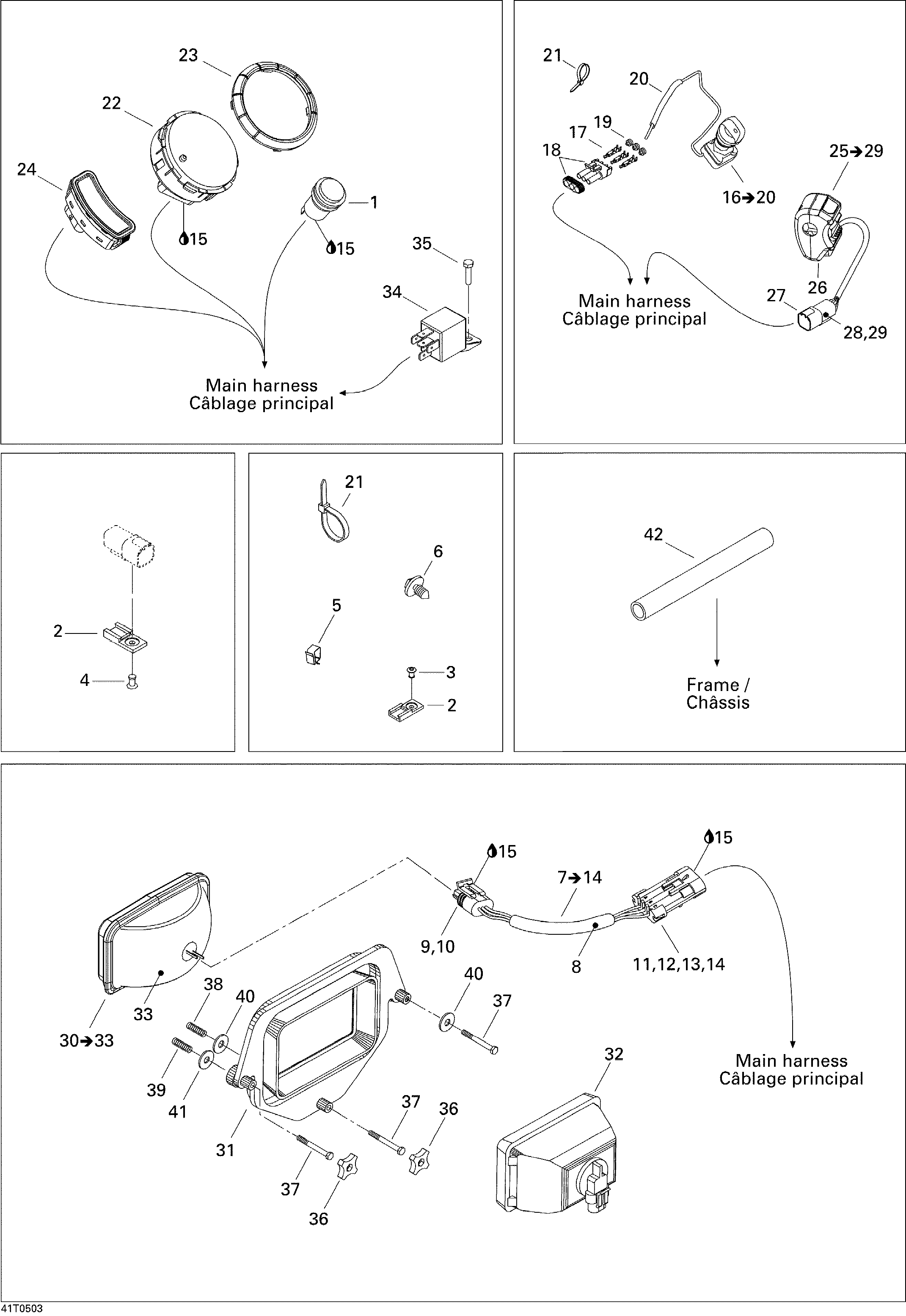

10- Electrical Accessories для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1861507200 Outlet (12 Volts)Outlet (12 Volts)
-
2270000141 ClipClip
-
3390402400 Pop-rivet 3/16''Pop-rivet 3/16''
-
4390402200 Pop-rivet 3/16''Pop-rivet 3/16''
-
5414227300 ClipClip
-
6293730018 Mount DartMount Dart
-
7710000720 Beam Adaptor Ass'y. Includes 7 to 14Beam Adaptor Ass'y. Includes 7 to 14
-
8515175332 Vinyl Tubing (low Temperature)Vinyl Tubing (low Temperature)
-
9278001114 Female TerminalFemale Terminal
-
10278001467 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
11710000643 SealSeal
-
12710000642 LockLock
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16710000192 Ignition Switch Ass'y. Includes 16 to 20Ignition Switch Ass'y. Includes 16 to 20
-
16710000192 Ignition Switch Ass'y. Includes 16 to 20Ignition Switch Ass'y. Includes 16 to 20
-
16710000101 Blank Key (''B'' Type)Blank Key (''B'' Type)
-
17278000223 Female TerminalFemale Terminal
-
18278000273 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
19278000218 Wire SealWire Seal
-
20710000171 Protector TubeProtector Tube
-
21293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
21293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
21414115200 Tie-RapTie-Rap
-
22710000674 SpeedometerSpeedometer
-
23710000353 Trim RingTrim Ring
-
24710000592 LH Warning LightLH Warning Light
-
25710000015 Multi-Fonction Switch. Includes 25 to 29Multi-Fonction Switch. Includes 25 to 29
-
26710000173 Back CoverBack Cover
-
27409015200 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
28409014600 Male Lock (6 Circuits)Male Lock (6 Circuits)
-
29409014800 Male TerminalMale Terminal
-
30710000174 Headlamp Ass'y. Includes 30 to 33Headlamp Ass'y. Includes 30 to 33
-
31705000283 Lamp SupportLamp Support
-
32705000284 Lamp HousingLamp Housing
-
33710000176 BulbBulb
-
34410113200 RelayRelay
-
35210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
36572106600 HandleHandle
-
37250000008 Hex Screw K40 X 40Hex Screw K40 X 40
-
38710000285 SpringSpring
-
39517168600 SpringSpring
-
40234042600 Flat Washer 4 mmFlat Washer 4 mm
-
41234040600 Flat Washer 4 mmFlat Washer 4 mm
-
42415079900 Tubing 10 mmTubing 10 mm
-
42409902200 Tubing 25 mmTubing 25 mm
