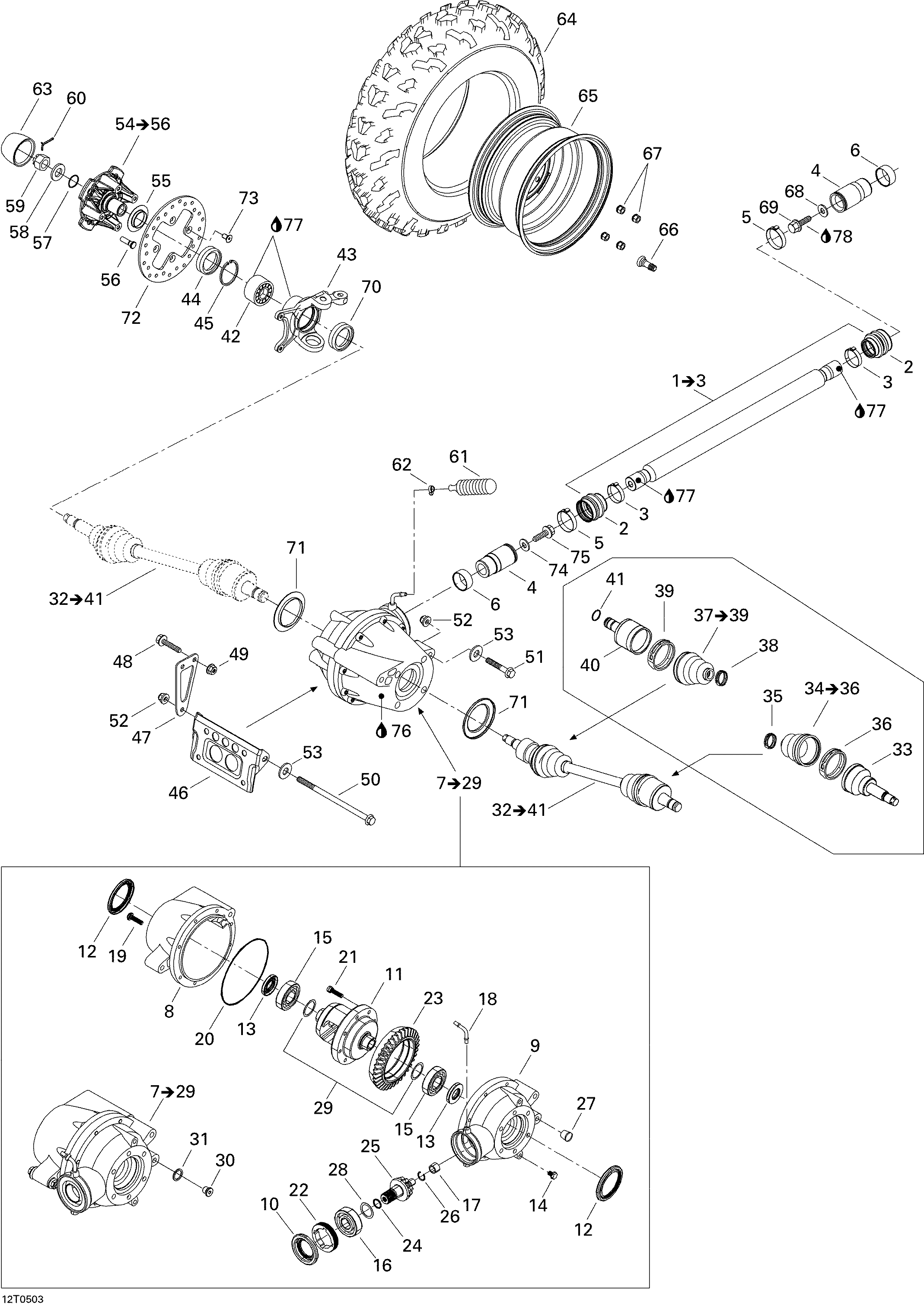

07- Drive System, Front для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1705400334 Front Drive Axle Ass'y. Includes 1 to 3Front Drive Axle Ass'y. Includes 1 to 3
-
2703500255 Rubber Boot Kit. Includes 3 and 5Rubber Boot Kit. Includes 3 and 5
-
3705400148 CollarCollar
-
4705400149 Coupling SleeveCoupling Sleeve
-
5293650138 Oetiker ClampOetiker Clamp
-
6705400036 Wear RingWear Ring
-
7705400264 Front Differential Ass'Y. Includes 7 to 29Front Differential Ass'Y. Includes 7 to 29
-
8705400099 Differential CapDifferential Cap
-
9705500515 Differential CarrierDifferential Carrier
-
10705400027 Oil SealOil Seal
-
11705400004 DifferentialDifferential
-
12705400019 Oil SealOil Seal
-
13705500255 Oil SealOil Seal
-
14705500245 Drain PlugDrain Plug
-
15705500259 Ball BearingBall Bearing
-
16705500260 Ball BearingBall Bearing
-
17705500261 Needle BearingNeedle Bearing
-
18705500262 Vent ValveVent Valve
-
19705500264 ScrewScrew
-
20705500265 SealSeal
-
21705400101 Ring Gear ScrewRing Gear Screw
-
22705500266 NutNut
-
23705400192 Gear 36 TeethGear 36 Teeth
-
24705500267 O-RingO-Ring
-
25705500268 Gear (10 Teeth)Gear (10 Teeth)
-
26705500269 Retaining RingRetaining Ring
-
27705500516 Protection PlugProtection Plug
-
28705500075 Pinion Gear ShimPinion Gear Shim
-
29705500079 Differential Shim KitDifferential Shim Kit
-
30705500504 Fill Level PlugFill Level Plug
-
31705500506 Copper WasherCopper Washer
-
32705400124 LH Cv Joint. Includes 32 to 41LH Cv Joint. Includes 32 to 41
-
32705400125 RH Cv Joint. Includes 32 to 41RH Cv Joint. Includes 32 to 41
-
33705400093 Cv JointCv Joint
-
34705400127 Wheel Boot Kit. Includes 34 to 36Wheel Boot Kit. Includes 34 to 36
-
35705400064 ClampClamp
-
36705400180 ClampClamp
-
37705400126 Boot Differential Kit. Includes 37 to 39Boot Differential Kit. Includes 37 to 39
-
38705400064 ClampClamp
-
39705400181 ClampClamp
-
40705400128 RH Plunging JointRH Plunging Joint
-
40705400129 LH Plunging JointLH Plunging Joint
-
41705400042 CirclipCirclip
-
42293350040 Cone BearingCone Bearing
-
43709400095 RH KnuckleRH Knuckle
-
43709400097 LH KnuckleLH Knuckle
-
44705500099 Oil SealOil Seal
-
45293370019 CirclipCirclip
-
46705400255 Diffential Front BracketDiffential Front Bracket
-
47705400069 Diffential RH Front BracketDiffential RH Front Bracket
-
48207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
49233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
50250000024 Flanged Screw M10 X 200 (scotch Grip)Flanged Screw M10 X 200 (scotch Grip)
-
51207606546 Hex Flanged Screw M10 X 65Hex Flanged Screw M10 X 65
-
52233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
53250200003 Flat WasherFlat Washer
-
54705400330 Wheel Hub Ass'y. Includes 54 to 56Wheel Hub Ass'y. Includes 54 to 56
-
55705500100 Wear RingWear Ring
-
56250300020 Wheel StudWheel Stud
-
57705500271 O-RingO-Ring
-
58250200019 WasherWasher
-
59232291413 Hex Flanged Castellated Nut M18Hex Flanged Castellated Nut M18
-
60250400016 Cotter PinCotter Pin
-
61705400066 Rubber BellowRubber Bellow
-
62293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
63705400012 Wheel CapWheel Cap
-
64705400009 Front TireFront Tire
-
65705400290 Front RimFront Rim
-
66705400193 Rim ValveRim Valve
-
67250100042 Wheel NutWheel Nut
-
68211200041 WasherWasher
-
69207581646 Flanged Screw M8 X 16 (scotch Grip)Flanged Screw M8 X 16 (scotch Grip)
-
70293250090 Oil SealOil Seal
-
71705400016 Wear RingWear Ring
-
72705600342 Brake-DiscBrake-Disc
-
73235381646 Torx Screw M8 X 16 (scotch Grip)Torx Screw M8 X 16 (scotch Grip)
-
74250200014 Flat WasherFlat Washer
-
75250000060 Flanged Screw M10 X 16 (scotch Grip)Flanged Screw M10 X 16 (scotch Grip)
-
76293600011 Pump Oil, 75w90, 12 X 6 OzPump Oil, 75w90, 12 X 6 Oz
-
77293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
78293800005 Loctite 271, 10 mlLoctite 271, 10 ml
