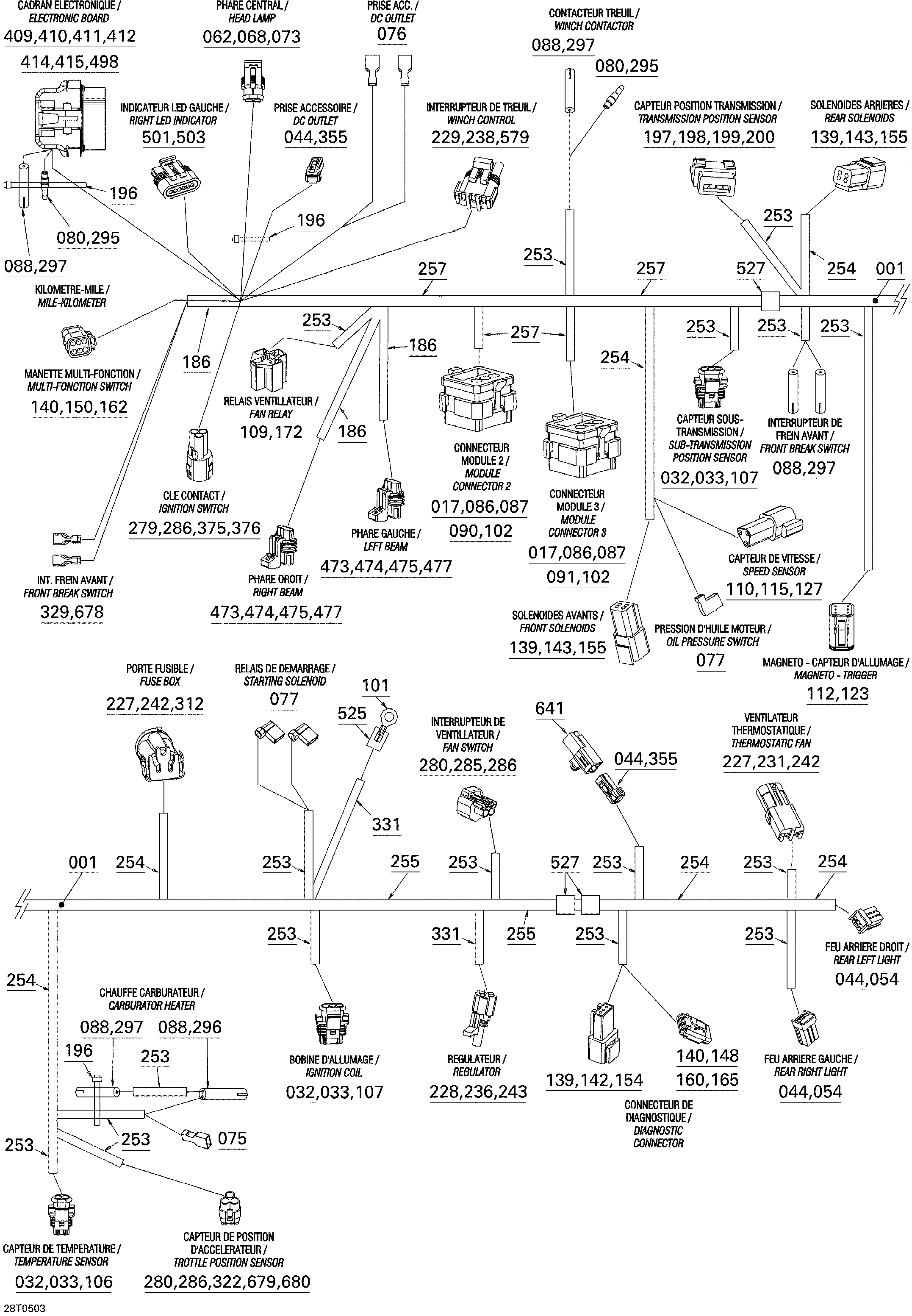

10- Electrical Harness, Frame для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1710000688 Harness Ass'y. Includes 001 to 678Harness Ass'y. Includes 001 to 678
-
17278000996 Wire SealWire Seal
-
32278000998 Female TerminalFemale Terminal
-
33278000999 Wire SealWire Seal
-
44515175231 Female Terminal 16-20 AwgFemale Terminal 16-20 Awg
-
54515175495 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
62278001014 Female TerminalFemale Terminal
-
68409209500 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
73278001013 Wire SealWire Seal
-
75409010700 Female TerminalFemale Terminal
-
76409010800 Female TerminalFemale Terminal
-
77409010300 Female TerminalFemale Terminal
-
80278000230 Male TerminalMale Terminal
-
86278000995 Female TerminalFemale Terminal
-
87278000994 Female TerminalFemale Terminal
-
88278001009 Female TerminalFemale Terminal
-
90278001062 Male Terminal Housing (26 Circuits)Male Terminal Housing (26 Circuits)
-
91278001063 Male Terminal Housing (26 Circuits)Male Terminal Housing (26 Circuits)
-
101278001392 Open BarrelOpen Barrel
-
102293000070 Sealing CapSealing Cap
-
106278001005 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
107278000997 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
109409209900 Female Housing (5 Circuits)Female Housing (5 Circuits)
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
115409207000 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
123278000736 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
127409207600 Male Lock (3 Circuits)Male Lock (3 Circuits)
-
139409014800 Male TerminalMale Terminal
-
140409015100 Female TerminalFemale Terminal
-
142710000044 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
143710000045 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
148515175249 Female Terminal Housing (3 Circ.)Female Terminal Housing (3 Circ.)
-
150409015400 Female Terminal Housing (6 Circ.)Female Terminal Housing (6 Circ.)
-
154710000043 (Male) Secondary Lock (3 Circuits) (Deutsch)(Male) Secondary Lock (3 Circuits) (Deutsch)
-
155710000046 Male Lock (4 Circuits)Male Lock (4 Circuits)
-
160515175248 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
162409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
165515175303 PlugPlug
-
172409205300 Female HousingFemale Housing
-
186515175332 Vinyl Tubing (low Temperature)Vinyl Tubing (low Temperature)
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
197710000051 Female TerminalFemale Terminal
-
198710000032 Female Terminal Housing (4 Circ.)Female Terminal Housing (4 Circ.)
-
199710000050 Wire SealWire Seal
-
200710000049 CapCap
-
227409004300 Male TerminalMale Terminal
-
228409007300 Female TerminalFemale Terminal
-
229278000223 Female TerminalFemale Terminal
-
231278000217 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
236278000219 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
238278000273 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
242278000218 Wire SealWire Seal
-
243710000048 Wire SealWire Seal
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 TubingTubing
-
257409901600 TubingTubing
-
279409011300 Male TerminalMale Terminal
-
280409012100 Female TerminalFemale Terminal
-
285710000078 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
286409012300 SealSeal
-
295278001008 Insulated SheathInsulated Sheath
-
296278000770 Insulated SheetInsulated Sheet
-
297278001007 Insulated SheetInsulated Sheet
-
312710000107 Male Terminal Housing (5 Circuits)Male Terminal Housing (5 Circuits)
-
322710000153 Female Terminal Housing (3 Circ.)Female Terminal Housing (3 Circ.)
-
329710000082 Female TerminalFemale Terminal
-
331710000244 Protector Tube 4 mmProtector Tube 4 mm
-
355515175658 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
375710000218 Male TerminalMale Terminal
-
376710000219 Tab Housing (3 Circuits)Tab Housing (3 Circuits)
-
409515175812 PlugPlug
-
410515175801 Female Housing (24 Circuits)Female Housing (24 Circuits)
-
411515175802 Retainer Block (24 Circuits)Retainer Block (24 Circuits)
-
412515175803 Wire Seal (24 Circuits)Wire Seal (24 Circuits)
-
414515175805 Female Lock (24 Circuits)Female Lock (24 Circuits)
-
415515175806 Female TerminalFemale Terminal
-
473710000645 HousingHousing
-
474278001481 Female TerminalFemale Terminal
-
475710000643 SealSeal
-
477710000642 LockLock
-
498710000399 Female Terminal Housing (24 Circ.)Female Terminal Housing (24 Circ.)
-
501710000412 Female TerminalFemale Terminal
-
503710000414 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
525710000482 Shrink TubingShrink Tubing
-
527710000484 Shrink TubingShrink Tubing
-
579710000504 Wire SealWire Seal
-
641710000667 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
678710000750 Shrink TubingShrink Tubing
-
679710000722 ConnectorConnector
-
680710000080 CapCap
