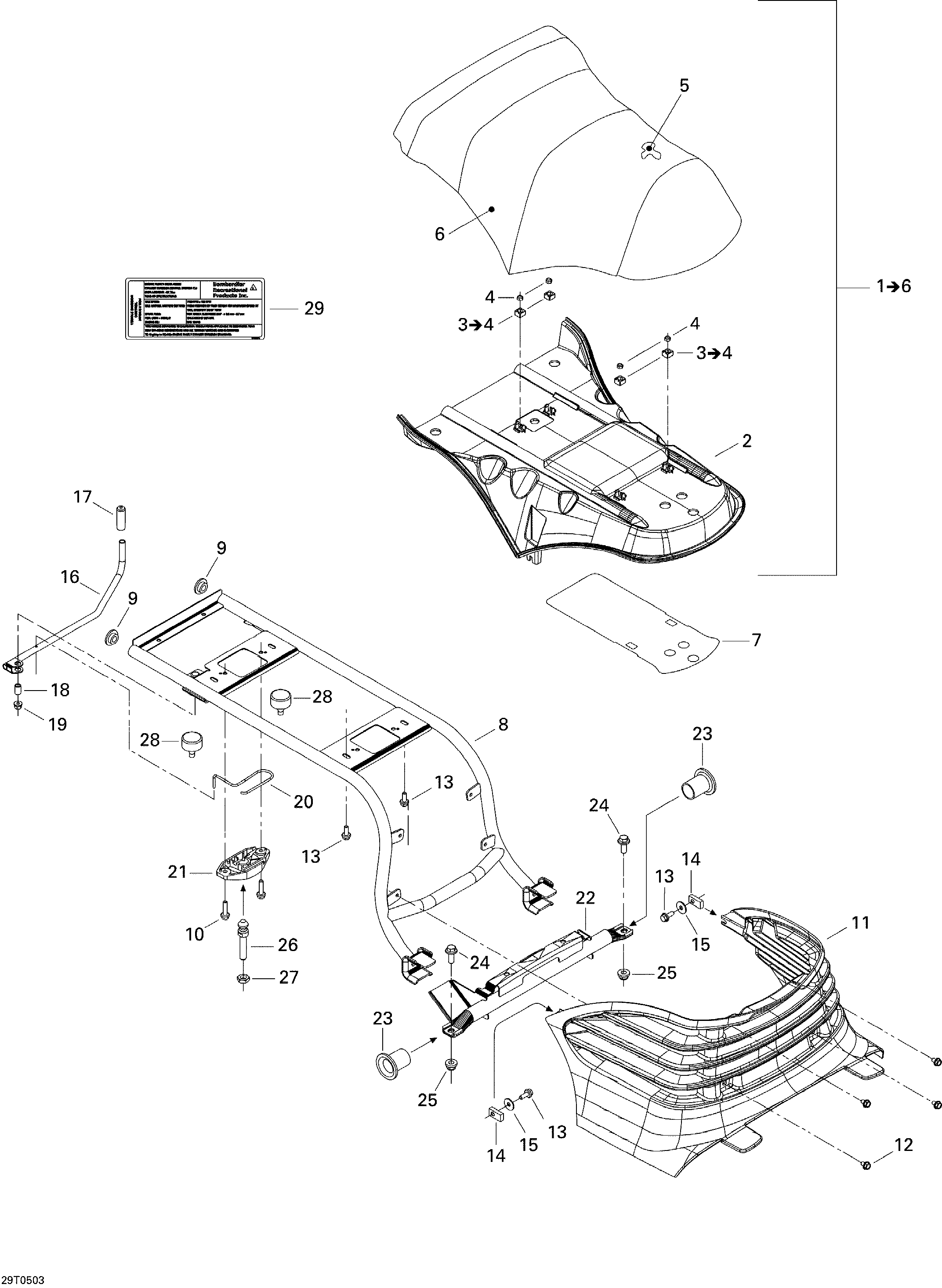

09- Seat для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1708000288 Seat Ass'Y. Includes 1 to 6Seat Ass'Y. Includes 1 to 6
-
3708000046 Nut Housing Ass'Y M6. Includes 3 to 4Nut Housing Ass'Y M6. Includes 3 to 4
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6708000290 Seat CoverSeat Cover
-
7708000434 Reflective SheetReflective Sheet
-
8708000386 Seat Support (black)Seat Support (black)
-
9709200115 BushingBushing
-
10207662544 Hex Flanged Screw M6 X25Hex Flanged Screw M6 X25
-
11708000276 Motor CoverMotor Cover
-
12210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
13207561644 Hex Flanged Screw M6 X 16 (Scotch Grip)Hex Flanged Screw M6 X 16 (Scotch Grip)
-
14708000042 Nut Housing M6Nut Housing M6
-
15224061201 Flat WasherFlat Washer
-
16708000074 Lever (Black)Lever (Black)
-
17708000087 Vinyl Cap (Black)Vinyl Cap (Black)
-
18708000084 SleeveSleeve
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20708000073 SpringSpring
-
21708000034 Latch BaseLatch Base
-
22708000044 Seat Pivot (Black)Seat Pivot (Black)
-
23708000019 Seat BushingSeat Bushing
-
24207682046 Vis Hex A Epaulement M8 X 20Vis Hex A Epaulement M8 X 20
-
25233281416 Elastic Flange Nut M8Elastic Flange Nut M8
-
26291000945 Seat StudSeat Stud
-
27232100600 Hex Jam Nut M10Hex Jam Nut M10
-
28708000006 Rubber StopperRubber Stopper
-
29704900876 Emission LabelEmission Label
