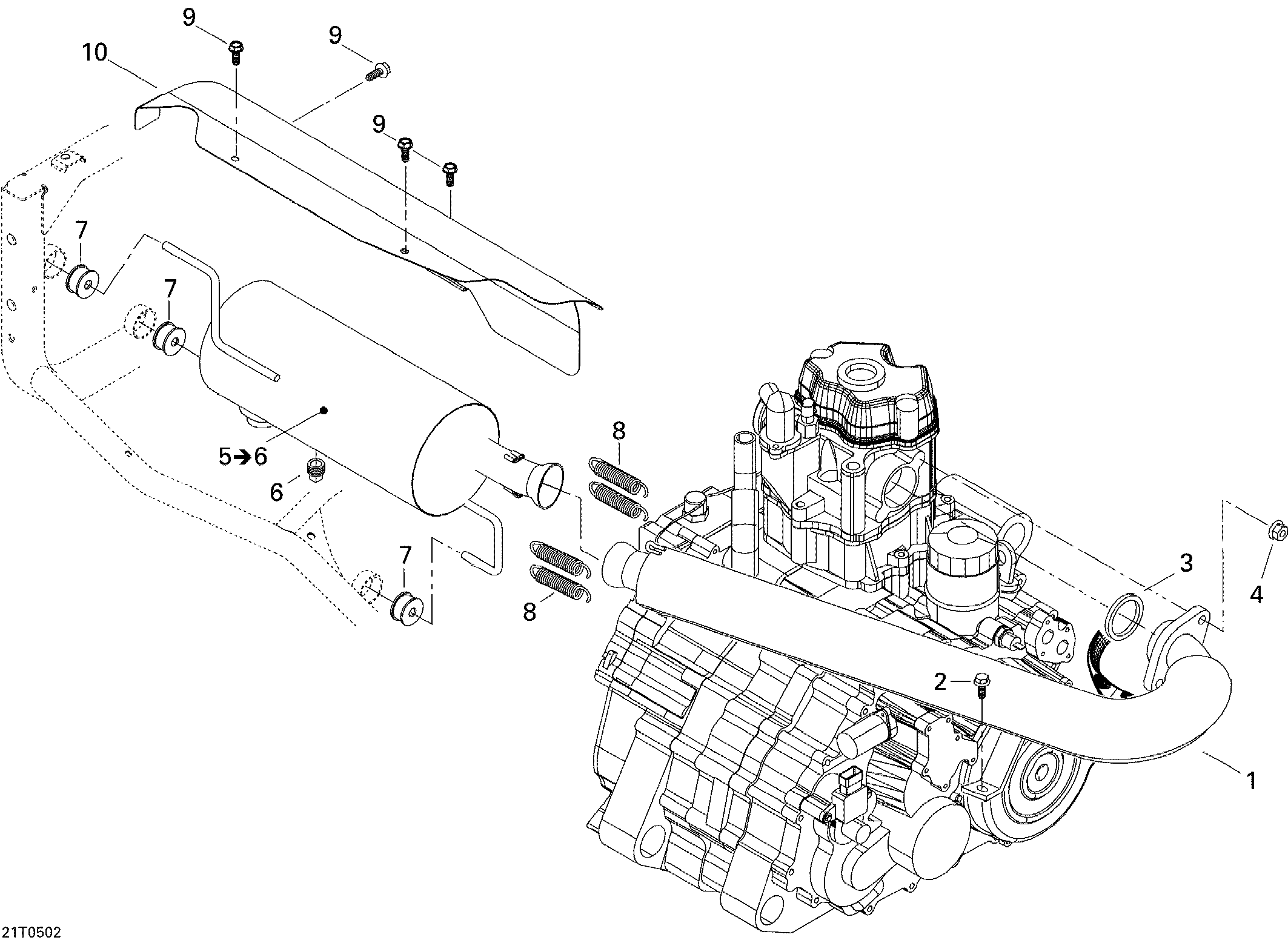

01- Exhaust System для BRP Traxter XT - 2005
-
№АртикулНазвание
-
1707600062 Tuned PipeTuned Pipe
-
2207581646 Flanged Hex. Screw M8 X 16 (scotch Grip)Flanged Hex. Screw M8 X 16 (scotch Grip)
-
3707600003 GasketGasket
-
4233081416 Hex Flanged Nut M8Hex Flanged Nut M8
-
5707600080 Muffler. Includes 5 To 6Muffler. Includes 5 To 6
-
5707600319 Muffler. Includes 5 To 6, Europe Model 1A5E OnlyMuffler. Includes 5 To 6, Europe Model 1A5E Only
-
6250500003 Drain PlugDrain Plug
-
7707600012 Anti-Vibration RubberAnti-Vibration Rubber
-
8415107100 SpringSpring
-
9210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
10707600076 Heat ShieldHeat Shield
