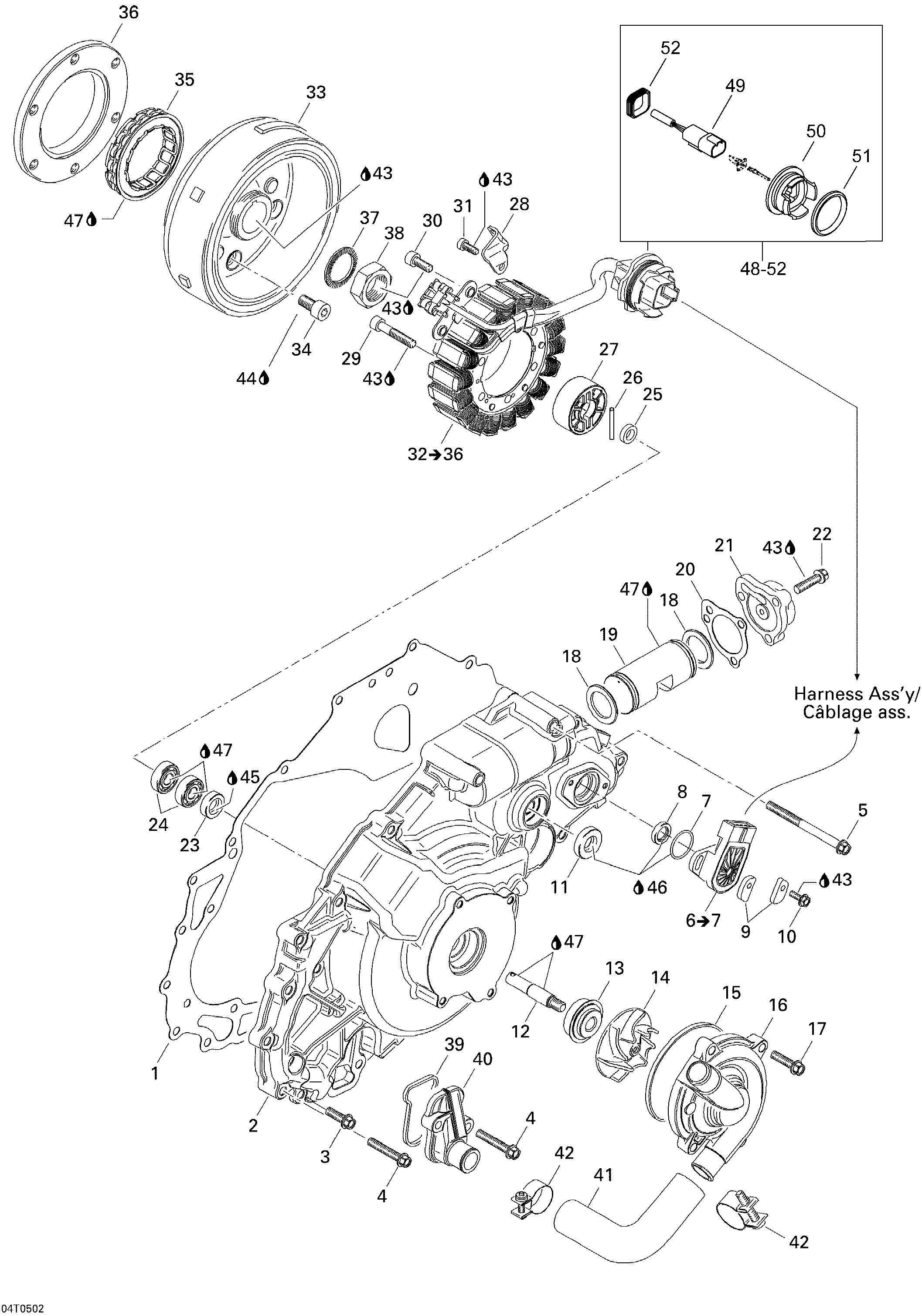

03- Ignition, Magneto and Water Pump для BRP Traxter XT - 2005
-
№АртикулНазвание
-
1420650603 Gasket (Ignition Cover)Gasket (Ignition Cover)
-
2420211821 Ignition CoverIgnition Cover
-
3420241861 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
4420941126 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
5420940576 Hex Flanged Screw M6 X 70Hex Flanged Screw M6 X 70
-
6420265611 Potentiometer (Transmission). Item 7 Not includedPotentiometer (Transmission). Item 7 Not included
-
7420931390 O-RingO-Ring
-
8420230870 Oil SealOil Seal
-
9420224630 ReinforcementReinforcement
-
10420440291 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
11420950400 Oil SealOil Seal
-
12420220560 Water Pump ShaftWater Pump Shaft
-
13420650370 Rotary SealRotary Seal
-
14420222540 Water ImpellerWater Impeller
-
15420650570 Rubber RingRubber Ring
-
16420222550 Water Pump HousingWater Pump Housing
-
17420241911 Hex Screw M6 X 25Hex Screw M6 X 25
-
18420650660 K Grooved RingK Grooved Ring
-
19420257140 Hydraulic PistonHydraulic Piston
-
20420650640 Gasket (hydraulic Cover)Gasket (hydraulic Cover)
-
21420211950 Hydraulic CoverHydraulic Cover
-
22420241911 Hex Screw M6 X 25Hex Screw M6 X 25
-
23420250080 Oil SealOil Seal
-
24420632170 Ball BearingBall Bearing
-
25420247030 Distance SleeveDistance Sleeve
-
26420932885 Needle PinNeedle Pin
-
27420659190 PawlPawl
-
28420251180 Cable ClampCable Clamp
-
29420941126 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
30420241751 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
31732600027 Phillips Screw M5 X 10Phillips Screw M5 X 10
-
32420296107 Magneto Ass'Y. Includes 32 to 36Magneto Ass'Y. Includes 32 to 36
-
34205081644 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
35420659117 Sprag ClutchSprag Clutch
-
36420659220 Sprag Clutch HousingSprag Clutch Housing
-
37420245875 Serrated Washer 22 mmSerrated Washer 22 mm
-
38420242875 Hex Nut M22Hex Nut M22
-
39420650940 Sealing RingSealing Ring
-
40420222620 Inlet FittingInlet Fitting
-
41420222630 Profiled TubeProfiled Tube
-
42420951760 ClampClamp
-
43293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
44413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
45413707000 Molykote 111, 150 GMolykote 111, 150 G
-
46293550030 Grease, Super LubeGrease, Super Lube
-
47293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
48707000031 Adaptor Ass'y. Includes 48 to 52Adaptor Ass'y. Includes 48 to 52
-
49270000137 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
50270000138 AdaptorAdaptor
-
51293300033 GasketGasket
-
52293200055 GasketGasket
