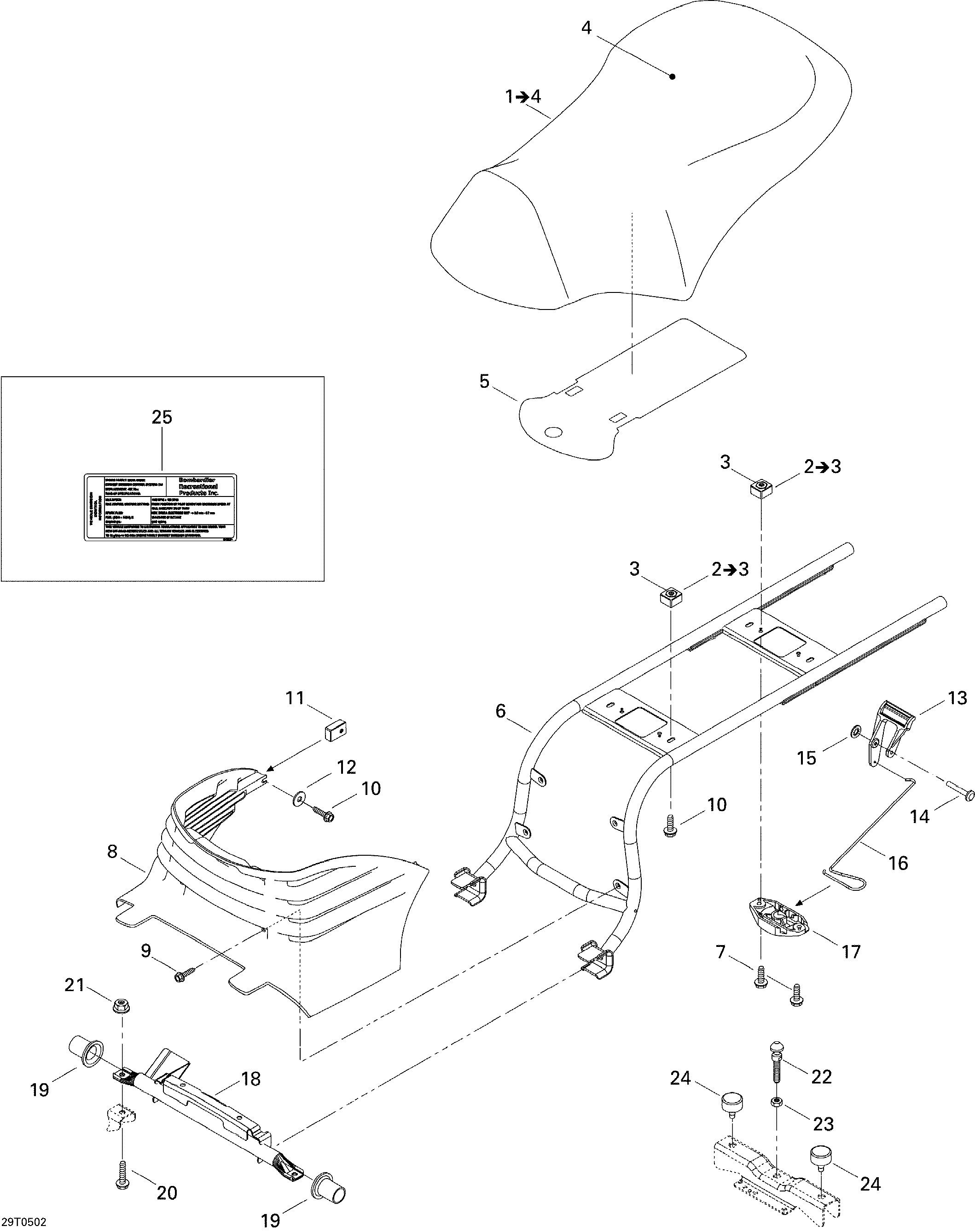

09- Seat для BRP Traxter XT - 2005
-
№АртикулНазвание
-
1708000320 Seat Assy. Includes 1 To 4Seat Assy. Includes 1 To 4
-
2708000046 Nut Housing Ass'Y M6. Includes 2 To 3Nut Housing Ass'Y M6. Includes 2 To 3
-
3232561414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
4708000314 Seat CoverSeat Cover
-
5708000160 Reflective SheetReflective Sheet
-
6708000373 Seat SupportSeat Support
-
7207662544 Hex Flanged Screw M6 X25Hex Flanged Screw M6 X25
-
8708000276 Motor CoverMotor Cover
-
9210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
10207561644 Hex Flanged Screw M6 X 16 (scotch Grip)Hex Flanged Screw M6 X 16 (scotch Grip)
-
11708000042 Nut Housing M6Nut Housing M6
-
12224061201 Flat WasherFlat Washer
-
13708000010 Lever LatchLever Latch
-
14293150062 Solid Rivet 3/16 X 1-7/8Solid Rivet 3/16 X 1-7/8
-
15389804300 Push NutPush Nut
-
16708000015 SpringSpring
-
17708000034 Latch BaseLatch Base
-
18708000044 Seat Pivot (Black)Seat Pivot (Black)
-
19708000019 Seat BushingSeat Bushing
-
20207682046 Vis Hex A Epaulement M8 X 20Vis Hex A Epaulement M8 X 20
-
21233281416 Elastic Flange Nut M8Elastic Flange Nut M8
-
22291000945 Seat StudSeat Stud
-
23232100600 Hex Jam Nut M10Hex Jam Nut M10
-
24708000006 Rubber StopperRubber Stopper
-
25704900876 ''Emission'' Label''Emission'' Label
