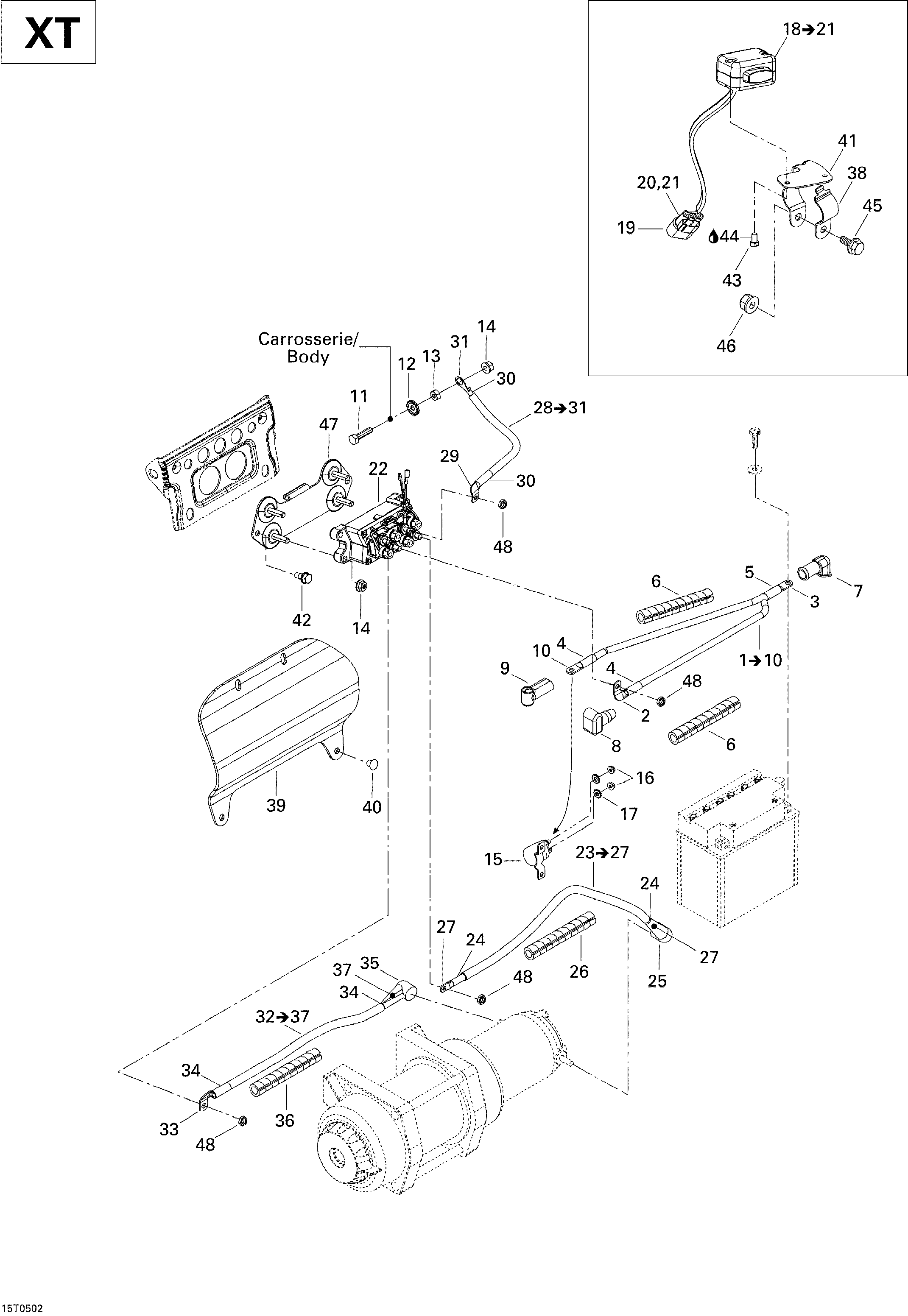

10- Electrical Harness, Front Section для BRP Traxter XT - 2005
-
№АртикулНазвание
-
1710000442 Battery Starter Relay Cable Ass'y. Includes 1 to 10Battery Starter Relay Cable Ass'y. Includes 1 to 10
-
2710000475 Open Barel 6.6 mmOpen Barel 6.6 mm
-
3710000478 Flat Open Barel 6.6 mmFlat Open Barel 6.6 mm
-
4710000483 Shrink TubingShrink Tubing
-
5275500578 Shrink TubingShrink Tubing
-
6710000497 Protector Tube 9 mmProtector Tube 9 mm
-
7710000516 Protector CapProtector Cap
-
8710000523 Protector CapProtector Cap
-
9710000527 Protector CapProtector Cap
-
10710000530 TerminalTerminal
-
11207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
-
12234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
13232061414 Hex Nut M6Hex Nut M6
-
14233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
15515176011 Starter RelayStarter Relay
-
16232061414 Hex Nut M6Hex Nut M6
-
17234161601 Lock Washer Helical M6Lock Washer Helical M6
-
18710000827 Winch Interrupter Ass'y. Includes 18 to 21Winch Interrupter Ass'y. Includes 18 to 21
-
19278000281 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
20278000222 Female TerminalFemale Terminal
-
21278001065 Wire SealWire Seal
-
22710000409 Winch SolenoidWinch Solenoid
-
23710000826 Winch Solenoid Cable Ass'y. Includes 23 to 27Winch Solenoid Cable Ass'y. Includes 23 to 27
-
24710000483 Shrink TubingShrink Tubing
-
25710000494 Protector CapProtector Cap
-
26710000497 Protector Tube 9 mmProtector Tube 9 mm
-
27710000530 TerminalTerminal
-
28710000439 Frame Solenoid Cable Ass'y. Includes 28 to 31Frame Solenoid Cable Ass'y. Includes 28 to 31
-
29710000475 Open Barel 6.6 mmOpen Barel 6.6 mm
-
30710000483 Shrink TubingShrink Tubing
-
31710000530 TerminalTerminal
-
32710000440 Winch Solenoid Cable Ass'y. Includes 32 to 37Winch Solenoid Cable Ass'y. Includes 32 to 37
-
33710000476 Flat Open Barel 6.6 mmFlat Open Barel 6.6 mm
-
34710000483 Shrink TubingShrink Tubing
-
35710000494 Protector CapProtector Cap
-
36710000497 Protector Tube 9 mmProtector Tube 9 mm
-
37710000530 TerminalTerminal
-
38710000566 CollarCollar
-
39710000511 Protector PadProtector Pad
-
40293730011 Dart (Black)Dart (Black)
-
41710000564 Support (Black)Support (Black)
-
42210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
43250000153 Hex Cap Screw 6-32 X 1/4''Hex Cap Screw 6-32 X 1/4''
-
44293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
45207661684 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
46233261494 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
47710000535 Solenoid Support (Black)Solenoid Support (Black)
-
48232561414 Elastic Stop Nut M6Elastic Stop Nut M6
