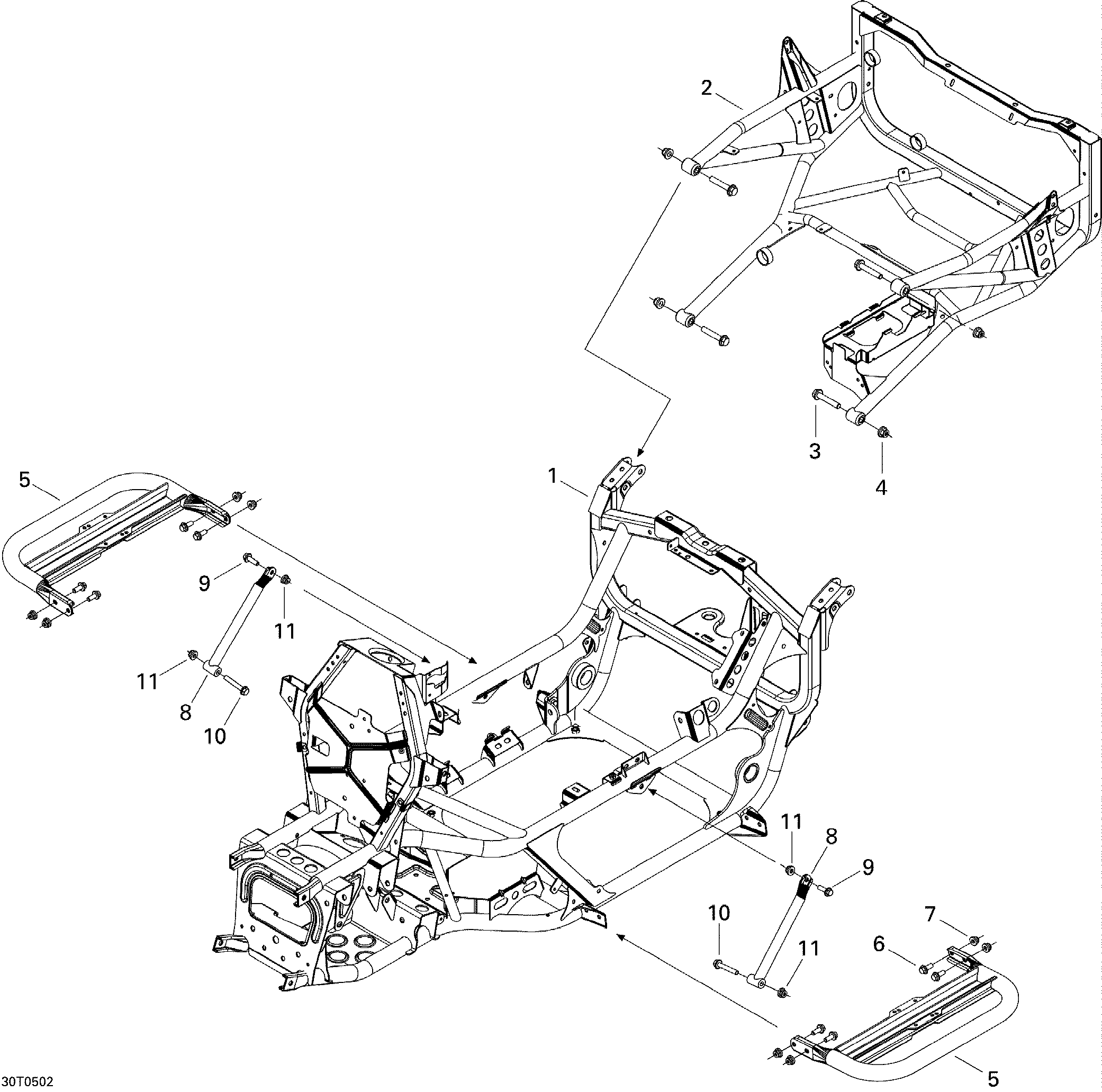

09- Frame System для BRP Traxter XT - 2005
-
№АртикулНазвание
-
1705201037 Frame (Black)Frame (Black)
-
2705201039 Frame Extension (Black)Frame Extension (Black)
-
3207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
4233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
5705000610 Footrest (Black)Footrest (Black)
-
6207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8705200143 Removable Brace (Black)Removable Brace (Black)
-
9207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
10207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
11233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
