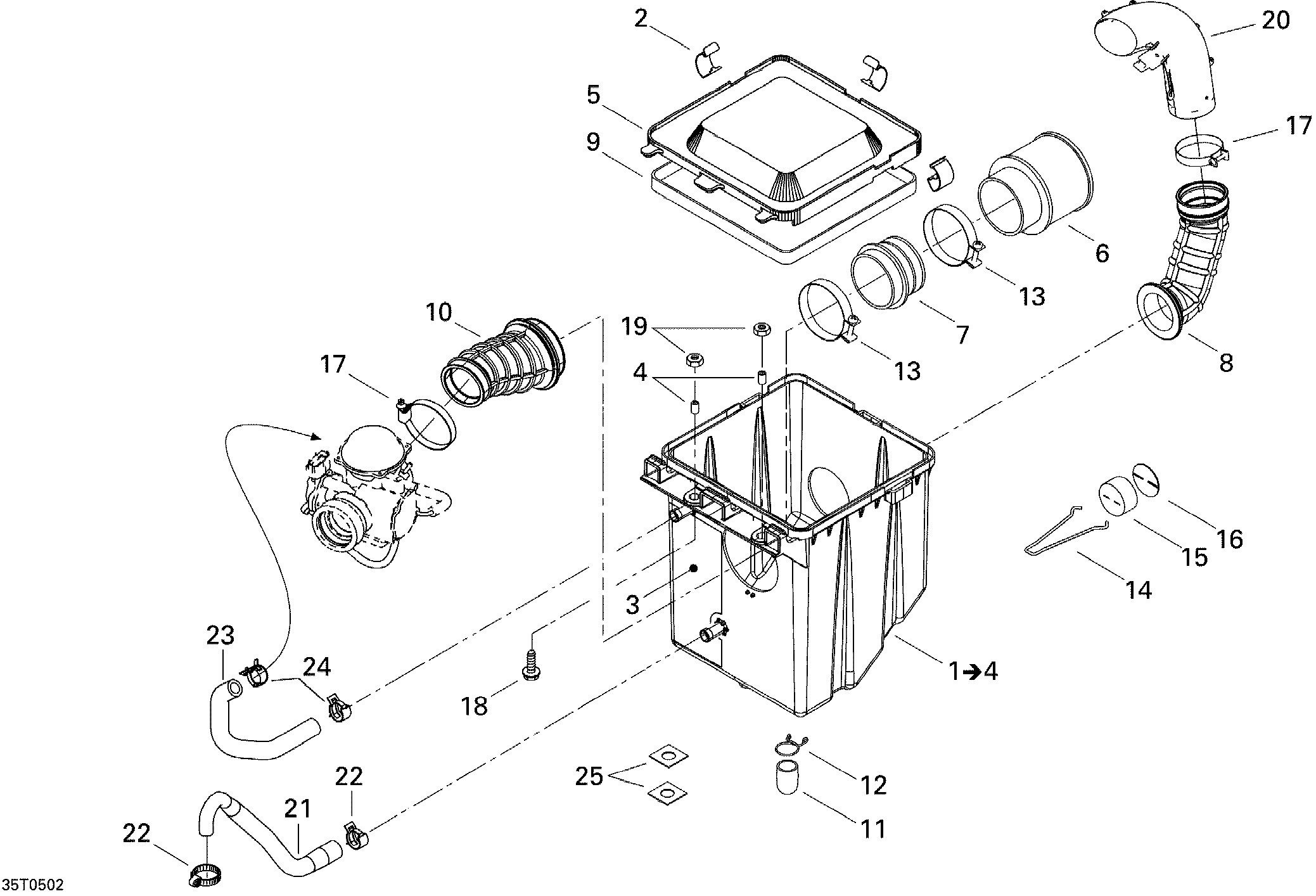

02- Air Intake для BRP Traxter XT - 2005
-
№АртикулНазвание
-
1707800167 Silencer Base. Includes 1 To 7Silencer Base. Includes 1 To 7
-
2707800079 Bracket CoverBracket Cover
-
3707800083 Heat ProtectorHeat Protector
-
5707800158 Muffler CoverMuffler Cover
-
6707800072 Air FilterAir Filter
-
7707800077 AdaptorAdaptor
-
8707800195 Intake AdaptorIntake Adaptor
-
9293250113 Oil SealOil Seal
-
10707800071 Intake AdaptorIntake Adaptor
-
11707800080 Drain TubeDrain Tube
-
12707800081 Retainer ClipRetainer Clip
-
13293650107 Tridon ClampTridon Clamp
-
14707800087 Foam BracketFoam Bracket
-
15707800088 Filter FoamFilter Foam
-
16707800089 Retainer BracketRetainer Bracket
-
17293650158 ClampClamp
-
18207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20707800073 Rear Air IntakeRear Air Intake
-
21707800164 Vent HoseVent Hose
-
22293650108 Spring ClampSpring Clamp
-
23707800086 Vent HoseVent Hose
-
24293650110 Norma ClampNorma Clamp
-
25293830091 Rubber BumperRubber Bumper
