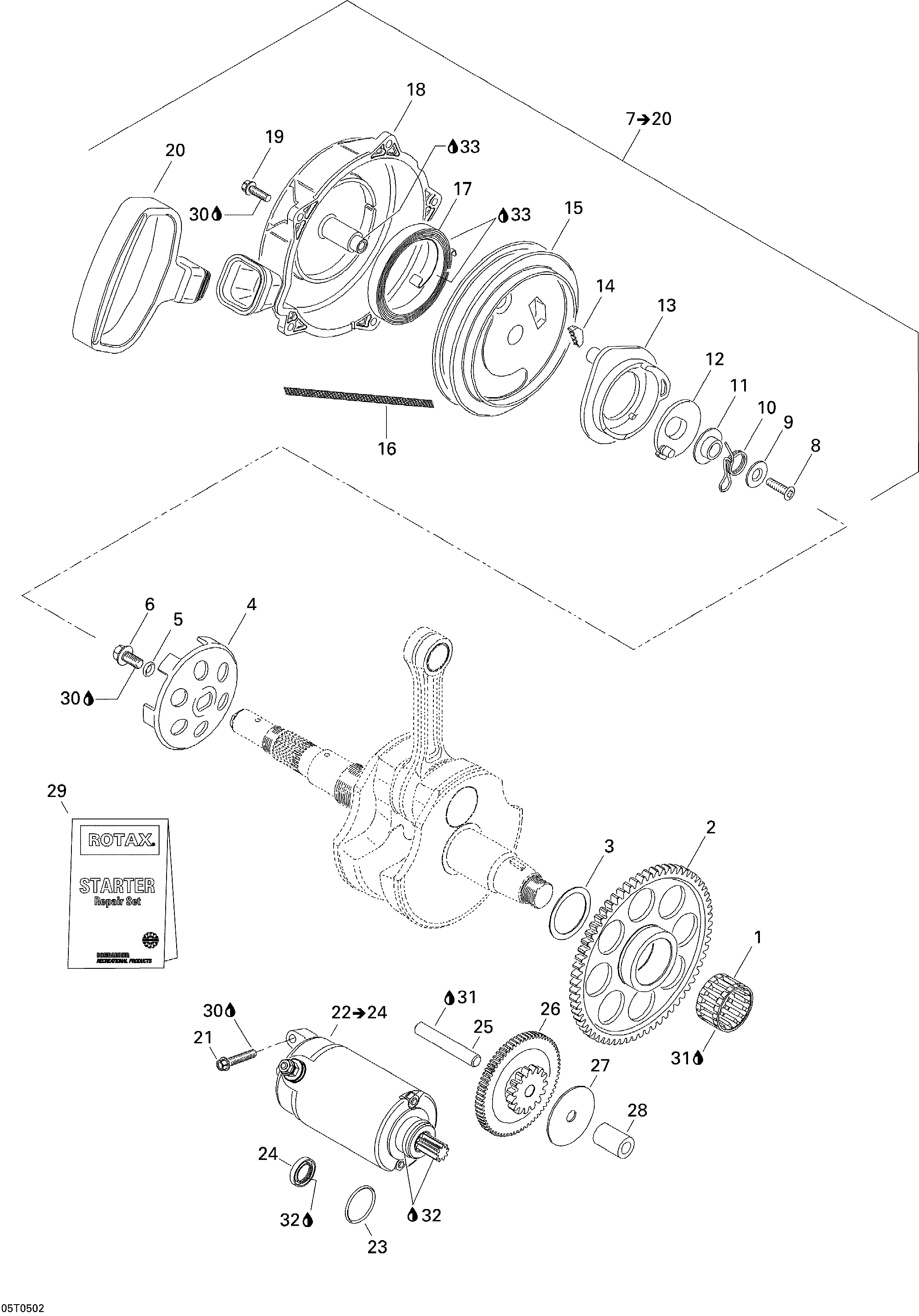

04- Rewind Starter and Electrical Starter для BRP Traxter XT - 2005
-
№АртикулНазвание
-
1420632190 Needle CageNeedle Cage
-
2420634941 Ring Gear 65 TeethRing Gear 65 Teeth
-
3420244290 Thrust WasherThrust Washer
-
4420852501 Starting PulleyStarting Pulley
-
5420650710 O-RingO-Ring
-
6420241720 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
7420296150 Rewind Starter Ass'Y. Includes 7 to 20Rewind Starter Ass'Y. Includes 7 to 20
-
8420241730 Plastite Screw M6 X 20Plastite Screw M6 X 20
-
9420244320 Flat WasherFlat Washer
-
10420938989 Locking SpringLocking Spring
-
11420847927 Stage SleeveStage Sleeve
-
12420852306 Lock PawlLock Pawl
-
13420852299 PawlPawl
-
14420852070 Key ClampKey Clamp
-
15420852283 Rope SheaveRope Sheave
-
16412500200 Starter Rope 2200 mm (meter)Starter Rope 2200 mm (meter)
-
17420939115 Rewind SpringRewind Spring
-
18420610930 Starter Rope HousingStarter Rope Housing
-
19420241861 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
20420852515 Starting GripStarting Grip
-
21420241941 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
22420296125 Electric Starter Ass'Y. Includes 22 to 24Electric Starter Ass'Y. Includes 22 to 24
-
23420250140 O-RingO-Ring
-
24420250130 Oil SealOil Seal
-
25420229470 Cylindrical Pin M10 X 65Cylindrical Pin M10 X 65
-
26420634970 Double Gear 15/67 TeethDouble Gear 15/67 Teeth
-
27420227620 Thrust WasherThrust Washer
-
28420847485 SpacerSpacer
-
29420266295 Brush KitBrush Kit
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
32420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
33420899763 Molykote Pg 54, 10 GMolykote Pg 54, 10 G
