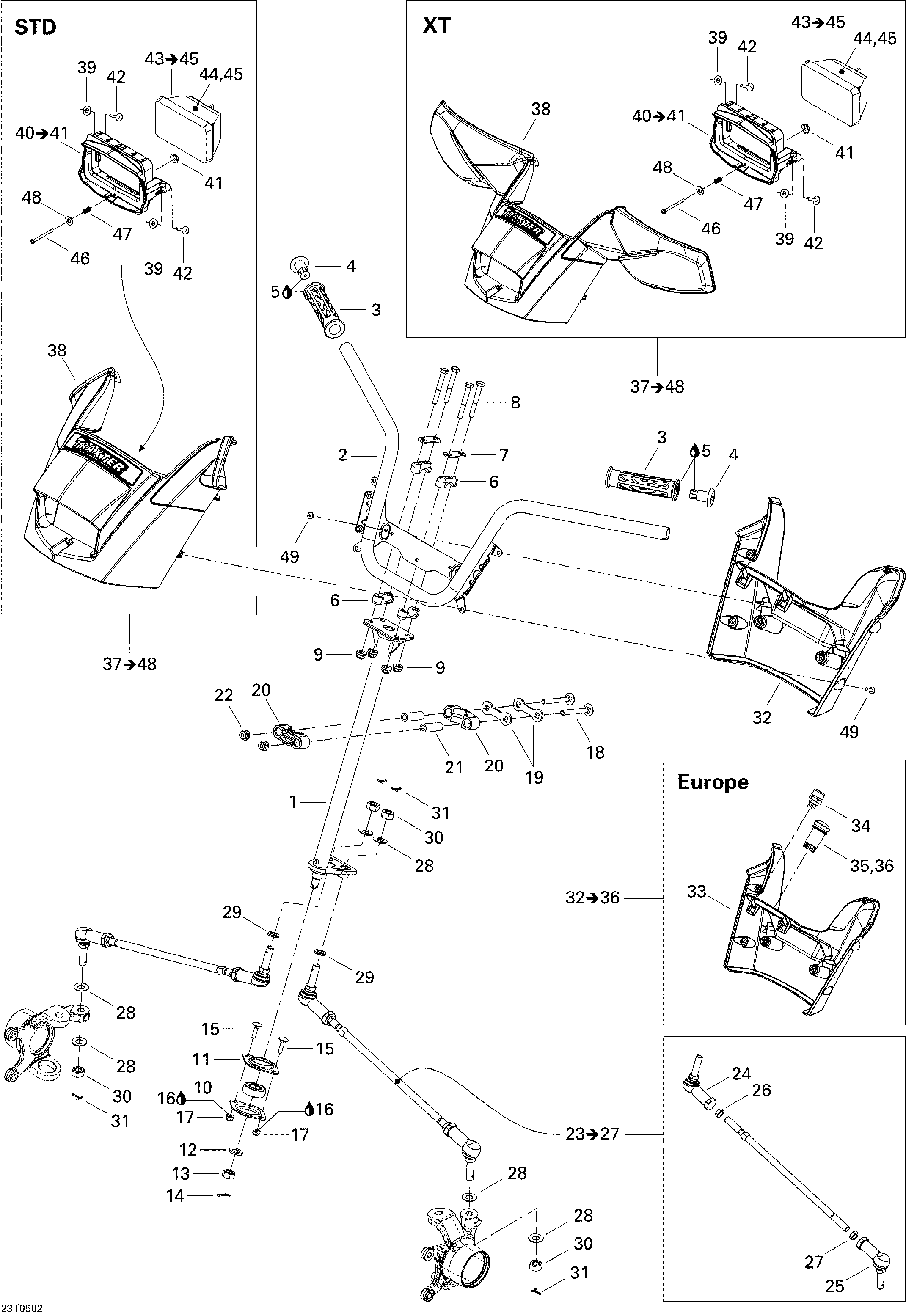

07- Steering System для BRP Traxter XT - 2005

№

Артикул

Название
1

709400305 Main Tube (black)

Main Tube (black)

13 760 ₽
2

709400300 Handle Bar

Handle Bar

9 420 ₽
3

709400157 Hand Grip

Hand Grip

1 130 ₽
4

709400189 End Piece

End Piece

530 ₽
5

293800100 Loctite 406, 7 Oz

Loctite 406, 7 Oz

4 470 ₽
6

506151622 Steering Support

Steering Support

0 ₽
7

506151196 Reinforcement

Reinforcement

0 ₽
8

207086046 Hex Screw M8 X 60

Hex Screw M8 X 60

980 ₽
9

233281416 Elastic Flange Nut M8

Elastic Flange Nut M8

540 ₽
10

709400224 Thrust Bearing

Thrust Bearing

0 ₽
11

709400152 Thrust Washer

Thrust Washer

3 540 ₽
12

234021410 Flat Washer 12 mm

Flat Washer 12 mm

270 ₽
13

250100045 Nut M12

Nut M12

330 ₽
14

211400017 Cotter Pin

Cotter Pin

120 ₽
15

207762544 Carriage Bolt M6 X 25

Carriage Bolt M6 X 25

160 ₽
16

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
17

233261414 Hex Flanged Elastic Nut M6

Hex Flanged Elastic Nut M6

490 ₽
18

207787044 Carriage Bolt M8 X 70

Carriage Bolt M8 X 70

120 ₽
19

506150600 Stopper Plate

Stopper Plate

1 490 ₽
20

709400034 Half-Housing

Half-Housing

1 150 ₽
21

506150500 Housing Bushing

Housing Bushing

2 690 ₽
22

233281414 Hex Flanged Elastic Nut M8

Hex Flanged Elastic Nut M8

490 ₽
23

709400240 Tie Rod Ass'y. Includes 23 to 27

Tie Rod Ass'y. Includes 23 to 27

0 ₽
24

709400241 RH Ball Joint

RH Ball Joint

0 ₽
25

709400242 LH Ball Joint

LH Ball Joint

0 ₽
28

706200281 Hard Washer

Hard Washer

0 ₽
29

503189276 Washer

Washer

1 150 ₽
30

250100045 Nut M12

Nut M12

330 ₽
31

211400013 Cotter Pin

Cotter Pin

120 ₽
32

709400252 Rear Steering Cover

Rear Steering Cover

3 310 ₽
32

709400336 Rear Steering Cover Ass'y. Europe / Includes 32 to 36

Rear Steering Cover Ass'y. Europe / Includes 32 to 36

0 ₽
33

709400252 Rear Steering Cover

Rear Steering Cover

3 310 ₽
34

415101200 Push Button

Push Button

3 220 ₽
35

710000367 Emergency Switch

Emergency Switch

11 470 ₽
36

710000661 Emergency Switch Light

Emergency Switch Light

670 ₽
37

709400333 Front Steering Cover Ass'y. Traxter XT 5 Speed / Includes 37 to 48

Front Steering Cover Ass'y. Traxter XT 5 Speed / Includes 37 to 48

19 110 ₽
37

709400334 Front Steering Cover Ass'y. Traxter STD 5 Speed / Includes 37 to 48

Front Steering Cover Ass'y. Traxter STD 5 Speed / Includes 37 to 48

19 110 ₽
39

250200025 Washer M5

Washer M5

270 ₽
40

709400296 Light Stand Ass'y. Includes 40 to 41

Light Stand Ass'y. Includes 40 to 41

2 520 ₽
41

250100030 Nut ''t'' Type M4

Nut ''t'' Type M4

410 ₽
42

250000101 Plastite Screw Type K-40 M4 X 25

Plastite Screw Type K-40 M4 X 25

910 ₽
43

710000712 Central Headlamp Ass'y. Includes 43 to 45

Central Headlamp Ass'y. Includes 43 to 45

4 960 ₽
44

705000284 Lamp Housing

Lamp Housing

8 140 ₽
45

710000762 Bulb

Bulb

2 650 ₽
47

517168600 Spring

Spring

3 100 ₽
48

250200025 Washer M5

Washer M5

270 ₽
49

250000146 Truss Head Torx Screw K50 X 16

Truss Head Torx Screw K50 X 16

260 ₽
