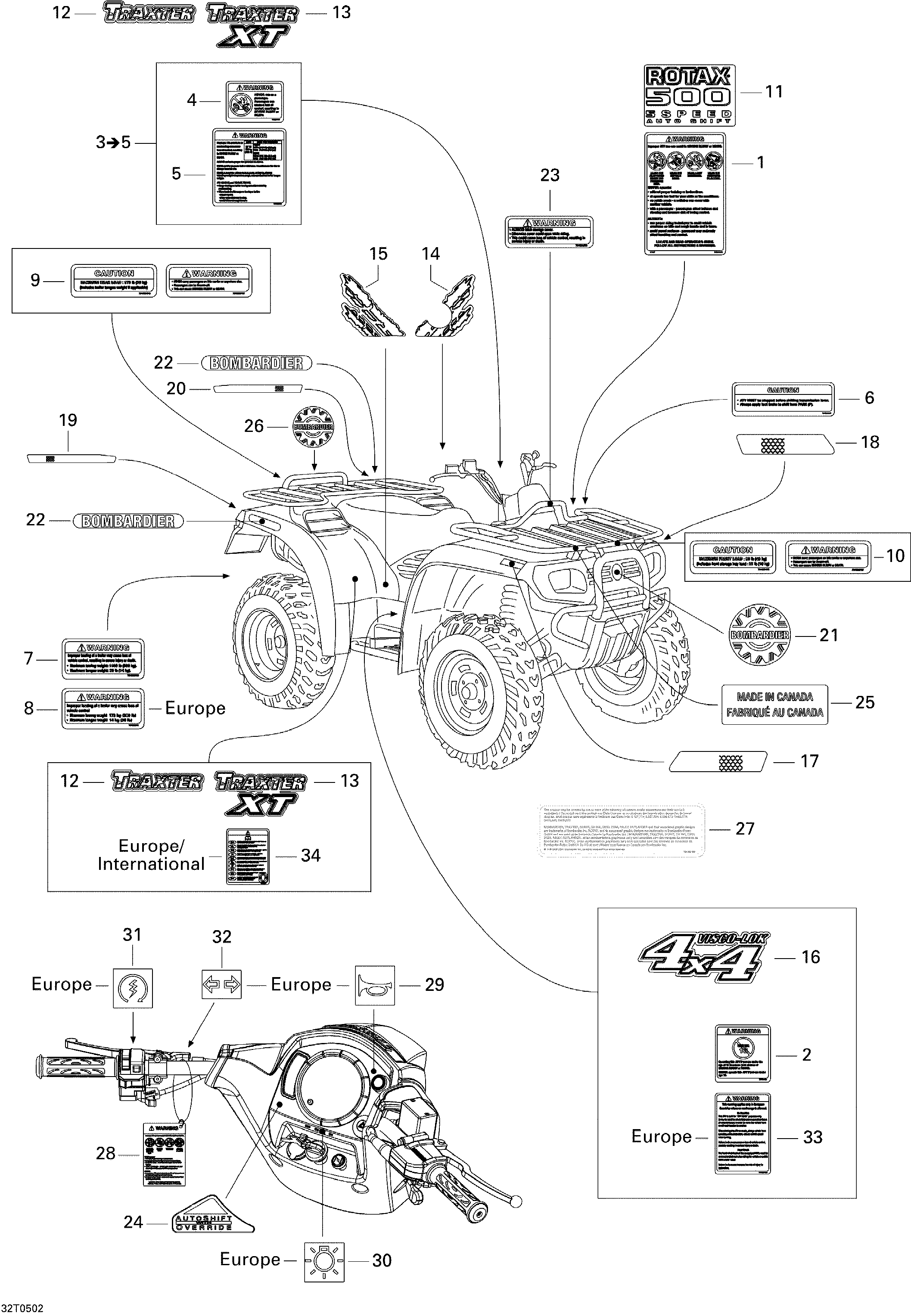

09- Decals для BRP Traxter XT - 2005
-
№АртикулНазвание
-
1704900001 Warning Label (Death And Injuries)Warning Label (Death And Injuries)
-
2704900011 Warning Label (Under 16 Years Old)Warning Label (Under 16 Years Old)
-
3704900917 Warning Label Ass'y. Includes 3 to 5Warning Label Ass'y. Includes 3 to 5
-
4704900005 Warning Label (Passenger)Warning Label (Passenger)
-
5704900918 Warning Label (Tire Pressure)Warning Label (Tire Pressure)
-
6704900007 Warning Label (Transmission Selector)Warning Label (Transmission Selector)
-
7704900766 Warning Label (Hitch)Warning Label (Hitch)
-
8704900940 Warning Label (Hitch). EuropeWarning Label (Hitch). Europe
-
9704900796 Warning Label (Rear Load)Warning Label (Rear Load)
-
10704900799 Warning Label (Front Load)Warning Label (Front Load)
-
11704900868 «Rotax 500» Label. Viper Red (STD)«Rotax 500» Label. Viper Red (STD)
-
11704900869 «Rotax 500» Label. Yellow (XT)«Rotax 500» Label. Yellow (XT)
-
11704900870 «Rotax 500» Label. Laurentian Green (STD and XT)«Rotax 500» Label. Laurentian Green (STD and XT)
-
12704900326 Rear Fender Decal. Viper Red (STD)Rear Fender Decal. Viper Red (STD)
-
12704900523 Rear Fender Decal. Laurentian Green (STD)Rear Fender Decal. Laurentian Green (STD)
-
13704900525 Rear Fender Decal. Laurentian Green (XT)Rear Fender Decal. Laurentian Green (XT)
-
13704900526 Rear Fender Decal. Viper Red (XT)Rear Fender Decal. Viper Red (XT)
-
13704900671 Rear Fender Decal. Yellow (XT)Rear Fender Decal. Yellow (XT)
-
14704900852 LH Rear Fender Decal. Viper Red (STD)LH Rear Fender Decal. Viper Red (STD)
-
14704900853 LH Rear Fender Decal. Laurentian Green (STD and XT)LH Rear Fender Decal. Laurentian Green (STD and XT)
-
14704900854 LH Rear Fender Decal. Yellow (XT)LH Rear Fender Decal. Yellow (XT)
-
15704900818 RH Rear Fender Decal. Viper Red (STD)RH Rear Fender Decal. Viper Red (STD)
-
15704900819 RH Rear Fender Decal. Yellow (XT)RH Rear Fender Decal. Yellow (XT)
-
15704900820 RH Rear Fender Decal. Laurentian Green (STD and XT)RH Rear Fender Decal. Laurentian Green (STD and XT)
-
16704900347 RH Front Label. Viper Red (XT)RH Front Label. Viper Red (XT)
-
16704900351 RH Front Label. Yellow (XT)RH Front Label. Yellow (XT)
-
16704900544 RH Front Label. Laurentian Green (STD and XT)RH Front Label. Laurentian Green (STD and XT)
-
17705000026 RH Front ReflectorRH Front Reflector
-
18705000083 LH Front ReflectorLH Front Reflector
-
19704900085 RH Rear ReflectorRH Rear Reflector
-
20704900086 LH Rear ReflectorLH Rear Reflector
-
21704900849 Logo «Bombardier» (68 mm)Logo «Bombardier» (68 mm)
-
22704900076 «Bombardier» Label«Bombardier» Label
-
23704900800 Warning Label (Cover Latch)Warning Label (Cover Latch)
-
24704900897 Label (Autoshift)Label (Autoshift)
-
25704900267 «Canada» Decal«Canada» Decal
-
26516002487 Logo «Bombardier»Logo «Bombardier»
-
27704900597 ATV Patent Marking DecalATV Patent Marking Decal
-
28704900928 Warning Label (Utility)Warning Label (Utility)
-
29704900702 Symbol Label (Horn). EuropeSymbol Label (Horn). Europe
-
30704900703 Symbol Label (Light). EuropeSymbol Label (Light). Europe
-
31704900705 Symbol Label (Start). EuropeSymbol Label (Start). Europe
-
32704900710 Symbol Label (Flasher). EuropeSymbol Label (Flasher). Europe
-
33704900400 Warning Label (Road Use). EuropeWarning Label (Road Use). Europe
-
34704900894 Label (Mutilingual). Europe / InternationalLabel (Mutilingual). Europe / International
