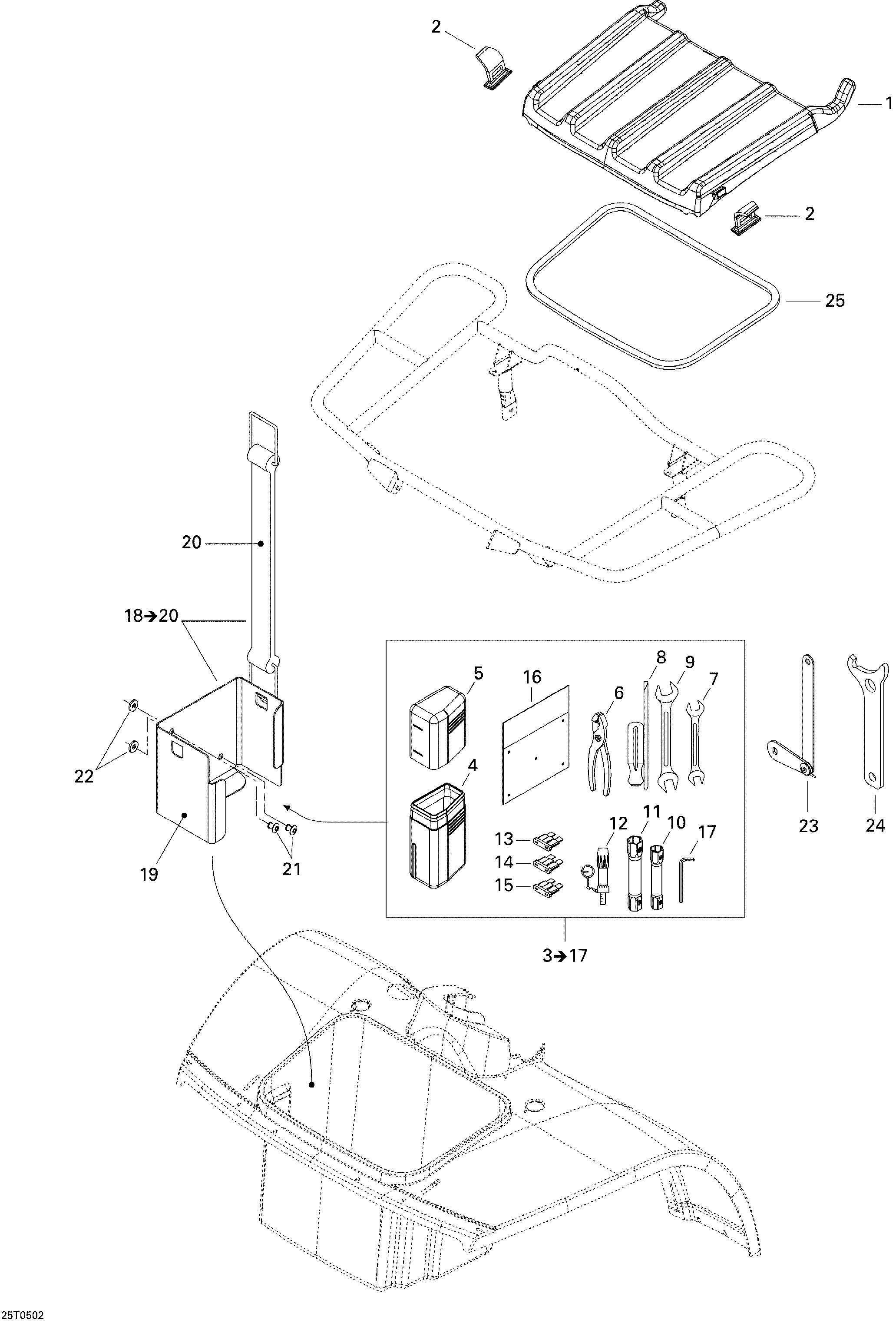

09- Front Storage Compartment для BRP Traxter XT - 2005
-
№АртикулНазвание
-
1708200042 Storage CoverStorage Cover
-
2708200003 Cover LatchCover Latch
-
3704700084 Tool Kit. Includes 3 to 17Tool Kit. Includes 3 to 17
-
4708200041 Tool BoxTool Box
-
7529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
8529000004 Driver ScrewDriver Screw
-
9529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
10529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
11529035731 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
12704700003 Pressure GaugePressure Gauge
-
13410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
14409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
15278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
17529035781 Key Allen 3 mmKey Allen 3 mm
-
18708200007 Support Tray Ass'y. Includes 18 to 20Support Tray Ass'y. Includes 18 to 20
-
19708200013 Support TraySupport Tray
-
20293850080 Rubber StrapRubber Strap
-
21390402300 Pop-rivet 3/16''Pop-rivet 3/16''
-
22517225900 Flat WasherFlat Washer
-
23529035599 Transmission Wrench Ass'YTransmission Wrench Ass'Y
-
24529032900 Adjustment WrenchAdjustment Wrench
-
25293200093 Neoprene SealNeoprene Seal
