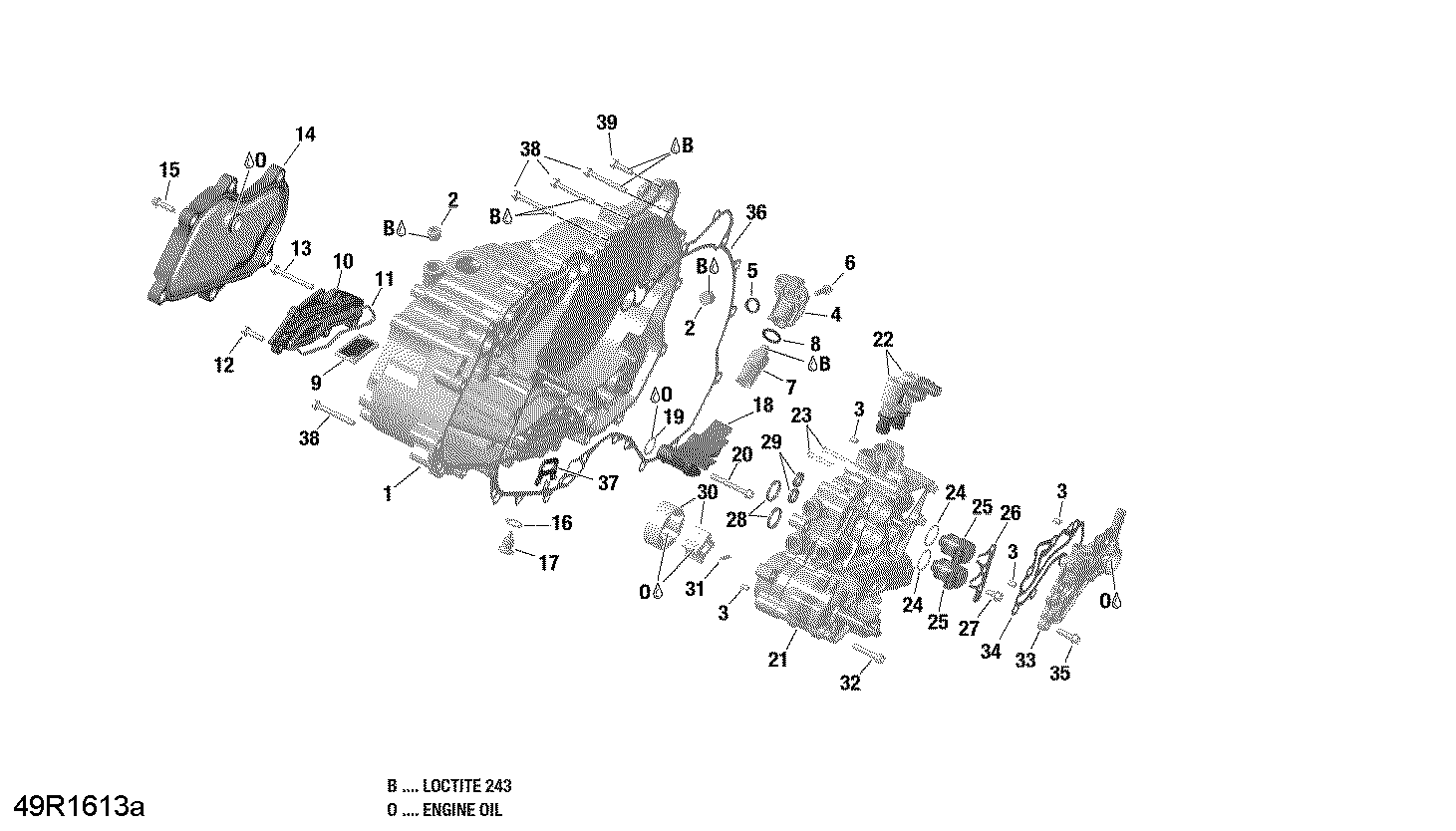

01- Clutch Cover - SE6 для BRP F3 - 2016
-
№АртикулНазвание
-
1>3420212906 Clutch Cover Ass'yClutch Cover Ass'y
-
2420641308 Plug Screw M14 X 1.5Plug Screw M14 X 1.5
-
3420232210 Center PinCenter Pin
-
4420212174 Pressure Sensor HousingPressure Sensor Housing
-
5420450310 GasketGasket
-
6420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
7>8420264160 Oil Pressure Switch AssyOil Pressure Switch Assy
-
8420450350 O-RingO-Ring
-
9420656990 Oil SieveOil Sieve
-
10420210871 Oil Duct CoverOil Duct Cover
-
11420250630 GasketGasket
-
12420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
13420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
14420211156 Oil Filter CoverOil Filter Cover
-
15420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
16420250640 Copper WasherCopper Washer
-
17420241782 Magnetic Drain Plug M12 X 1.5Magnetic Drain Plug M12 X 1.5
-
18420224085 Oil Guiding PlateOil Guiding Plate
-
19420430220 O-RingO-Ring
-
20420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
21>29420210982 Hydraulic Housing Ass'yHydraulic Housing Ass'y
-
22420264212 Solenoid Valve 3/2Solenoid Valve 3/2
-
23420939040 Spring ClipSpring Clip
-
24>25420656792 Solenoid Valve Ass'ySolenoid Valve Ass'y
-
26420651701 Retaining PlateRetaining Plate
-
27420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
28420450240 GasketGasket
-
29420450310 GasketGasket
-
30420456290 Oil Pump RotorOil Pump Rotor
-
31420232731 Needle PinNeedle Pin
-
32420840880 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
33420211124 Valve HousingValve Housing
-
34420450290 GasketGasket
-
35420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
36>37420450032 Gasket Ass`yGasket Ass`y
-
38420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
39420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
