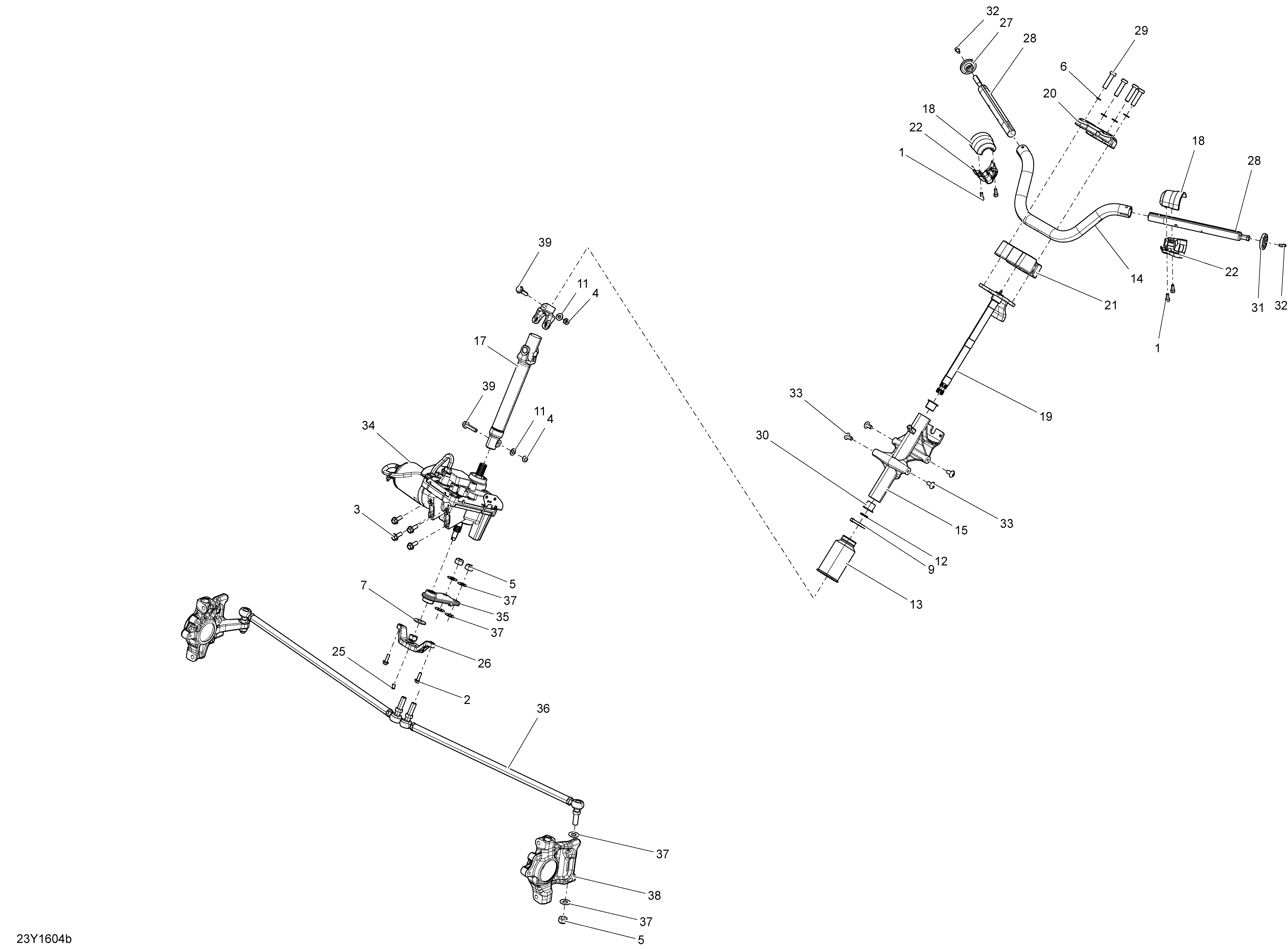

07- Steering - SE6 для BRP F3 - 2016
-
№АртикулНазвание
-
1205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
2207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
3207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4
-
5250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
6250200105 Stainless Flat Washer, 10 mmStainless Flat Washer, 10 mm
-
7250200113 Flat Washer, 12 mmFlat Washer, 12 mm
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11503189157 WasherWasher
-
12709000089 O-RingO-Ring
-
13709400790 BellowsBellows
-
14709401431 Carbon Black HandlebarCarbon Black Handlebar
-
15709401340 Support Ass'y. Include CushionsSupport Ass'y. Include Cushions
-
17709401345 Lower Column SteeringLower Column Steering
-
18709401475 Carbon Black Upper ClampCarbon Black Upper Clamp
-
19709401397 Upper Column SteeringUpper Column Steering
-
20709401434 Handle ClampHandle Clamp
-
21709401437 Handle ClampHandle Clamp
-
22709401780 Lower ClampLower Clamp
-
25709401527 Sensor SleaveSensor Sleave
-
26709401574 Sensor SupportSensor Support
-
27709401800 End-PieceEnd-Piece
-
28709401845 RH Handle Bar TubeRH Handle Bar Tube
-
28709401344 LH Handle BarTubeLH Handle BarTube
-
29250000456 Thin Socket Screw M10 X 40, Scotch GripThin Socket Screw M10 X 40, Scotch Grip
-
31709400793 LH Handlebar End PieceLH Handlebar End Piece
-
32205061054 Screw-Socket Hd.Din.912Screw-Socket Hd.Din.912
-
33250000751 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
34709401564 Power SteeringPower Steering
-
35709401417 Pitman ArmPitman Arm
-
36709401820 Tie Rod Ass'yTie Rod Ass'y
-
37250200086 Flat WasherFlat Washer
-
38709401864 RH Knuckle Ass'yRH Knuckle Ass'y
-
38709401865 LH Knuckle Ass'yLH Knuckle Ass'y
-
39207583587 Flanged Hex. Screw M8 X 35, Scotch GripFlanged Hex. Screw M8 X 35, Scotch Grip
