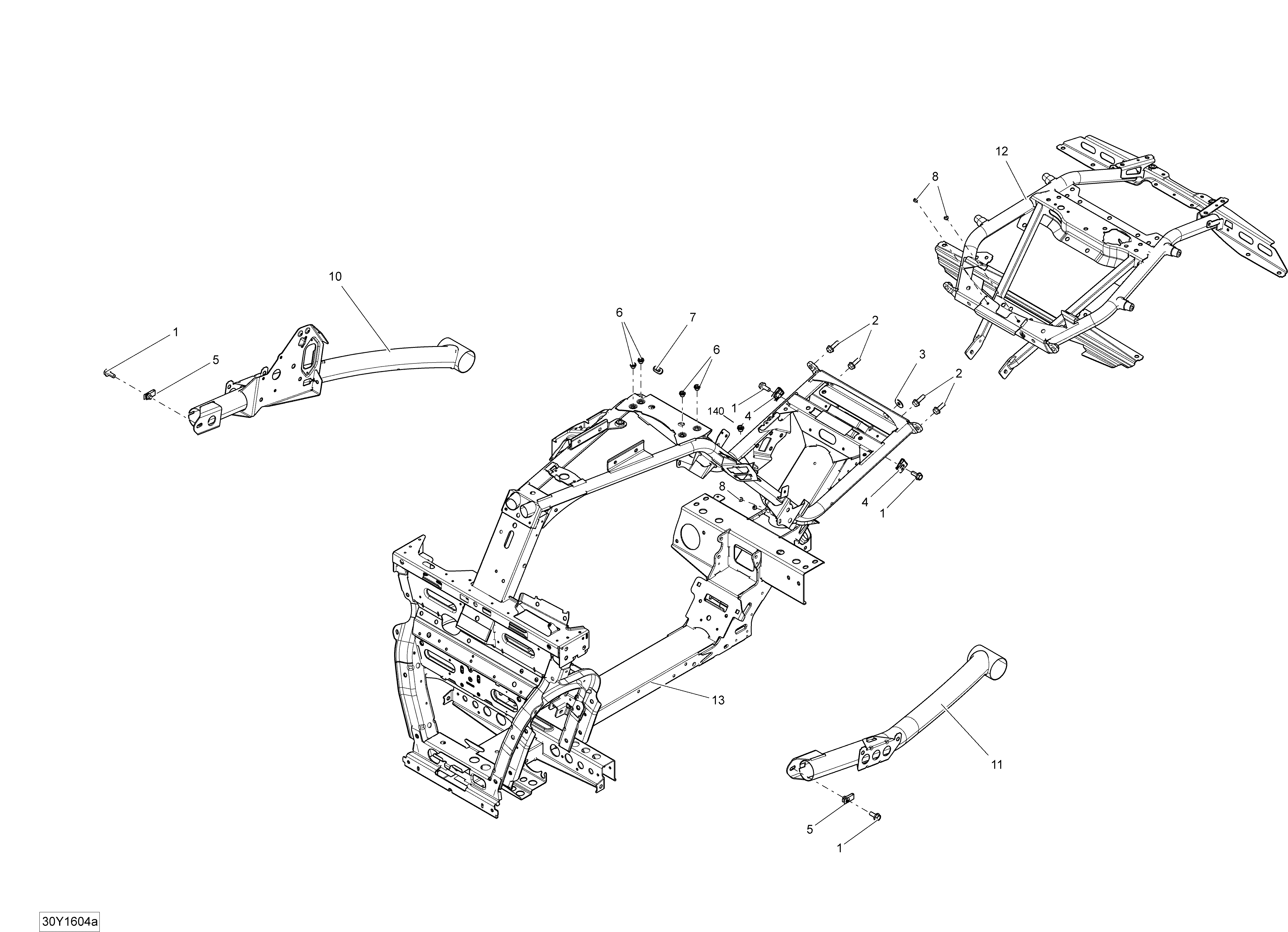

09- Frame - Package T, LTD для BRP F3 - 2016
-
№АртикулНазвание
-
1207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2205583087 Allen Screw M8 X 30Allen Screw M8 X 30
-
3506151245 WasherWasher
-
4250100069 Panet Nut M8 X 1.25Panet Nut M8 X 1.25
-
5250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
6293450232 InsertInsert
-
7293720062 GrommetGrommet
-
8390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
10705204607 Carbon Black RH Support. Model without Color MagnesiumCarbon Black RH Support. Model without Color Magnesium
-
10705204609 Can-Am Red RH Support. Model with Color MagnesiumCan-Am Red RH Support. Model with Color Magnesium
-
11705204612 Carbon Black LH Support. Model without Color MagnesiumCarbon Black LH Support. Model without Color Magnesium
-
11705204614 Can-Am Red LH Support. Model with Color MagnesiumCan-Am Red LH Support. Model with Color Magnesium
-
12705204746 Chassis-Ext.Chassis-Ext.
-
13705206179 FrameFrame
-
140293450232 Insert. For Muffler SupportInsert. For Muffler Support
