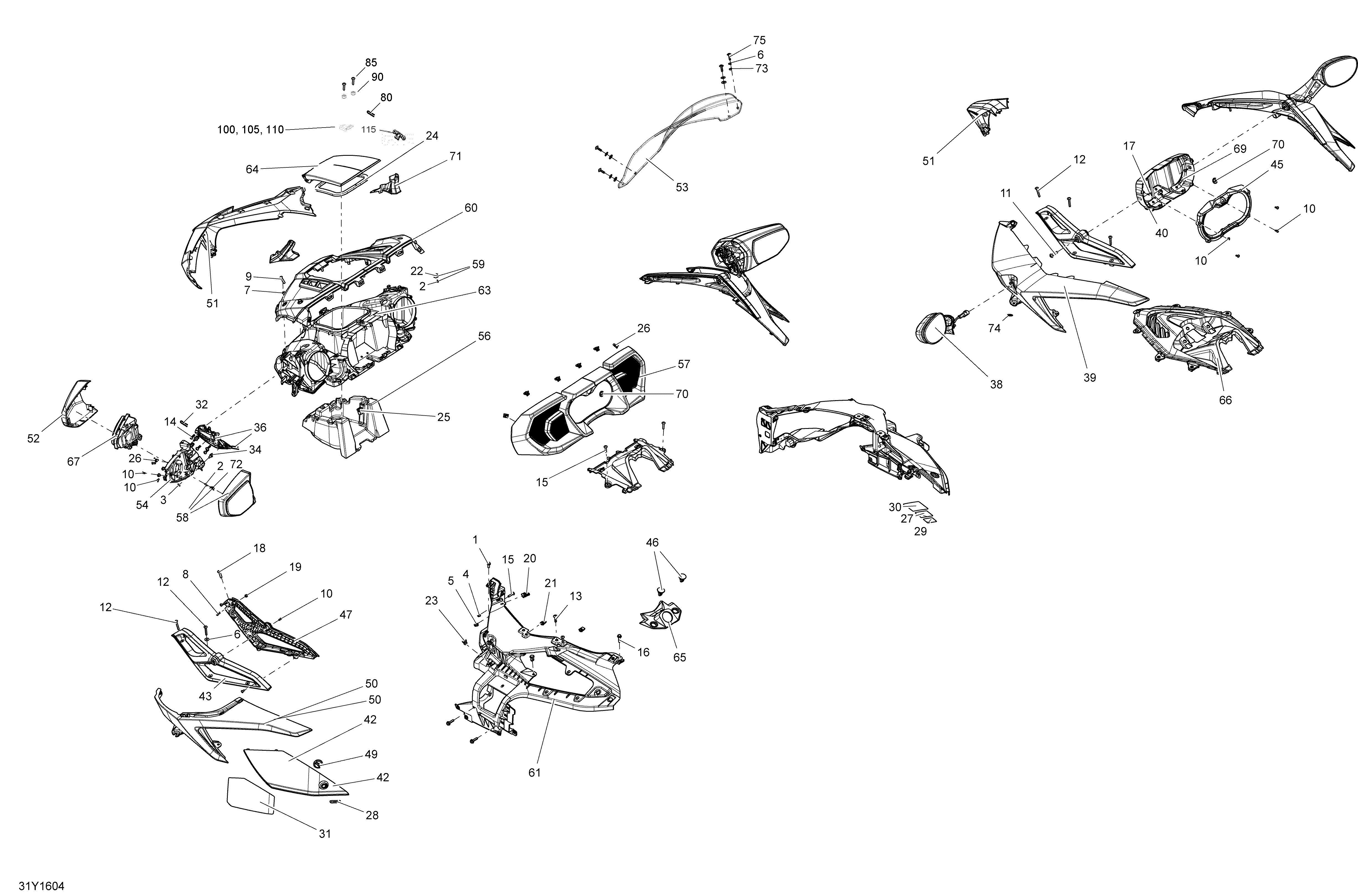

09- Body And Accessories - Console для BRP F3 - 2016
-
№АртикулНазвание
-
1210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
4233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
6234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8235551454 Screw-Torx Button Head M5 X 14Screw-Torx Button Head M5 X 14
-
9250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
10250000577 Torx Truss K40 X 12. Model with Package STDTorx Truss K40 X 12. Model with Package STD
-
10250000577 Torx Truss K40 X 12. Model with Package S / SPETorx Truss K40 X 12. Model with Package S / SPE
-
10250000577 Torx Truss K40 X 12. Model with Package T / LTDTorx Truss K40 X 12. Model with Package T / LTD
-
11250000604 Torx Screw M6 X 30Torx Screw M6 X 30
-
12250000732 Torx Screw Nylon. Model with Package STD / S / SPETorx Screw Nylon. Model with Package STD / S / SPE
-
12250000732 Torx Screw Nylon. Model with Package T / LTDTorx Screw Nylon. Model with Package T / LTD
-
13250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
14250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
15250000762 Torx Screw M5 X 25. Model with Package STD / S / SPETorx Screw M5 X 25. Model with Package STD / S / SPE
-
15250000762 Torx Screw M5 X 25. Model with Package T / LTDTorx Screw M5 X 25. Model with Package T / LTD
-
16250000793 SCREW-HEX.FLANGE DIN.6921 NYLON PATSCREW-HEX.FLANGE DIN.6921 NYLON PAT
-
17250000802 Torx Truss M4 X 12Torx Truss M4 X 12
-
18250000807 Torx Screw M6 X 25. Model with Package STDTorx Screw M6 X 25. Model with Package STD
-
18250000807 Torx Screw M6 X 25. Model with Package T / LTDTorx Screw M6 X 25. Model with Package T / LTD
-
19250100152 Cap Nut M5Cap Nut M5
-
20250100169 Panel Nut M6 X 1. Model with Package STD / S / SPEPanel Nut M6 X 1. Model with Package STD / S / SPE
-
20250100169 Panel Nut M6 X 1. Model with Package T / LTDPanel Nut M6 X 1. Model with Package T / LTD
-
21250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
22269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
23293150089 Tuflok Plastic Rivet. Model with Package STD / S / SPETuflok Plastic Rivet. Model with Package STD / S / SPE
-
23293150089 Tuflok Plastic Rivet. Model with Package T / LTDTuflok Plastic Rivet. Model with Package T / LTD
-
24293250406 Gasket. Model with Package T / LTDGasket. Model with Package T / LTD
-
25293750071 Latch. Model with Package T / LTDLatch. Model with Package T / LTD
-
26517302785 ClipClip
-
27704903119 Warning Decal, Liquide De FreinWarning Decal, Liquide De Frein
-
28704904673 Card LOGOCard LOGO
-
29704904812 Decal, XPSDecal, XPS
-
30704904924 Caution Decal, Oil LevelCaution Decal, Oil Level
-
31704905464 Warning DecalWarning Decal
-
32705006661 SpringSpring
-
34705006734 Round Head Stud M5Round Head Stud M5
-
34705006733 Flat Head Stud M5Flat Head Stud M5
-
36705008210 RH Plate Support Ass'yRH Plate Support Ass'y
-
36705008211 LH Plate Support Ass'yLH Plate Support Ass'y
-
38705008964 LH Lighted Mirror AssemblyLH Lighted Mirror Assembly
-
38705008969 RH Lighted Mirror AssemblyRH Lighted Mirror Assembly
-
39708400023 LH Steel Black Console Fairing. Model with Package STD / S / SPELH Steel Black Console Fairing. Model with Package STD / S / SPE
-
39708400024 RH Steel Black Console Fairing. Model with Package STD / S / SPERH Steel Black Console Fairing. Model with Package STD / S / SPE
-
40708400005 Cluster HolderCluster Holder
-
42708400210 Vegas White Pearl LH Acces PanelVegas White Pearl LH Acces Panel
-
42708400211 Vegas White Pearl RH Acces PanelVegas White Pearl RH Acces Panel
-
42708400026 Steel Black LH Access CoverSteel Black LH Access Cover
-
42708400026 Steel Black LH Access CoverSteel Black LH Access Cover
-
42708400026 Steel Black LH Access CoverSteel Black LH Access Cover
-
42708400027 Steel Black RH Access CoverSteel Black RH Access Cover
-
42708400027 Steel Black RH Access CoverSteel Black RH Access Cover
-
42708400027 Steel Black RH Access CoverSteel Black RH Access Cover
-
42708400136 Red LH Acces PanelRed LH Acces Panel
-
42708400137 Red Rh Acces PanelRed Rh Acces Panel
-
42708400168 Magnesium LH Acces PanelMagnesium LH Acces Panel
-
42708400169 Magnesium RH Acces PanelMagnesium RH Acces Panel
-
43708400016 Deep Black LH Upper Console Header. Model with Package STDDeep Black LH Upper Console Header. Model with Package STD
-
43708400017 Deep Black RH Upper Console Header. Model with Package STDDeep Black RH Upper Console Header. Model with Package STD
-
43708400119 Carbon Black LH Upper Console Header. Model with Package S / SPECarbon Black LH Upper Console Header. Model with Package S / SPE
-
43708400120 Carbon Black RH Upper Console Header. Model with Package S / SPECarbon Black RH Upper Console Header. Model with Package S / SPE
-
45708400022 Cluster BezelCluster Bezel
-
46708400046 Cap. Except Model with Package LTDCap. Except Model with Package LTD
-
46708400046 Cap. Model with Package LTDCap. Model with Package LTD
-
47708400053 LH Slider SupportLH Slider Support
-
47708400054 RH Slider SupportRH Slider Support
-
49708400065 Cover Latch Quater TurnCover Latch Quater Turn
-
50708400066 Black Steel LH Consol Fairing. Model with Package TBlack Steel LH Consol Fairing. Model with Package T
-
50708400068 Black Steel RH Consol Fairing. Model with Package TBlack Steel RH Consol Fairing. Model with Package T
-
50708400066 Black Steel LH Consol Fairing. Model with Package LTD & Color Steel BlackBlack Steel LH Consol Fairing. Model with Package LTD & Color Steel Black
-
50708400068 Black Steel RH Consol Fairing. Model with Package LTD & Color Steel BlackBlack Steel RH Consol Fairing. Model with Package LTD & Color Steel Black
-
50708400177 White LH Consol Fairing. Model with Package LTD & Color Pearl WhiteWhite LH Consol Fairing. Model with Package LTD & Color Pearl White
-
50708400181 White RH Consol Fairing. Model with Package LTD & Color Pearl WhiteWhite RH Consol Fairing. Model with Package LTD & Color Pearl White
-
50708400179 Red LH Consol Fairing. Model with Package LTD & Color Intense RedRed LH Consol Fairing. Model with Package LTD & Color Intense Red
-
50708400183 Red RH Consol Fairing. Model with Package LTD & Color Intense RedRed RH Consol Fairing. Model with Package LTD & Color Intense Red
-
50708400184 Magneisum RH Consol Fairing. Model with Package LTD & Color MagnesiumMagneisum RH Consol Fairing. Model with Package LTD & Color Magnesium
-
50708400180 Magneisum LH Consol Fairing. Model with Package LTD & Color MagnesiumMagneisum LH Consol Fairing. Model with Package LTD & Color Magnesium
-
51708400011 Black Deep Nose Fairing. Model with Package STDBlack Deep Nose Fairing. Model with Package STD
-
51708400072 Black Carbon Nose Fairing. Model with Package S / SPEBlack Carbon Nose Fairing. Model with Package S / SPE
-
51708400075 Black Steel Nose Fairing. Model with Package TBlack Steel Nose Fairing. Model with Package T
-
51708400075 Black Steel Nose Fairing. Model with Package LTD & Color Steel BlackBlack Steel Nose Fairing. Model with Package LTD & Color Steel Black
-
51708400075 Black Steel Nose Fairing. Model with Package LTD & Color Monolith BlackBlack Steel Nose Fairing. Model with Package LTD & Color Monolith Black
-
51708400187 White Nose Fairing. Model with Package LTD & Color Pearl WhiteWhite Nose Fairing. Model with Package LTD & Color Pearl White
-
51708400189 Red Nose Fairing. Model with Package LTD & Color Intense RedRed Nose Fairing. Model with Package LTD & Color Intense Red
-
52708400113 Black Steel LH Mirror Cover. Model with Package TBlack Steel LH Mirror Cover. Model with Package T
-
52708400116 Black Steel RH Mirror Cover. Model with Package TBlack Steel RH Mirror Cover. Model with Package T
-
52708400195 White RH Mirror Cover. Model with Package LTD & Color Pearl WhiteWhite RH Mirror Cover. Model with Package LTD & Color Pearl White
-
52708400191 White LH Mirror Cover. Model with Package LTD & Color Pearl WhiteWhite LH Mirror Cover. Model with Package LTD & Color Pearl White
-
52708400197 Red RH Mirror Cover. Model with Package LTD & Color Intense RedRed RH Mirror Cover. Model with Package LTD & Color Intense Red
-
52708400193 Red LH Mirror Cover. Model with Package LTD & Color Intense RedRed LH Mirror Cover. Model with Package LTD & Color Intense Red
-
52708400113 Black Steel LH Mirror Cover. Model with Package LTD & Color Steel BlackBlack Steel LH Mirror Cover. Model with Package LTD & Color Steel Black
-
52708400116 Black Steel RH Mirror Cover. Model with Package LTD & Color Steel BlackBlack Steel RH Mirror Cover. Model with Package LTD & Color Steel Black
-
52708400113 Black Steel LH Mirror Cover. Model with Package LTD & Color Monolith BlackBlack Steel LH Mirror Cover. Model with Package LTD & Color Monolith Black
-
52708400116 Black Steel RH Mirror Cover. Model with Package LTD & Color Monolith BlackBlack Steel RH Mirror Cover. Model with Package LTD & Color Monolith Black
-
53708400087 WindshieldWindshield
-
54708400224 Lh SupportLh Support
-
54708400225 Rh SupportRh Support
-
56708400103 Pod FoamPod Foam
-
57a708400126 DashboardDashboard
-
57b708400094 LH GrillLH Grill
-
57c708400095 RH GrillRH Grill
-
58708400115 LH Mirror ShellLH Mirror Shell
-
58708400118 RH Mirror ShellRH Mirror Shell
-
59269501166 Nut Housing Ass'yNut Housing Ass'y
-
60708400221 Upper Fairing AssembledUpper Fairing Assembled
-
61708400171 Rh Consol SuppRh Consol Supp
-
61708400170 LH Consol SuppLH Consol Supp
-
63708400219 Upper Pod AssembledUpper Pod Assembled
-
64708400217 Door-Box Ass'YDoor-Box Ass'Y
-
65708400205 Switch BezelSwitch Bezel
-
66708400208 Upper FairingUpper Fairing
-
67710001511 RH Front Flasher UnitRH Front Flasher Unit
-
67710001510 LH Front Flasher UnitLH Front Flasher Unit
-
69250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
70516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
71708400127 Black Carbon Wind. Base LH. Model with Package TBlack Carbon Wind. Base LH. Model with Package T
-
71708400128 Black Carbon Wind. Base RH. Model with Package TBlack Carbon Wind. Base RH. Model with Package T
-
71708400127 Black Carbon Wind. Base LH. Model with Package LTD Monolith BlackBlack Carbon Wind. Base LH. Model with Package LTD Monolith Black
-
71708400128 Black Carbon Wind. Base RH. Model with Package LTD Monolith BlackBlack Carbon Wind. Base RH. Model with Package LTD Monolith Black
-
71708400185 Chrome Wind. Base LH. Model with Package LTD Red, Steel Black, WhiteChrome Wind. Base LH. Model with Package LTD Red, Steel Black, White
-
71708400186 Chrome Wind. Base LH. Model with Package LTD Red, Steel Black, WhiteChrome Wind. Base LH. Model with Package LTD Red, Steel Black, White
-
72705010625 SpringSpring
-
73250200024 Rubber Washer 5 mm. Model with Package LTD & TRubber Washer 5 mm. Model with Package LTD & T
-
74234041480 Flat Washer 4 mmFlat Washer 4 mm
-
75250000528 Torx Screw M5 X 20. Model with Package LTD & TTorx Screw M5 X 20. Model with Package LTD & T
-
80705006661 Spring. Model with Package LTD & TSpring. Model with Package LTD & T
-
80705006661 Spring. Model with Package LTD & TSpring. Model with Package LTD & T
-
85250000762 Torx Screw M5 X 25. Model with Package LTD & TTorx Screw M5 X 25. Model with Package LTD & T
-
90233251494 Elastic Flanged Nut M5. Model with Package LTD & TElastic Flanged Nut M5. Model with Package LTD & T
-
100708400213 Lever. Model with Package LTD & TLever. Model with Package LTD & T
-
105705011056 Stud. Model with Package LTD & TStud. Model with Package LTD & T
-
110234052670 Inox. Flat Washer M5. Model with Package LTD & TInox. Flat Washer M5. Model with Package LTD & T
-
115708400215 Receptacle. Model with Package LTD & TReceptacle. Model with Package LTD & T
