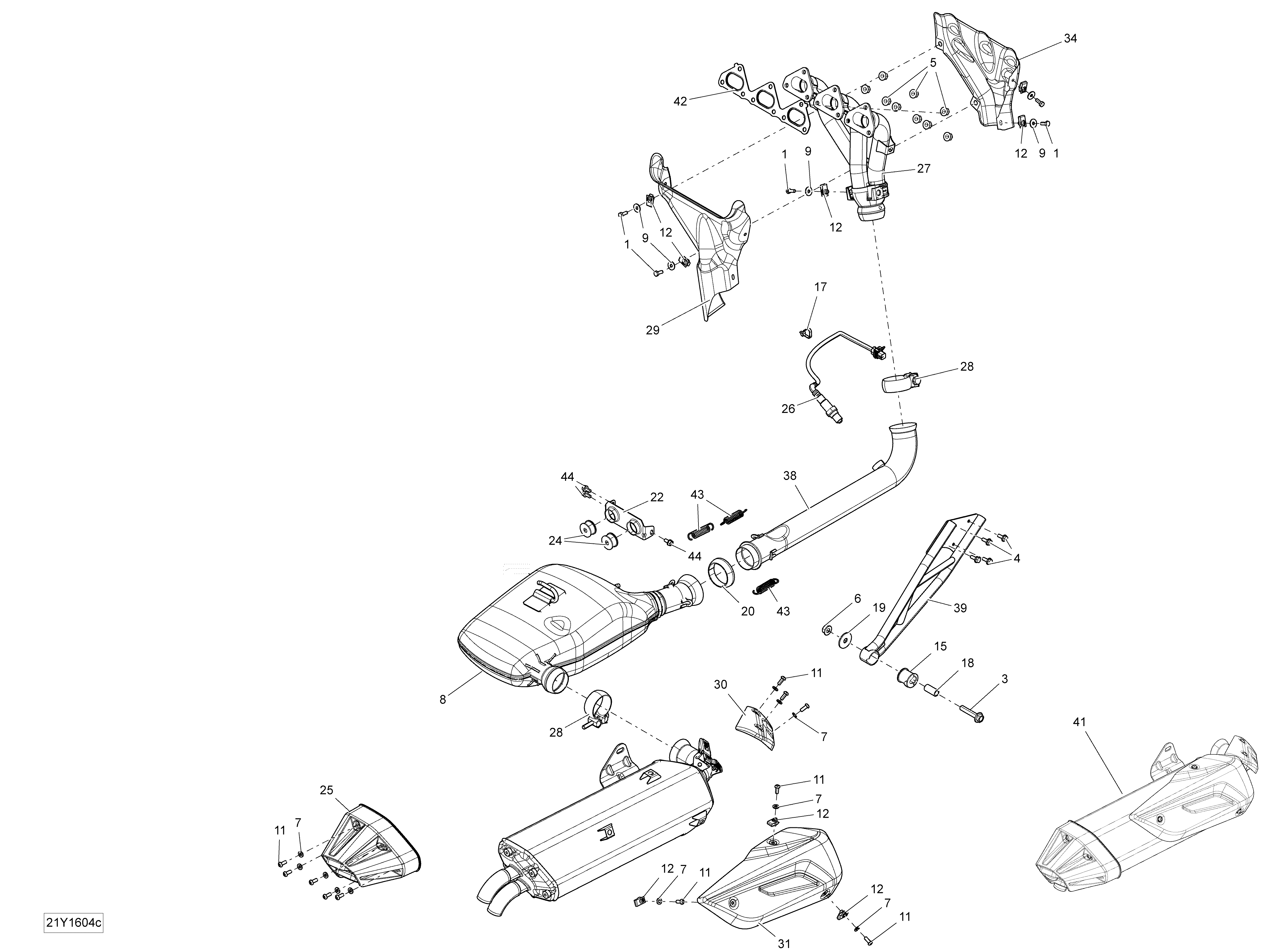

01- Exhaust System - Package T-LTD для BRP F3 - 2016
-
№АртикулНазвание
-
1207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
3207505046 Hex. Flanged Screw M10 X 50, Scotch GripHex. Flanged Screw M10 X 50, Scotch Grip
-
4207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
6233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
7234061670 Flat Washer 6 mmFlat Washer 6 mm
-
8707601881 Primary MufflerPrimary Muffler
-
9234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
11250000616 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
12250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
15293830162 Anti-Vibration RubberAnti-Vibration Rubber
-
17414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
18503189282 BushingBushing
-
19506150000 Washer 10 mmWasher 10 mm
-
20514054174 Exhaust GasketExhaust Gasket
-
22707600661 Front BracketFront Bracket
-
24707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
25707601048 Carbon Black Muffler End CapCarbon Black Muffler End Cap
-
26707600872 Oxygen SensorOxygen Sensor
-
27707600937 Exhaust ManifoldExhaust Manifold
-
28707600980 Exhaust ClampExhaust Clamp
-
29707601028 Inner Heat DeflectorInner Heat Deflector
-
30707601054 Carbon Black Heat ShieldCarbon Black Heat Shield
-
31707601381 Carbon Black Heat ShieldCarbon Black Heat Shield
-
34707601504 External Heat DeflectorExternal Heat Deflector
-
38707601605 Exhaust Tuned PipeExhaust Tuned Pipe
-
39707601683 Muffler SupportMuffler Support
-
41707601732 Muffler AssyMuffler Assy
-
42707601857 Exhaust SealExhaust Seal
-
43415107100 SpringSpring
-
44210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
