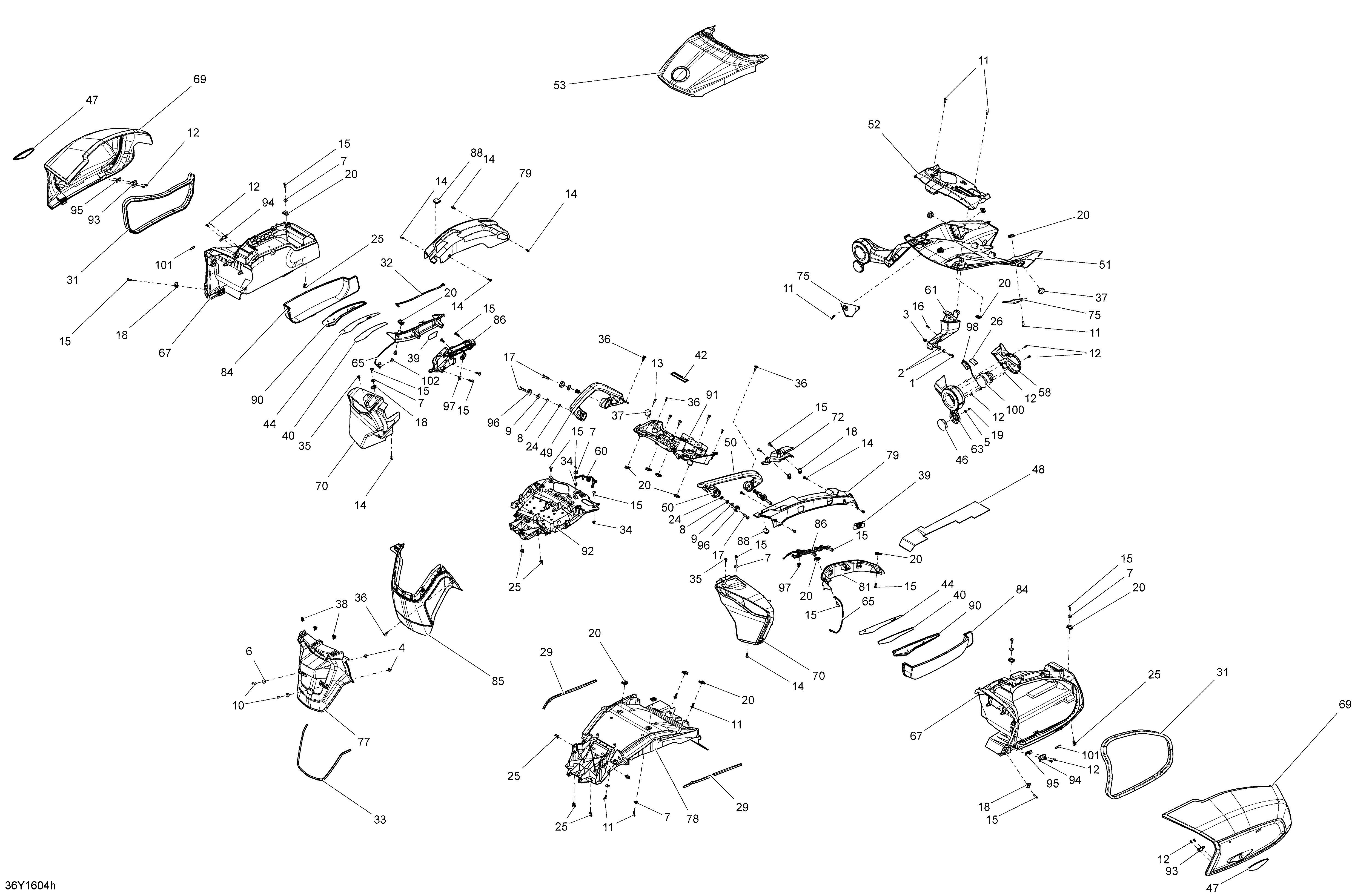

09- Body And Accessories - Luggages - Package LTD-LTD Special - Japan для BRP F3 - 2016
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2224060201 Flat WasherFlat Washer
-
3233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
5234051670 Flat Washer M5Flat Washer M5
-
6234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7234062670 Flat Washer, StainlessFlat Washer, Stainless
-
8234081670 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9234082410 Flat Washer 8 mmFlat Washer 8 mm
-
10250000303 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
12250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
13250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
14250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
15250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
16250000759 Torx-Truss Pt K40 X 16. Package STD, S and Special SeriesTorx-Truss Pt K40 X 16. Package STD, S and Special Series
-
16250000287 Flanged Torx Screw K40 X 16. Package STD, S and Special SeriesFlanged Torx Screw K40 X 16. Package STD, S and Special Series
-
17250000823 Socket Head Screw M8 X 30, Scotch GripSocket Head Screw M8 X 30, Scotch Grip
-
18250100113 Panel Nut, M6 X 1.0. Package STD, S and Special SeriesPanel Nut, M6 X 1.0. Package STD, S and Special Series
-
18250100113 Panel Nut, M6 X 1.0. Package T and LTDPanel Nut, M6 X 1.0. Package T and LTD
-
19250100152 Cap Nut M5Cap Nut M5
-
20250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
24250100181 Push NutPush Nut
-
25293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
26293250047 Neoprene SealNeoprene Seal
-
29293250385 Neoprene SealNeoprene Seal
-
31293250047 Neoprene SealNeoprene Seal
-
32293250087 Gasket, NeopreneGasket, Neoprene
-
33293250143 SealSeal
-
34293450232 InsertInsert
-
35293830005 Rubber BumperRubber Bumper
-
36414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
37414916600 Nylon CapNylon Cap
-
38517302785 ClipClip
-
39704905122 Load DecalLoad Decal
-
40704905407 F3-Ltd Luggage Decal LH. Package LTDF3-Ltd Luggage Decal LH. Package LTD
-
40704905408 F3-Ltd Luggage Decal RH. Package LTDF3-Ltd Luggage Decal RH. Package LTD
-
42704905455 Warning DecalWarning Decal
-
44704905469 Adhesif Double FaceAdhesif Double Face
-
46705002408 Red ReflectorRed Reflector
-
47705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
48705009908 Heat ShieldHeat Shield
-
49708001413 LH Passenger HandleLH Passenger Handle
-
50708001414 RH Passenger HandleRH Passenger Handle
-
51708001415 Under Tail CoverUnder Tail Cover
-
52708001492 Rear SupportRear Support
-
53708001786 Steel black Tail Fairing. Package LTD Monolith BlackSteel black Tail Fairing. Package LTD Monolith Black
-
53708002045 White Tail Fairing. Package LTD Pearl WhiteWhite Tail Fairing. Package LTD Pearl White
-
54708001788 RH Support. Package STD, S and Special SeriesRH Support. Package STD, S and Special Series
-
54708001787 LH Support. Package STD, S and Special SeriesLH Support. Package STD, S and Special Series
-
56708001624 LH Support CapLH Support Cap
-
57708001625 RH Support CapRH Support Cap
-
58708001803 RH Cover. Package STD, S and Special SeriesRH Cover. Package STD, S and Special Series
-
58708001802 LH Cover. Package STD, S and Special SeriesLH Cover. Package STD, S and Special Series
-
60708001910 LanyardLanyard
-
61708002223 Rh Flasher Support. Package STD, S and Special SeriesRh Flasher Support. Package STD, S and Special Series
-
61708002222 Lh Flasher Support. Package STD, S and Special SeriesLh Flasher Support. Package STD, S and Special Series
-
63708002235 Rh Tail Ligth Structure. Package STD, S and Special SeriesRh Tail Ligth Structure. Package STD, S and Special Series
-
63708002234 Lh Tail Light Structure. Package STD, S and Special SeriesLh Tail Light Structure. Package STD, S and Special Series
-
65708300385 Retainer CableRetainer Cable
-
67708301105 Rh Cargo. Package T and LTDRh Cargo. Package T and LTD
-
67708301104 Lh Cargo. Package T and LTDLh Cargo. Package T and LTD
-
69708301922 Rh Cover Vegas White Pearl. Package T and LTD Pearl WhiteRh Cover Vegas White Pearl. Package T and LTD Pearl White
-
69708301994 Rh Cover Monolith Black Satin. Package T and LTD Monolith BlackRh Cover Monolith Black Satin. Package T and LTD Monolith Black
-
69708301917 Lh Cover Vegas White Pearl. Package T and LTD Pearl WhiteLh Cover Vegas White Pearl. Package T and LTD Pearl White
-
69708301993 Lh Cover Monolith Black Satin. Package T and LTD Monolith BlackLh Cover Monolith Black Satin. Package T and LTD Monolith Black
-
70708301221 Light Supp RH. Package T and LTDLight Supp RH. Package T and LTD
-
70708301220 Light Supp LH. Package T and LTDLight Supp LH. Package T and LTD
-
72708301222 Lh ControlLh Control
-
75708301514 RH Front Cap. Package STD, S and Special SeriesRH Front Cap. Package STD, S and Special Series
-
75708301513 LH Front Cap. Package STD, S and Special SeriesLH Front Cap. Package STD, S and Special Series
-
77708301584 Rear FenderRear Fender
-
78708301609 Under TailUnder Tail
-
79708301616 R.H. Cargo Fairing. Package T and LTDR.H. Cargo Fairing. Package T and LTD
-
79708301615 L.H. Cargo Fairing. Package T and LTDL.H. Cargo Fairing. Package T and LTD
-
81708301664 R.H. Inner Cover. Package T and LTDR.H. Inner Cover. Package T and LTD
-
81708301663 L.H. Inner Cover. Package T and LTDL.H. Inner Cover. Package T and LTD
-
83708301697 Rh ControlRh Control
-
84708301862 R.H. Cargo Separator. Package T and LTDR.H. Cargo Separator. Package T and LTD
-
84708301719 L.H. Cargo Separator. Package T and LTDL.H. Cargo Separator. Package T and LTD
-
85708301747 Rear Fender ExtentionRear Fender Extention
-
86708301794 Lh.Latch AssemblyLh.Latch Assembly
-
87708301795 Rh.Latch AssemblyRh.Latch Assembly
-
88708301805 Antena CapAntena Cap
-
90708301588 Chrome Moulding RH. Package LTD WhiteChrome Moulding RH. Package LTD White
-
90708301587 Chrome Moulding LH. Package LTD WhiteChrome Moulding LH. Package LTD White
-
90708301840 Black Carbon Moulding RH. Package T and LTD Monolith BlackBlack Carbon Moulding RH. Package T and LTD Monolith Black
-
90708301839 Black Carbon Moulding LH. Package T and LTD Monolith BlackBlack Carbon Moulding LH. Package T and LTD Monolith Black
-
91708301698 Support AssemblySupport Assembly
-
92708302006 Electronic Support AssemblyElectronic Support Assembly
-
93708302044 Female HingeFemale Hinge
-
94708302045 Male HingeMale Hinge
-
95708302046 Retaining PlateRetaining Plate
-
96708302048 BushingBushing
-
97710002033 HolderHolder
-
98710004056 Rear LightRear Light
-
100710004057 Rear FlasherRear Flasher
-
101515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
102250000725 Screw M4 X 16Screw M4 X 16
