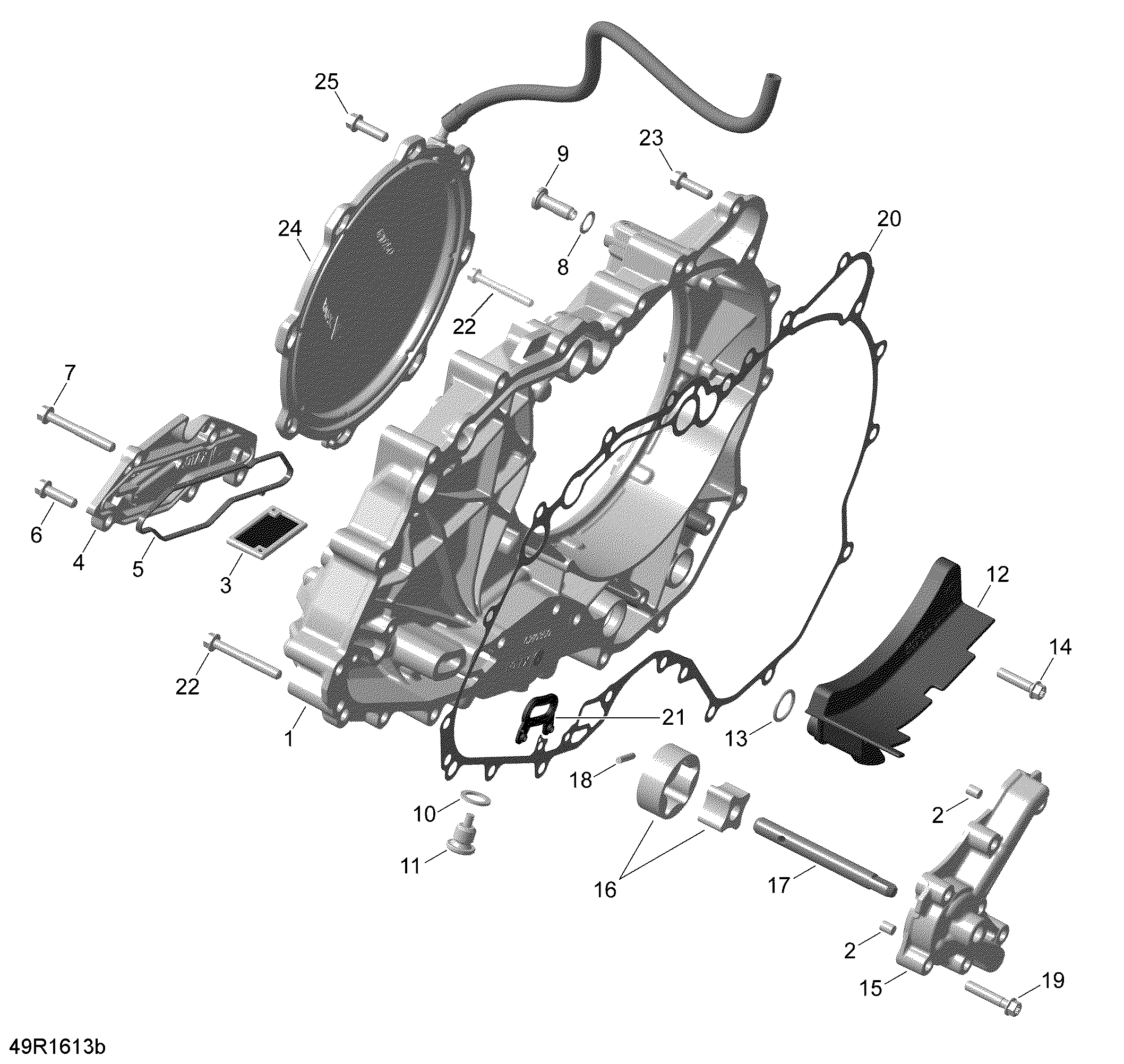

01- Clutch Cover - SM6 для BRP F3 - 2016
-
№АртикулНазвание
-
1420210353 Clutch Cover Ass'y. Includes 1 to 2Clutch Cover Ass'y. Includes 1 to 2
-
2420232210 Center PinCenter Pin
-
3420656990 Oil SieveOil Sieve
-
4420210871 Oil Duct CoverOil Duct Cover
-
5420250630 GasketGasket
-
6420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
7420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
8420230150 Oil SealOil Seal
-
9420441701 Bolt M8 X 1Bolt M8 X 1
-
10420250640 Copper WasherCopper Washer
-
11420241782 Magnetic Drain Plug M12 X 1.5Magnetic Drain Plug M12 X 1.5
-
12420224080 Oil Guiding PlateOil Guiding Plate
-
13420430220 O-RingO-Ring
-
14420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420612240 Oil Pump HousingOil Pump Housing
-
16420956278 Oil Pump RotorOil Pump Rotor
-
17420637140 Oil Pump ShaftOil Pump Shaft
-
18420232731 Needle PinNeedle Pin
-
19420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
20420450032 Gasket. Include 21Gasket. Include 21
-
21420450032 Gasket. Include 20Gasket. Include 20
-
22420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
23420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
24420212237 Diaphragm CoverDiaphragm Cover
-
25420440209 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
