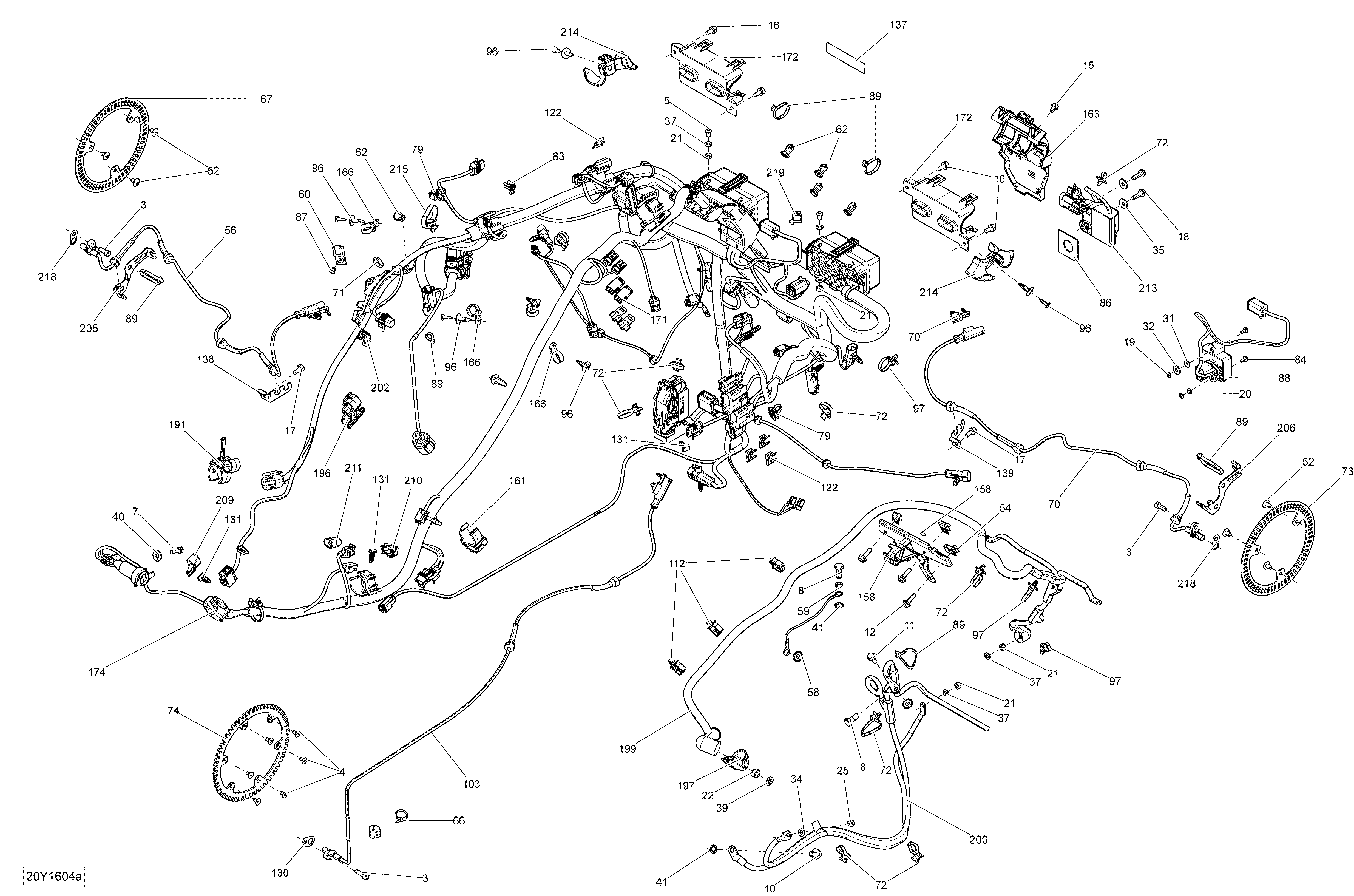

10- Electrical System - Package T-LTD - General для BRP F3 - 2016
-
№АртикулНазвание
-
3205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
4205851036 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
5205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
7207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
8207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
10207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
11207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
12207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
16210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
17210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
18210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
19211100002 Push NutPush Nut
-
20213200016 Flat Washer, EmhartFlat Washer, Emhart
-
21232061600 Hex. Nut M6Hex. Nut M6
-
22232081414 Hex. Nut M8Hex. Nut M8
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
31234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
32234052400 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
34234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
35234062410 Flat Washer 6 mmFlat Washer 6 mm
-
37234161601 Lock Washer Helical M6Lock Washer Helical M6
-
39234181601 Lock Washer 8 mm, StainlessLock Washer 8 mm, Stainless
-
40234281704 Spring Washer M8Spring Washer M8
-
41234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
52250000747 TORX-TRUSS M/S M6 X 10TORX-TRUSS M/S M6 X 10
-
54250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
56710004923 Speed SensorSpeed Sensor
-
58250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
59250200111 WasherWasher
-
60270000141 ClipClip
-
62293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
66293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
67705601512 Front Sensor WheeelFront Sensor Wheeel
-
70710004923 Speed SensorSpeed Sensor
-
71293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
72293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
73705601512 Front Sensor WheeelFront Sensor Wheeel
-
74705601372 Sensor WheelSensor Wheel
-
79293750058 Locking Tie RapLocking Tie Rap
-
83293750063 Clip Tie-RapClip Tie-Rap
-
84250000674 Hex. Screw Forming M4 X 16Hex. Screw Forming M4 X 16
-
86293830091 Rubber BumperRubber Bumper
-
87390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
88710003142 Configuration ModuleConfiguration Module
-
89414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
96414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
97515175220 Tie RapTie Rap
-
103706202361 Speed SensorSpeed Sensor
-
112709000634 Harness SupportHarness Support
-
122710001222 LockLock
-
130710002023 ShimShim
-
131710002033 HolderHolder
-
137710003077 R/L Label DecalR/L Label Decal
-
138710003156 Speed Sensor HolderSpeed Sensor Holder
-
139710003157 Speed Sensor HolderSpeed Sensor Holder
-
158710004256 Connector SupportConnector Support
-
161710004299 Cable SupportCable Support
-
163710004308 Wire SupportWire Support
-
166710004424 Tie RapTie Rap
-
171710004456 Connector With CapConnector With Cap
-
172710004472 Fuse Holder SupportFuse Holder Support
-
174710004601 Harness, Frame. Engine SM6Harness, Frame. Engine SM6
-
174710004602 Harness, Frame. Engine SE6Harness, Frame. Engine SE6
-
191710004613 SupportSupport
-
196710004669 Wire SupportWire Support
-
197
-
199710004736 Positive CablePositive Cable
-
200710004738 Start CableStart Cable
-
202710004794 Harness HolderHarness Holder
-
203710005134 Tank CableTank Cable
-
205710004860 Support-Wire LHSupport-Wire LH
-
206710004861 Support-Wire RHSupport-Wire RH
-
209710004902 Connector PlugConnector Plug
-
210710004903 Connector PlugConnector Plug
-
211710004906 Connector PlugConnector Plug
-
213710004916 Dess ModuleDess Module
-
214710004931 Harness HolderHarness Holder
-
215710004947 Tie RapTie Rap
-
219710005037 ClipClip
