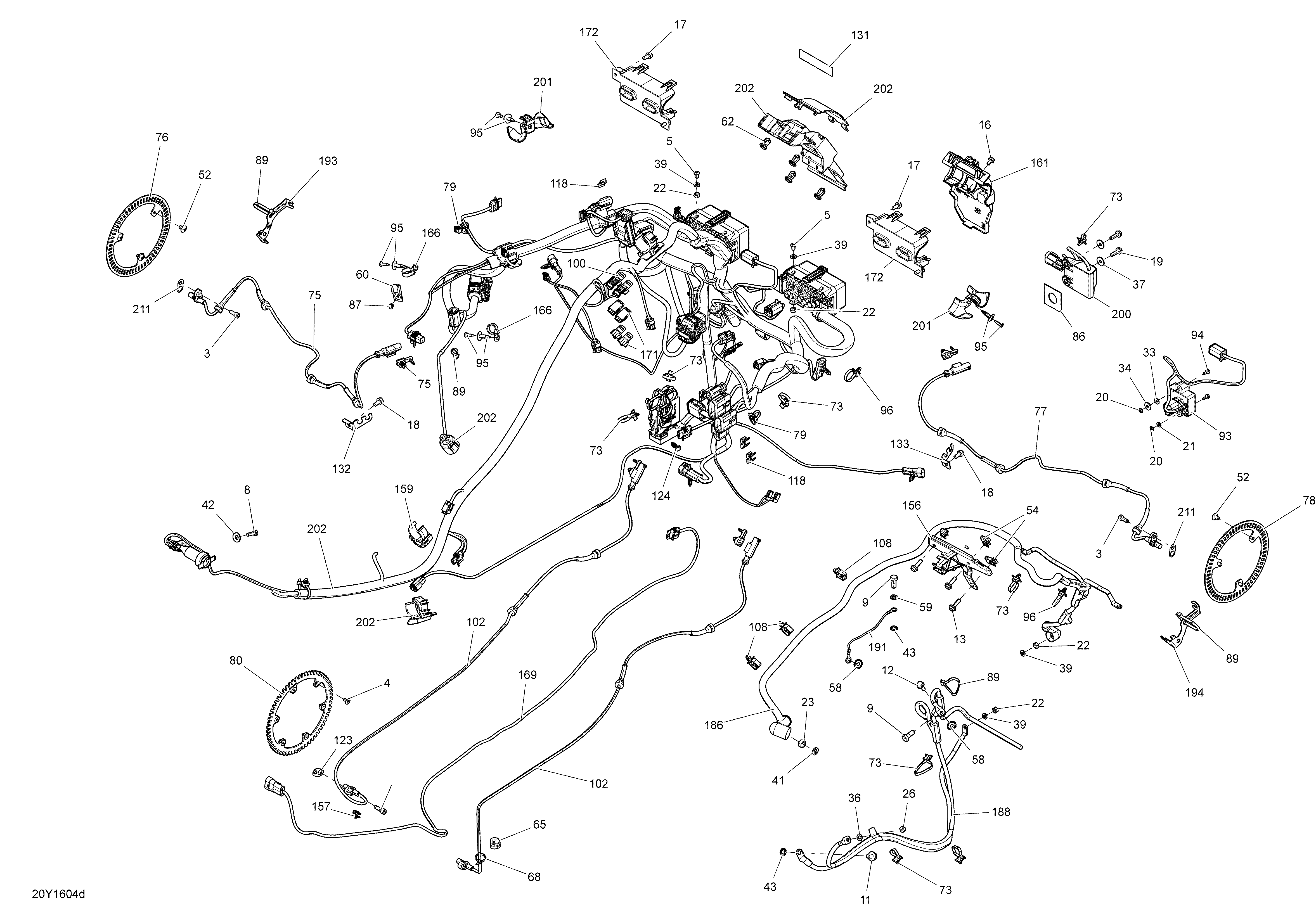

10- Electrical System - Package Standard-S-Special - General для BRP F3 - 2016
-
№АртикулНазвание
-
3205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
4205851036 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
5205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
8207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
9207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
11207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
12207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
17210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
18210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
19210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
20211100002 Push NutPush Nut
-
21213200016 Flat Washer, EmhartFlat Washer, Emhart
-
22232061600 Hex. Nut M6Hex. Nut M6
-
23232081414 Hex. Nut M8Hex. Nut M8
-
26232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
33234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
34234052400 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
36234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
37234062410 Flat Washer 6 mmFlat Washer 6 mm
-
39234161601 Lock Washer Helical M6Lock Washer Helical M6
-
41234181601 Lock Washer 8 mm, StainlessLock Washer 8 mm, Stainless
-
42234281704 Spring Washer M8Spring Washer M8
-
43234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
52250000747 TORX-TRUSS M/S M6 X 10TORX-TRUSS M/S M6 X 10
-
54250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
58250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
59250200111 WasherWasher
-
60270000141 ClipClip
-
62293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
68293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
73293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
75710004923 Speed SensorSpeed Sensor
-
76705601512 Front Sensor WheelFront Sensor Wheel
-
77710004923 Speed SensorSpeed Sensor
-
78705601512 Front Sensor WheelFront Sensor Wheel
-
79293750058 Locking Tie RapLocking Tie Rap
-
80705601372 Sensor WheelSensor Wheel
-
86293830091 Rubber BumperRubber Bumper
-
87390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
89414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
93710003142 Configuration Module. AustraliaConfiguration Module. Australia
-
94250000674 Hex. Screw Forming M4 X 16. AustraliaHex. Screw Forming M4 X 16. Australia
-
95414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
96515175220 Tie RapTie Rap
-
102706202361 Speed SensorSpeed Sensor
-
108709000634 Harness SupportHarness Support
-
118710001222 LockLock
-
123710002023 ShimShim
-
124710002033 HolderHolder
-
131710003077 R/L Label DecalR/L Label Decal
-
132710003156 Speed Sensor HolderSpeed Sensor Holder
-
133710003157 Speed Sensor HolderSpeed Sensor Holder
-
156710004256 Connector SupportConnector Support
-
159710004299 Cable SupportCable Support
-
161710004308 Wire SupportWire Support
-
166710004424 Tie RapTie Rap
-
169710004455 Tail HarnessTail Harness
-
171710004456 Connector With CapConnector With Cap
-
172710004472 Fuse Holder SupportFuse Holder Support
-
186710004736 Positive CablePositive Cable
-
188710004738 Start CableStart Cable
-
191710005134 Tank CableTank Cable
-
193710004860 Support-Wire LHSupport-Wire LH
-
194710004861 Support-Wire RHSupport-Wire RH
-
200710004916 Dess ModuleDess Module
-
201710004931 Harness HolderHarness Holder
-
202710004939 Main Harness SE6. SE6Main Harness SE6. SE6
-
202710004938 Main Harness SM6. SM6Main Harness SM6. SM6
