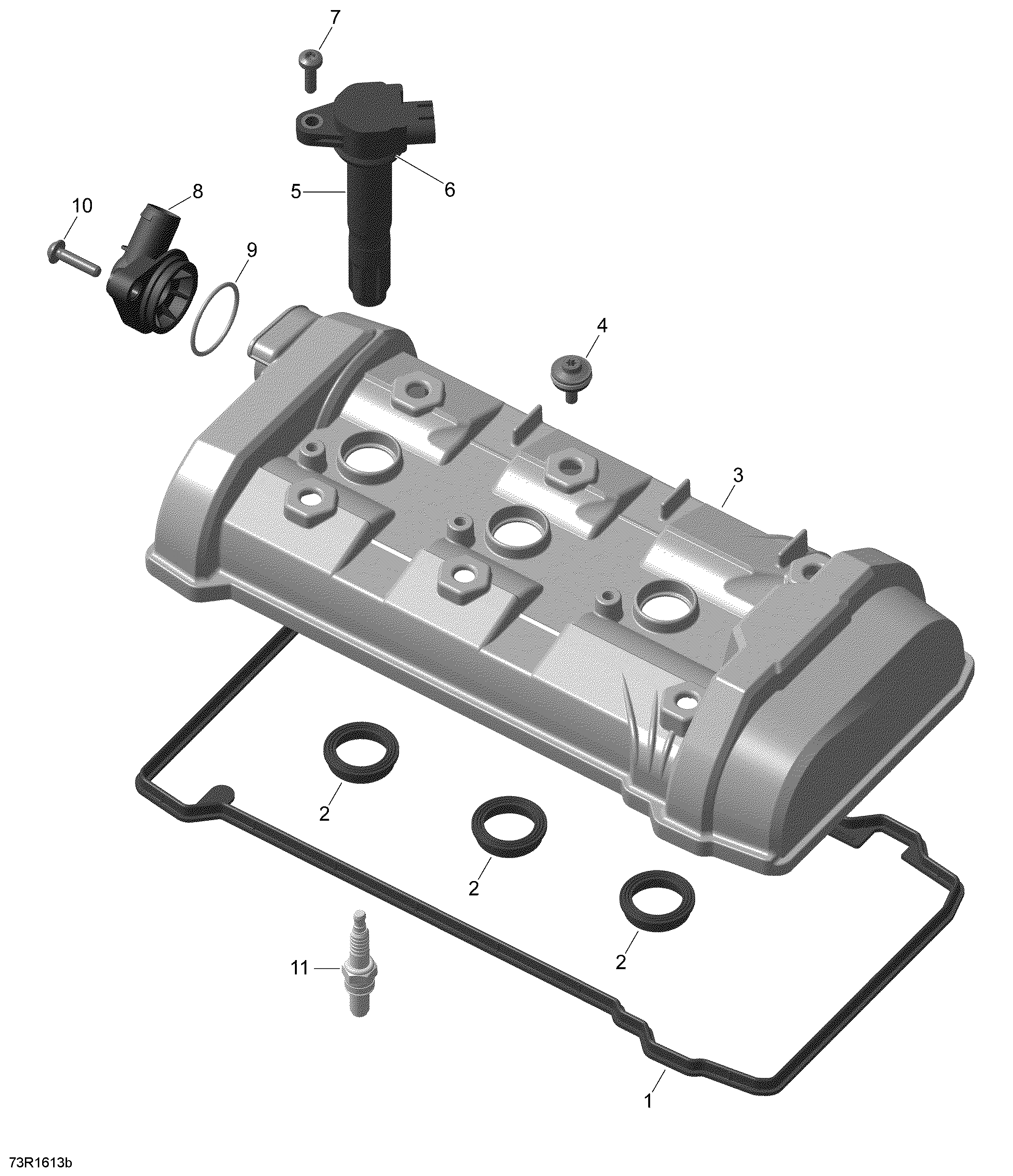

01- Valve Cover для BRP F3 - 2016
-
№АртикулНазвание
-
1420250220 GasketGasket
-
2420250240 GasketGasket
-
3420210191 Valve CoverValve Cover
-
4420440495 Torx Distance Screw M6Torx Distance Screw M6
-
5420666141 Ignition Coil Ass'y. Includes 5 to 6Ignition Coil Ass'y. Includes 5 to 6
-
6420201430 Protection CapProtection Cap
-
7420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420210630 ConnectorConnector
-
9420950870 O-RingO-Ring
-
10420841549 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
11415129670 Spark Plug, NGK MR7BI-8Spark Plug, NGK MR7BI-8
