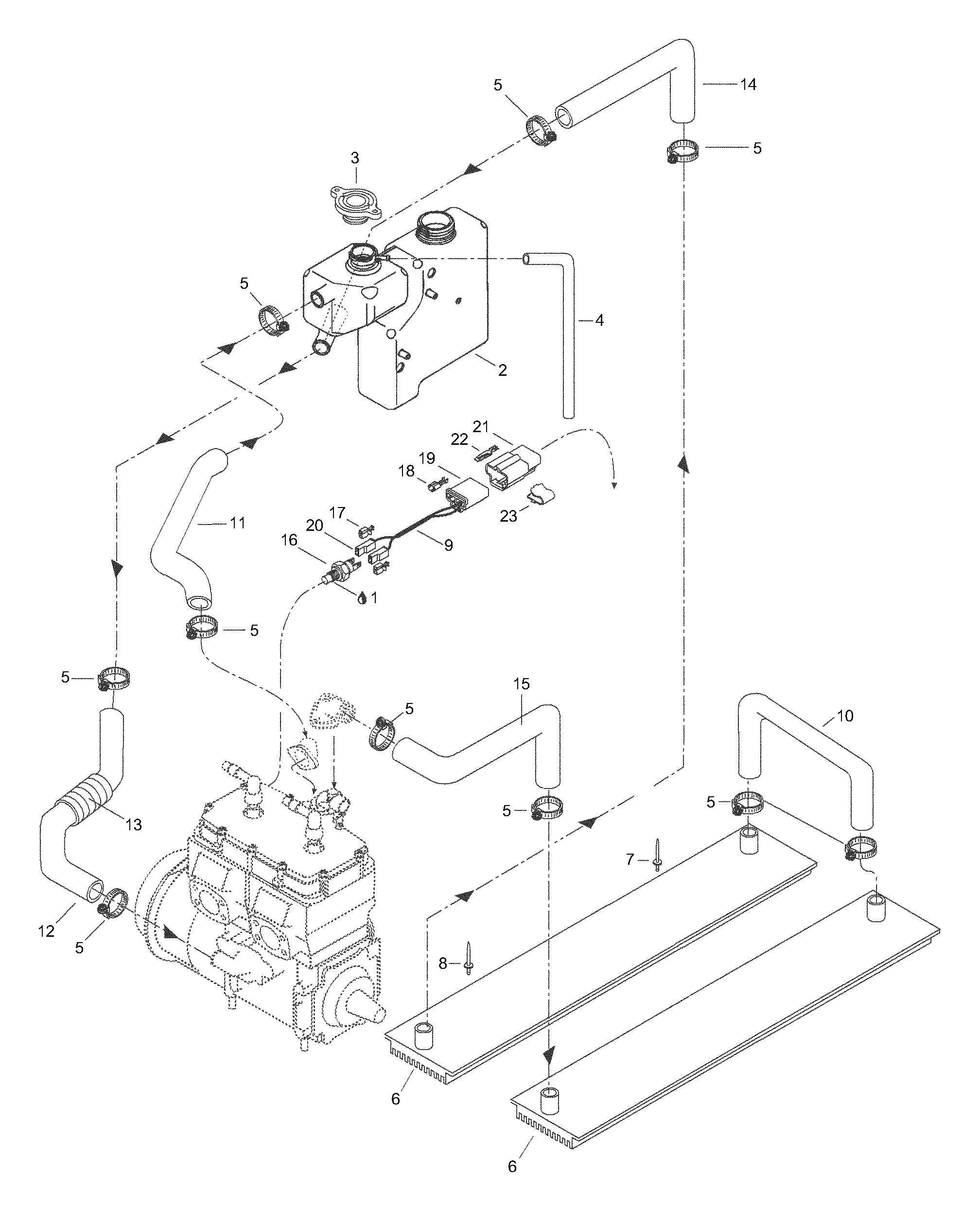

01- Cooling System для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
1293800018 Loctite 592, 50mlLoctite 592, 50ml
-
2519000014 Coolant tankCoolant tank
-
3414684700 Pressure capPressure cap
-
439038 HoseHose
-
5408800400 ClampClamp
-
65246789 R.H. radiatorR.H. radiator
-
65246788 L.H. radiatorL.H. radiator
-
736108 RivetRivet
-
836087 RivetRivet
-
105445970 Radiator hoseRadiator hose
-
11414972900 Engine outlet hoseEngine outlet hose
-
12415010400 Engine inlet hoseEngine inlet hose
-
1328026 TubingTubing
-
14414973000 Radiator outlet hoseRadiator outlet hose
-
15415028000 Radiator inlet hoseRadiator inlet hose
-
16512047000 SenderSender
-
17409010100 Female terminalFemale terminal
-
18515175253 Female terminalFemale terminal
-
19409008500 Connector housingConnector housing
-
20409010400 Connector housingConnector housing
-
21409008600 Connector housingConnector housing
-
22409206100 Female terminalFemale terminal
-
23409205600 ClipClip
