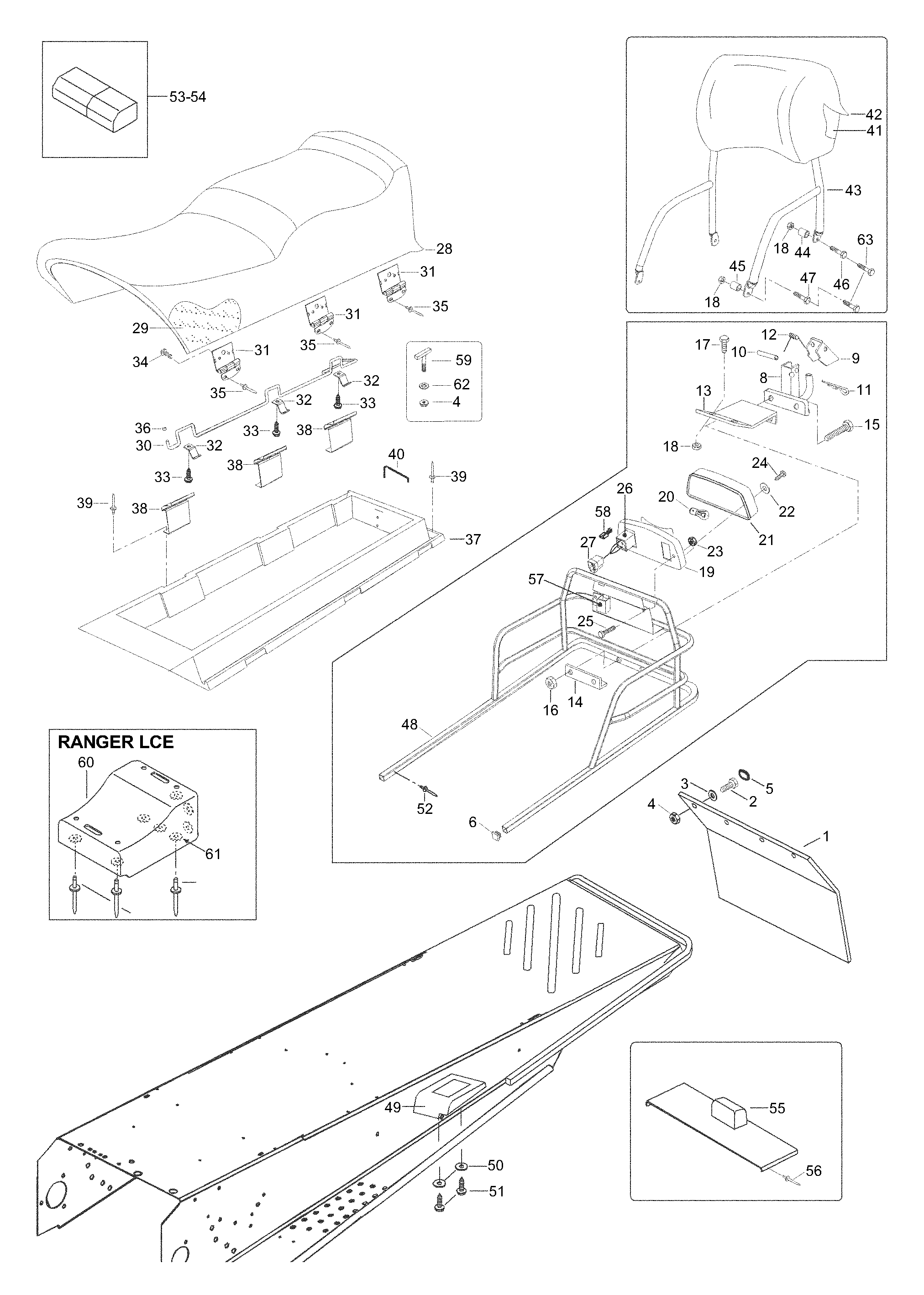

09- Body для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
15246860 SnowguardSnowguard
-
240078 Screw M6x22Screw M6x22
-
320009 WasherWasher
-
433200 Nut elastic M6Nut elastic M6
-
628232 CapCap
-
75343991 Hitch asst. Includes items 7 thru 12Hitch asst. Includes items 7 thru 12
-
8545224 HitchHitch
-
9545225 LockLock
-
1041012 Spring PinSpring Pin
-
1141029 Needle PinNeedle Pin
-
12545693 SpringSpring
-
135346841 Support plateSupport plate
-
145446842 Support plateSupport plate
-
1540016 Screw M10x45Screw M10x45
-
1633012 Nut elastic M10Nut elastic M10
-
1740336 Screw M8x20Screw M8x20
-
1833201 Nut elastic M8Nut elastic M8
-
195341214 Tail lamp assy. 19 Includes items 24Tail lamp assy. 19 Includes items 24
-
19414979400 Tail lamp housingTail lamp housing
-
20410504000 BulpBulp
-
21414513700 LensLens
-
22414516400 WasherWasher
-
2333200 Nut M6Nut M6
-
2440613 ScrewScrew
-
2540032 Screw M6x30Screw M6x30
-
26515175250 Dimmer switch blockDimmer switch block
-
27409204200 Connector housingConnector housing
-
285245230 Seat coverSeat cover
-
295145789 Seat foamSeat foam
-
41539399 Back rest stoppningBack rest stoppning
-
425340917 Back rest coverBack rest cover
-
435245709 BackrestBackrest
-
485246646 RackRack
-
49572088800 L.H. footrestL.H. footrest
-
49572088700 R.H. footrestR.H. footrest
-
50224061121 WasherWasher
-
5140870 ScrewScrew
-
5236070 RivetRivet
-
535445403 Tool box (with tools). Includes items 53 thru 54Tool box (with tools). Includes items 53 thru 54
-
54572036310 Tool boxTool box
-
555346996 Rear protectorRear protector
-
5636036 RivetRivet
-
575443460 CoverCover
-
58515175252 ConnectorConnector
-
59732601221 T-screwT-screw
-
60572051200 Rear trunkRear trunk
-
61234051410 WasherWasher
-
62732610072 Nut pushNut push
-
6340882 Screw M8x20Screw M8x20
