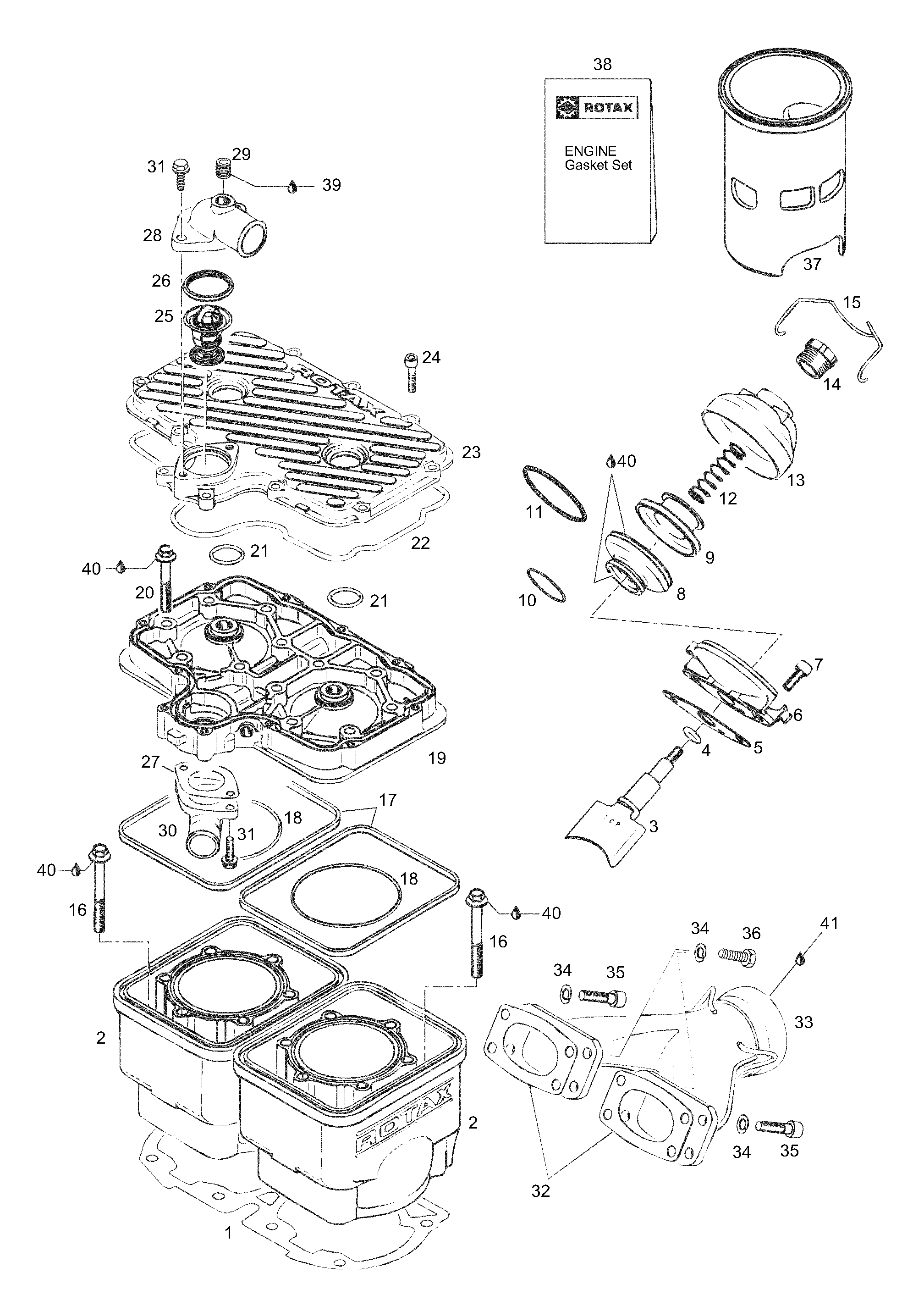

01- Cylinder для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
1420931361 Gasket, 0,4 mmGasket, 0,4 mm
-
2420923617 Cylinder assyCylinder assy
-
3420854300 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420250239 GasketGasket
-
6420854265 Valve rod housingValve rod housing
-
7420241236 Allen screw M6x16Allen screw M6x16
-
8420260728 BellowsBellows
-
9420854447 Exhaust valve pistonExhaust valve piston
-
10420838253 Hose springHose spring
-
11420239048 Hose springHose spring
-
12420239944 Compression springCompression spring
-
13420911551 Valve coverValve cover
-
14420241221 Adjustment screwAdjustment screw
-
15420838083 Spring clipSpring clip
-
16420841996 Screw M8x68,5Screw M8x68,5
-
17420850040 Rubber ringRubber ring
-
18420831792 O-ringO-ring
-
19420923167 Cylinderhead silverCylinderhead silver
-
20420640441 Screw M8 x 53,5Screw M8 x 53,5
-
21420430782 O-ringO-ring
-
22420931260 O-ringO-ring
-
23420923623 Cylinderhead coverCylinderhead cover
-
24420840861 Allen screw M6x25Allen screw M6x25
-
25420922515 Thermostat 42 degr.Thermostat 42 degr.
-
26420931270 Thermostat gasketThermostat gasket
-
27420850338 GasketGasket
-
28420922061 Bent outlet socketBent outlet socket
-
29420240480 Plug screw 1/8-27 NPTPlug screw 1/8-27 NPT
-
30420922480 Bent outlet socketBent outlet socket
-
31420941250 Taptite screw M6x20Taptite screw M6x20
-
32420850535 GasketGasket
-
33420973228 Exhaust manifold assyExhaust manifold assy
-
3420014 Lock washerLock washer
-
3540135 Allen screw M8x30Allen screw M8x30
-
3640036 Hex-screw M8x20Hex-screw M8x20
-
37420923156 Spare cylinder sleeveSpare cylinder sleeve
-
38420994228 Gasket setGasket set
-
39420297434 Loctite 76710Loctite 76710
-
41413710300 Loctite 17914, 80mlLoctite 17914, 80ml
