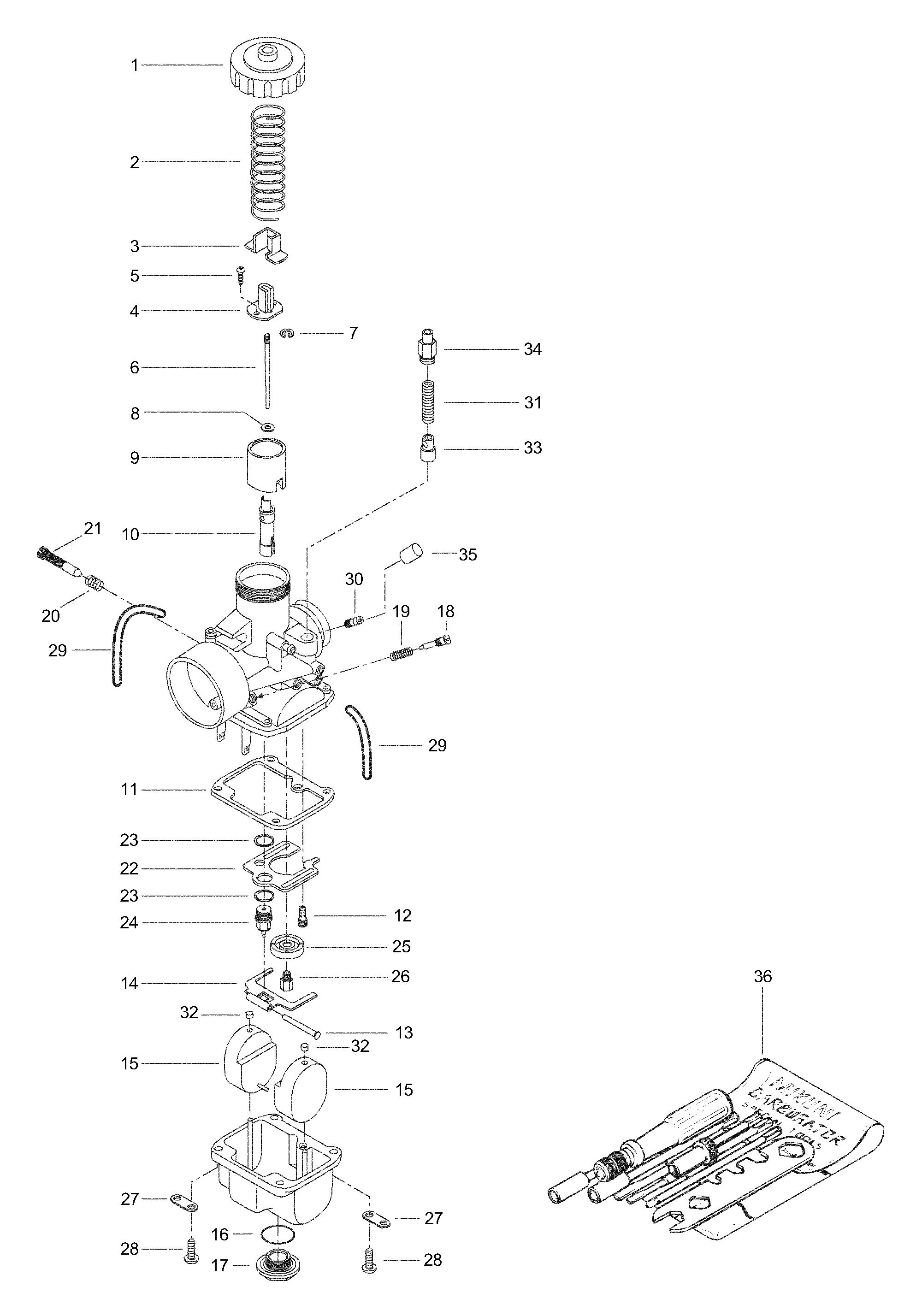

02- Carburetor для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
1404105100 CoverCover
-
2404154800 Throttle vale springThrottle vale spring
-
3404122100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw + washerScrew + washer
-
6404161820 Jet needle 6DGY9-2Jet needle 6DGY9-2
-
7404152400 E-ringE-ring
-
8404117000 O-ringO-ring
-
9404128400 Throttle valve 2.5Throttle valve 2.5
-
10404160900 Needle jet 480Q-3Needle jet 480Q-3
-
11404104700 GasketGasket
-
12404109500 Pilot jet 50Pilot jet 50
-
13404103300 Float barm pinFloat barm pin
-
14404105000 Float armFloat arm
-
15404105400 FloatFloat
-
16404101500 WasherWasher
-
17404105600 Plug screwPlug screw
-
18404149000 Air screwAir screw
-
19404139800 SpringSpring
-
20404101700 SpringSpring
-
21404102800 Throttle stop screwThrottle stop screw
-
23404101600 GasketGasket
-
24404147400 Needle valve 1.5VNeedle valve 1.5V
-
25404105500 Screw guideScrew guide
-
26404100500 Main jet 280, MAGMain jet 280, MAG
-
26404101200 Main jet 300, PTOMain jet 300, PTO
-
27404103000 Tube retainer plateTube retainer plate
-
28404102000 Screw + lock washerScrew + lock washer
-
29404161880 Vent tubeVent tube
-
30404153400 NippleNipple
-
31404127400 SpringSpring
-
32404105800 CapCap
-
33404161000 Plunger assyPlunger assy
-
34404161100 Support guideSupport guide
-
36404112000 Tool kitTool kit
