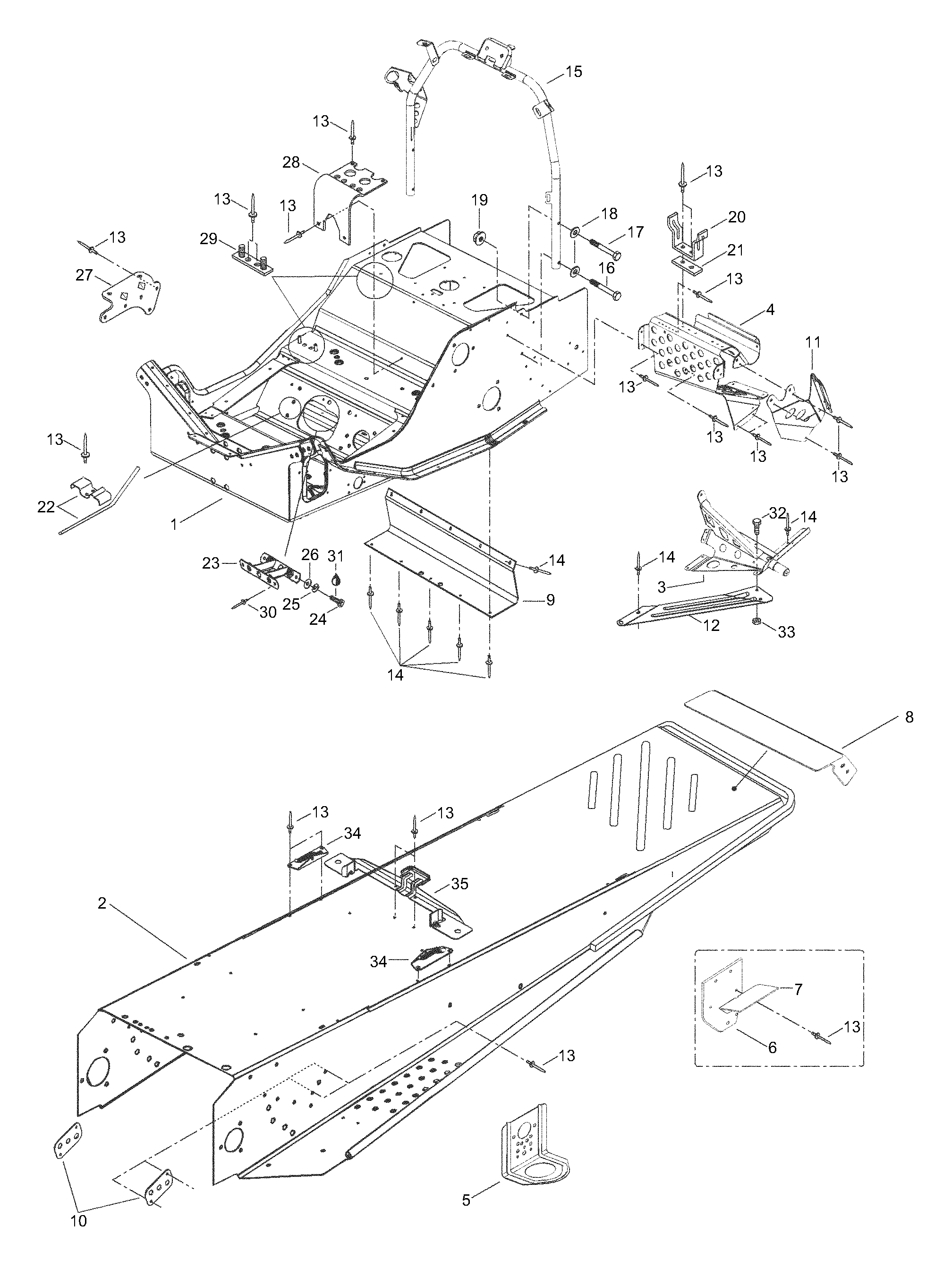

09- Frame для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
15146192 Frame assy. Includes items 1 thru 2Frame assy. Includes items 1 thru 2
-
35246775 R.H. supportR.H. support
-
35246776 L.H. supportL.H. support
-
4518318933 R.H. front footrestR.H. front footrest
-
4518318934 L.H. front footrestL.H. front footrest
-
5518321495 Front bracketFront bracket
-
65346835 Rear bracketRear bracket
-
75346836 Rear bracket supportRear bracket support
-
85246275 Rear plateRear plate
-
9518321867 DeflectorDeflector
-
105446847 Reinf., front armReinf., front arm
-
11518308715 Upper plate R.H.Upper plate R.H.
-
11518308714 Upper plate L.H.Upper plate L.H.
-
12518321958 R.H. reinf. plateR.H. reinf. plate
-
12518321959 L.H. reinf. plateL.H. reinf. plate
-
1336489 RivetRivet
-
14390402200 RivetRivet
-
15518321428 Handle steering supp.Handle steering supp.
-
1640002 Screw M6x40Screw M6x40
-
1740003 Screw M6x35Screw M6x35
-
1820003 WasherWasher
-
1933200 Nut M6Nut M6
-
20518202100 Pulley Guard bracketPulley Guard bracket
-
21518207500 ReinforcementReinforcement
-
22518313700 Rope guideRope guide
-
23518304741 Reinforcement plateReinforcement plate
-
2440036 Screw M8x20Screw M8x20
-
2520014 Spring washerSpring washer
-
26224081201 WasherWasher
-
27518206300 Muffler supportMuffler support
-
28518310400 Air intake supportAir intake support
-
29518315300 Support plateSupport plate
-
3036108 RivetRivet
-
31293800005 Loctite 270, 250mlLoctite 270, 250ml
-
3240366 Screw M5x16Screw M5x16
-
3333062 Nut M5Nut M5
-
34517266900 Tank bracket R.H.Tank bracket R.H.
-
34517267000 Tank bracket L.H.Tank bracket L.H.
-
355347070 Seat bracketSeat bracket
