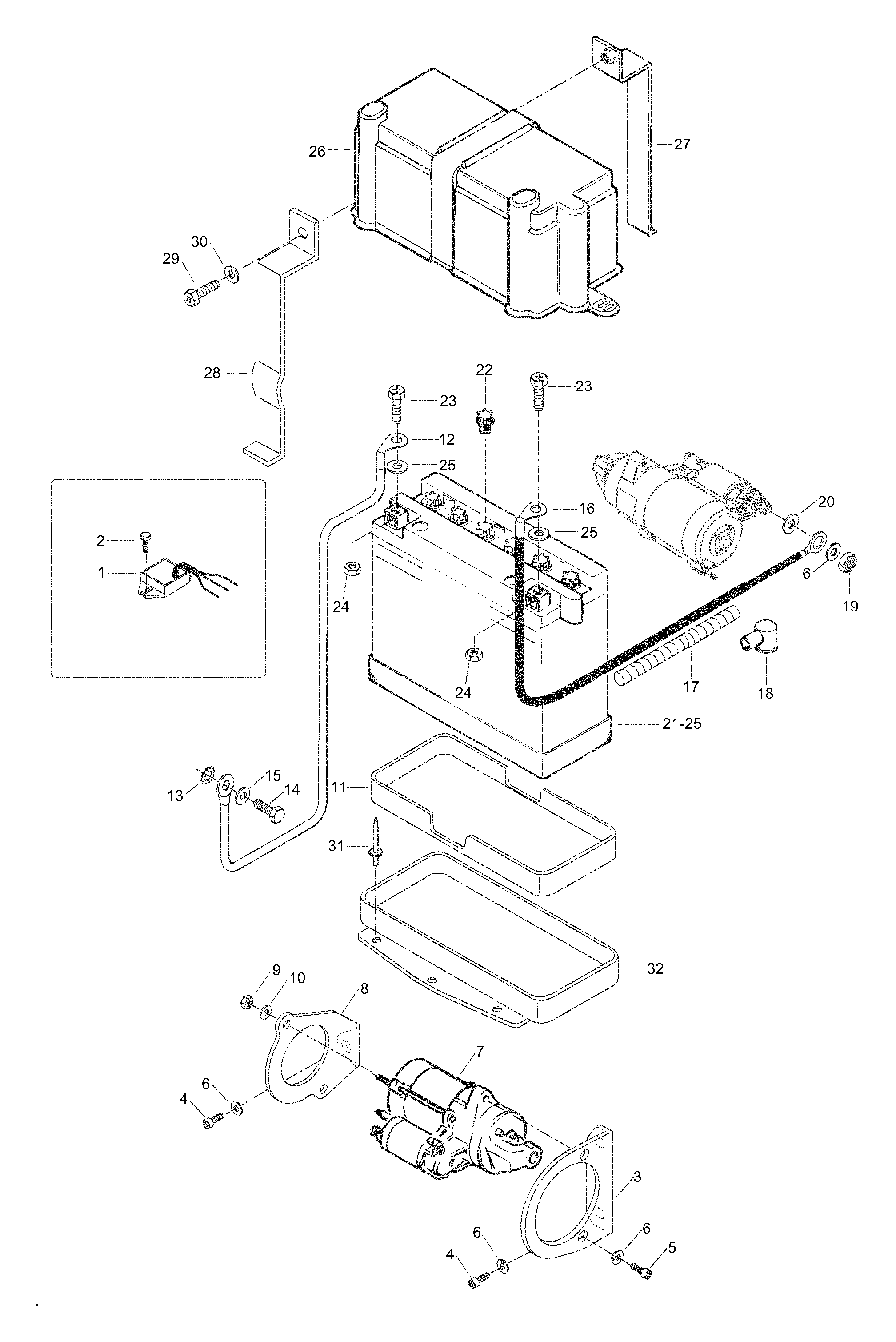

10- Electric Starter для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
1515163900 Voltage regulatorVoltage regulator
-
240322 Forming screw M6x16Forming screw M6x16
-
3420853730 Starter bracket, PTO-sideStarter bracket, PTO-side
-
440305 Allen screw M8x20Allen screw M8x20
-
540289 Allen screw M8x25Allen screw M8x25
-
620014 Spring washerSpring washer
-
7410212400 StarterStarter
-
8420953011 Starter bracket, MAG-sideStarter bracket, MAG-side
-
933009 Nut elastic M5Nut elastic M5
-
10391301700 WasherWasher
-
12515175425 Ground wireGround wire
-
1320109 Ext. Tooth lock washerExt. Tooth lock washer
-
1520104 Washer, hardenedWasher, hardened
-
16515161300 Battery wireBattery wire
-
1728012 Spiral tubeSpiral tube
-
18570151000 Cap protectionCap protection
-
1933003 Nut M8Nut M8
-
2020004 WasherWasher
-
21410301100 Battery. 21 Includes items 25Battery. 21 Includes items 25
-
22410300800 Battery capBattery cap
-
23207161644 Screw M6x16Screw M6x16
-
24232061414 Nut M6Nut M6
-
25391302100 WasherWasher
-
26570022000 Battery coverBattery cover
-
27517286000 Steel stripSteel strip
-
28517286100 Steel stripSteel strip
-
2940864 ScrewScrew
-
3020013 Spring washerSpring washer
-
31390402200 RivetRivet
-
32517286200 Steel stripSteel strip
