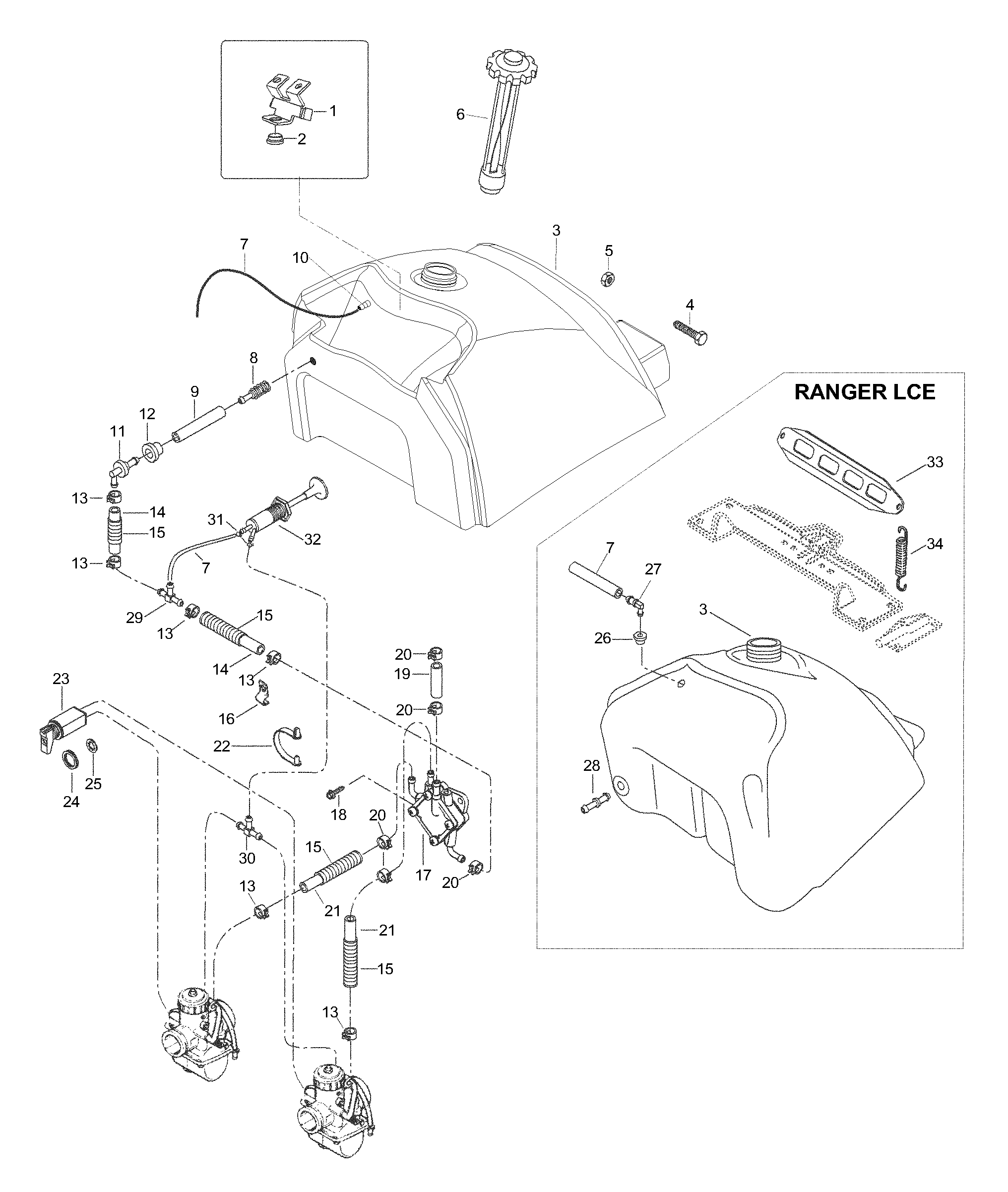

02- Fuel Tank для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
3572108900 Fuel tankFuel tank
-
6572161200 Fuel tank capFuel tank cap
-
739035 Hose 5/3Hose 5/3
-
8414865700 Fuel filterFuel filter
-
939030 Fuel line 8/5Fuel line 8/5
-
12570045500 GrommetGrommet
-
13414554800 ClampClamp
-
1439004 Fuel line 8/5Fuel line 8/5
-
1528012 TubingTubing
-
16415018200 ClipClip
-
17403801100 Fuel pumpFuel pump
-
1840322 Screw M6x16Screw M6x16
-
1939001 Fuel line 11/6Fuel line 11/6
-
20414420700 ClampClamp
-
2139060 Fuel line 8/5.5Fuel line 8/5.5
-
26513032908 GrommetGrommet
-
27414814100 Male connectorMale connector
-
28414518500 Male connectorMale connector
-
2921067 T-fittingT-fitting
-
3021062 T-fittingT-fitting
-
31543230 ClampClamp
-
32415060500 PrimerPrimer
-
33517249200 Fuel tank supportFuel tank support
-
34414893700 FjaderFjader
