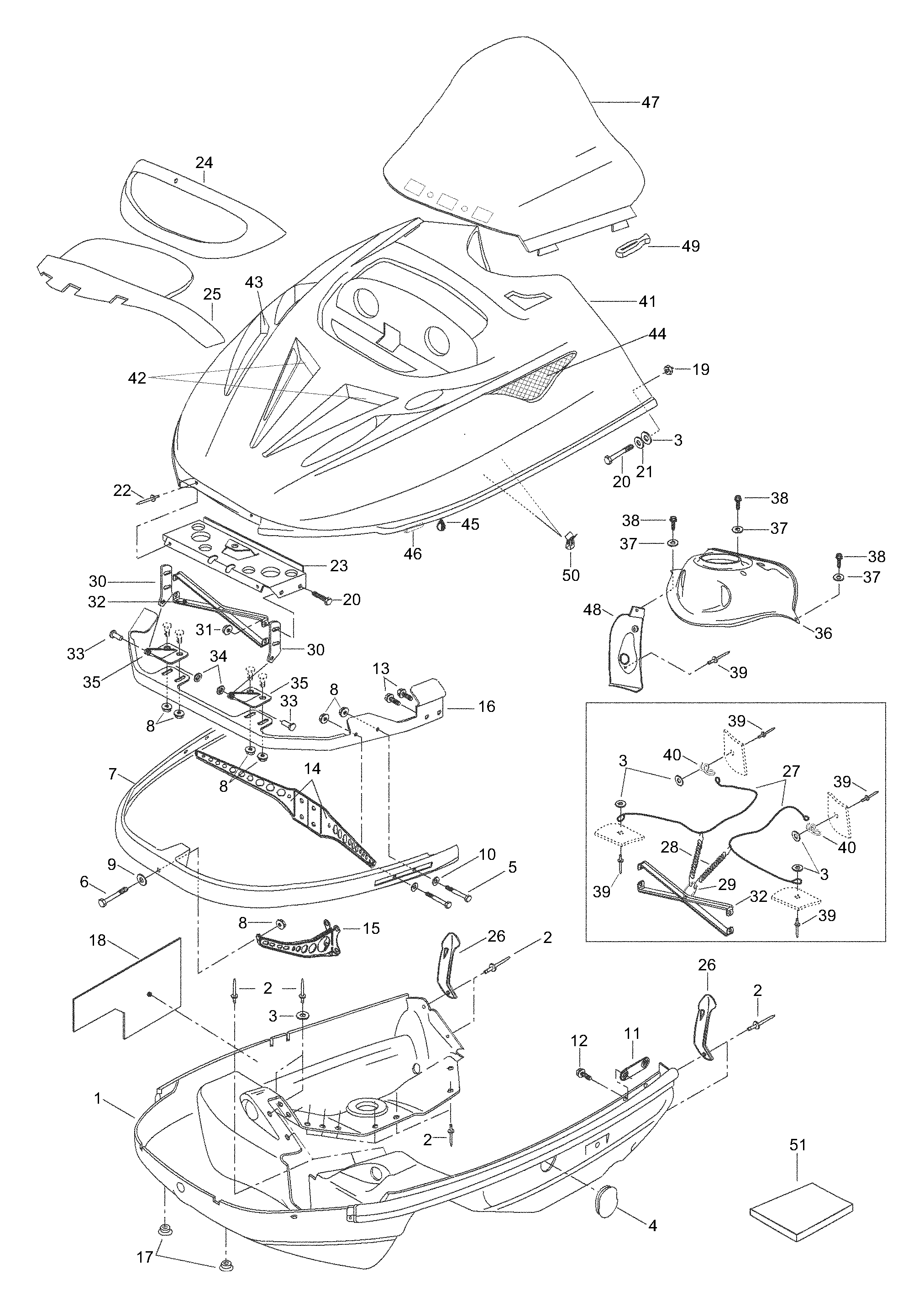

09- Hood для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
1502006572 Bottom panBottom pan
-
2390907700 RivetRivet
-
320008 WasherWasher
-
4570053702 Cap-pan bottomCap-pan bottom
-
540083 Screw M6x30Screw M6x30
-
640002 Screw M6x40Screw M6x40
-
7517265400 BumperBumper
-
833200 Nut elastic M6Nut elastic M6
-
9224061201 WasherWasher
-
10224061121 WasherWasher
-
11517267100 Side bracketSide bracket
-
1240322 Screw M6x16Screw M6x16
-
1340870 Self tapping screwSelf tapping screw
-
14517295100 Support R.H.Support R.H.
-
14517295000 Support L.H.Support L.H.
-
15517294500 Front supportFront support
-
16517296600 Hinge bracketHinge bracket
-
17572072100 GrommetGrommet
-
18415064900 Reflection sheetReflection sheet
-
19517245800 Locking pieceLocking piece
-
2040366 Screw M5x16Screw M5x16
-
2120013 Spring washerSpring washer
-
2236009 RivetRivet
-
235245433 Support plateSupport plate
-
24517302158 Lamp moldingLamp molding
-
25517302003 Support-windshieldSupport-windshield
-
26570027100 Hood latchHood latch
-
27415093900 Cab retainer cableCab retainer cable
-
28414763300 SpringSpring
-
29415058300 RingRing
-
30517261100 Upper hingeUpper hinge
-
3133062 Nut elastic M5Nut elastic M5
-
32517278100 Hood reinforcerHood reinforcer
-
33390906200 PinPin
-
34389804300 Nut pushNut push
-
35517289900 Hinge, lowerHinge, lower
-
36517302160 Switch dashSwitch dash
-
37391301600 WasherWasher
-
38732600030 ScrewScrew
-
3936037 RivetRivet
-
405442870 Retainer Cable ClipRetainer Cable Clip
-
415146520 HoodHood
-
425345687 Grill, frontGrill, front
-
435345685 Lower grill, R.H.Lower grill, R.H.
-
435345686 Lower grill, L.H.Lower grill, L.H.
-
445345683 Upper grill, R.H.Upper grill, R.H.
-
445345684 Upper grill, L.H.Upper grill, L.H.
-
465442148 Rubber ribbon of wind.Rubber ribbon of wind.
-
475145274 WindscreenWindscreen
-
48572052100 Dash-handleDash-handle
-
49570023800 Windshield latchWindshield latch
-
50517302183 ClipClip
-
51414632400 Foam (74'’x34'’x1/2'’)Foam (74'’x34'’x1/2'’)
