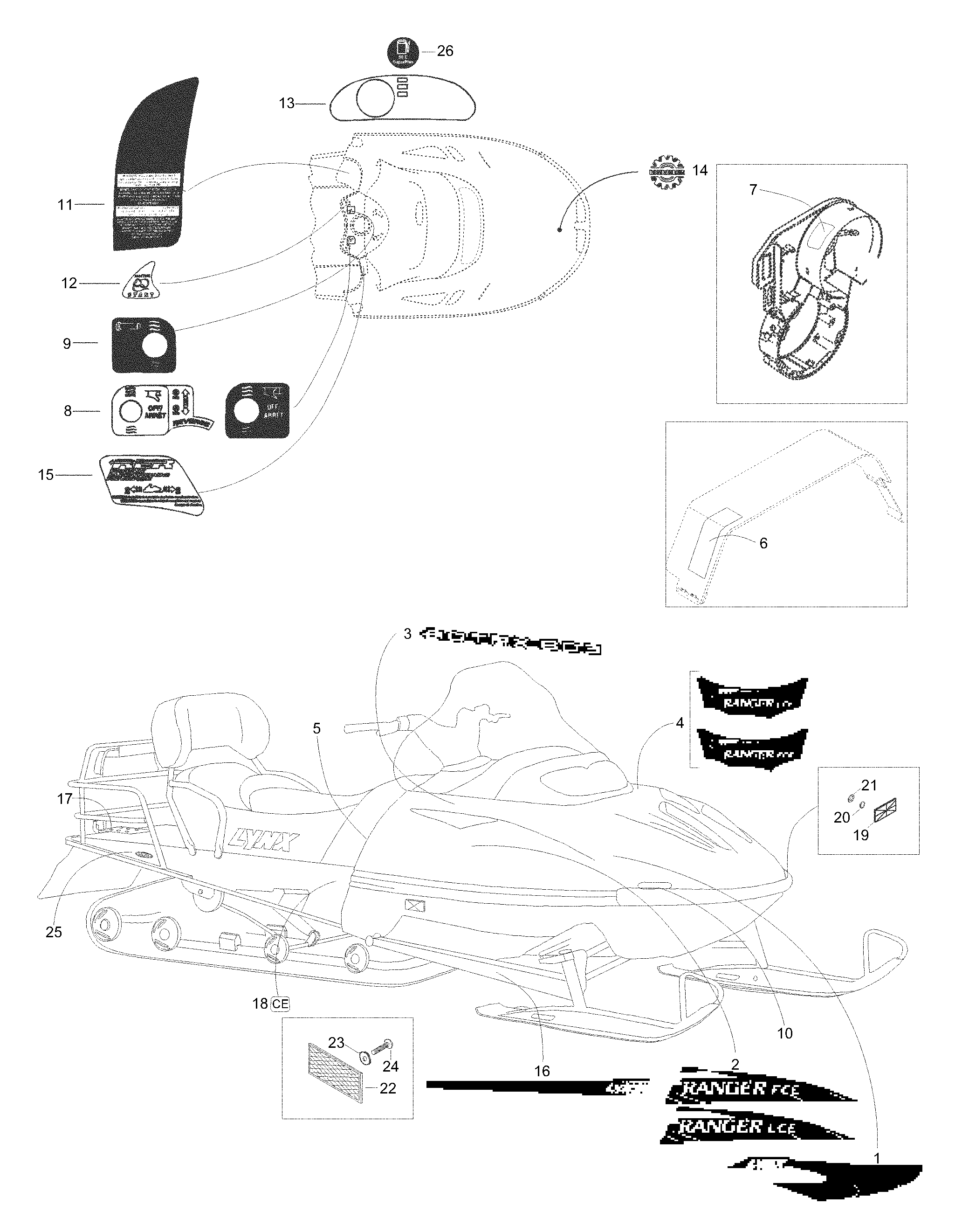

09- Decals для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
5146580 Hood decal assy 5incl. decals 1, 2, 3 and 4Hood decal assy 5incl. decals 1, 2, 3 and 4
-
15347008 R.H. hood decal, frontR.H. hood decal, front
-
15347007 L.H. hood decal, frontL.H. hood decal, front
-
25346506 R.H. hood decalR.H. hood decal
-
25346505 L.H. hood decalL.H. hood decal
-
35346486 Rotax 494, decalRotax 494, decal
-
45346507 Front hood decalFront hood decal
-
5544068 Oil check decalOil check decal
-
6546820 Instruction labelInstruction label
-
8414898400 Heat thumb decalHeat thumb decal
-
9414898500 Dash decalDash decal
-
10418001009 Reflector decalReflector decal
-
11414935000 Warning decalWarning decal
-
12516000271 Electric decalElectric decal
-
135347153 Dash dekalDash dekal
-
14516000983 Logo BombardierLogo Bombardier
-
165346510 Swing Arm Decal R.H.Swing Arm Decal R.H.
-
165346511 Swing Arm Decal L.H.Swing Arm Decal L.H.
-
175447073 Warning labelWarning label
-
185445636 CE-decalCE-decal
-
1921148 Reflector, WhiteReflector, White
-
2048227 O-ringO-ring
-
2141034 Locking ringLocking ring
-
22414510200 Reflector, yellowReflector, yellow
-
2320018 WasherWasher
-
2440070 ScrewScrew
-
2521121 Reflector, yellowReflector, yellow
-
265447019 Fuel labelFuel label
