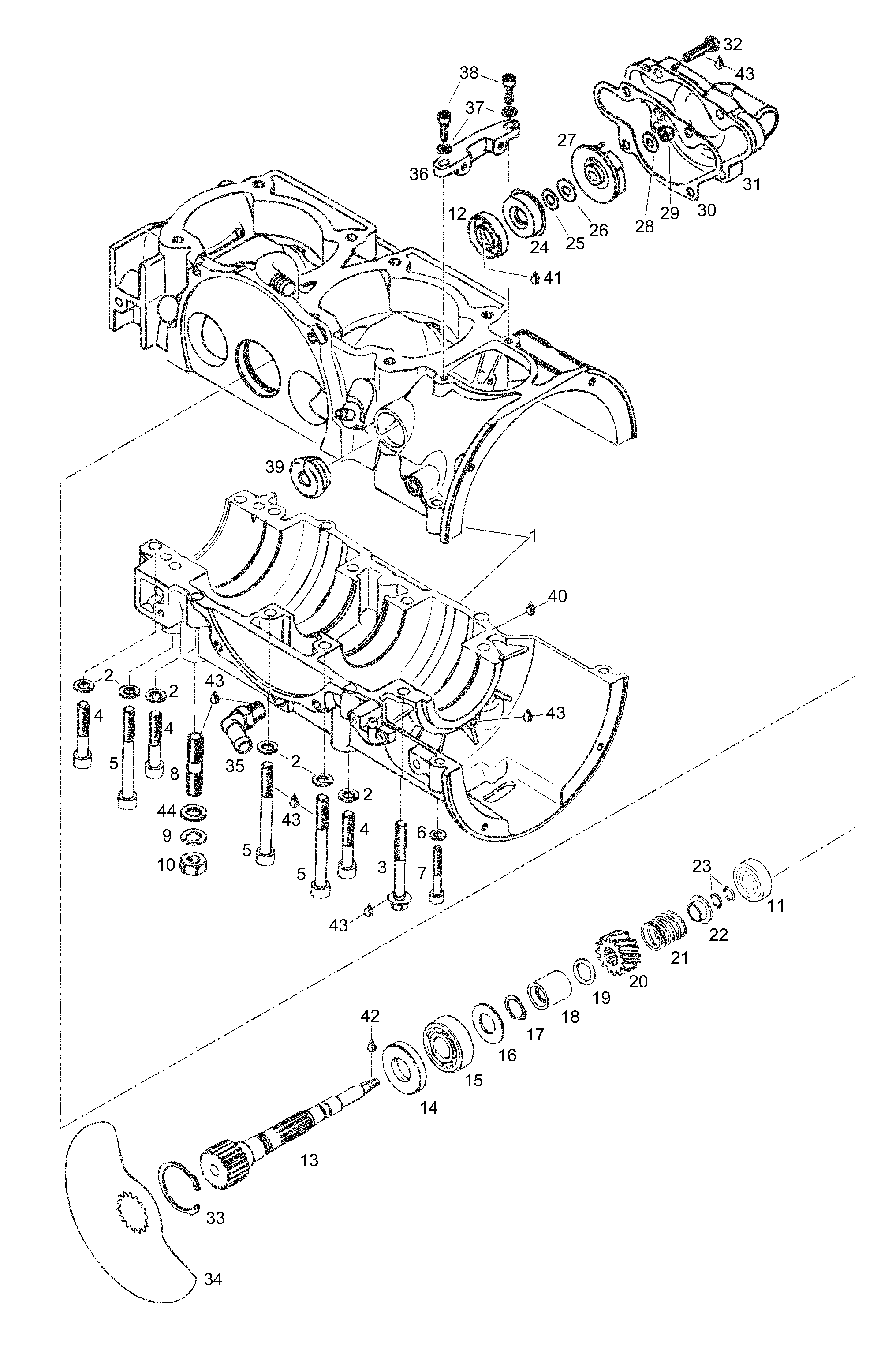

05- Crankcase для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
1420888181 Crankcase assy. Includes items 1 thru 7Crankcase assy. Includes items 1 thru 7
-
220014 Lock washerLock washer
-
3420841306 Screw M8x65Screw M8x65
-
4420841561 Allen screw M8x45Allen screw M8x45
-
5420841831 Allen screw M8x75Allen screw M8x75
-
620052 Lock washerLock washer
-
7420241816 Allen screw M6x40Allen screw M6x40
-
8420940704 Stud M10Stud M10
-
9420945753 Lock washerLock washer
-
1033004 Nut M10Nut M10
-
11420932797 Bearing 6201-ZBearing 6201-Z
-
12420850710 Oil sealOil seal
-
13420837243 Rotary valve shaftRotary valve shaft
-
14420930580 Oil sealOil seal
-
15405406400 Ball-bearing 6203Ball-bearing 6203
-
16420227439 ShimShim
-
17420845450 CirclipCirclip
-
18420847282 SpacerSpacer
-
19420831500 O-ringO-ring
-
20420935735 Rotary valve gearRotary valve gear
-
21420938810 SpringSpring
-
22420827430 Spring holding cupSpring holding cup
-
23420845160 CirclipCirclip
-
24420650370 Rotary sealRotary seal
-
25420227945 Thrust washerThrust washer
-
26420227155 Friction washerFriction washer
-
27420922036 Water pump impellerWater pump impeller
-
28420244211 WasherWasher
-
2933010 Nut M6Nut M6
-
30420931355 GasketGasket
-
31420922551 Pump housingPump housing
-
32420240031 Screw M6x25Screw M6x25
-
33420845260 Snap ringSnap ring
-
34420924509 Rotary valve 147 degr.Rotary valve 147 degr.
-
35420922245 Angular tubeAngular tube
-
36420851280 FixationFixation
-
3720002 WasherWasher
-
38420240181 Allen screw M5x20Allen screw M5x20
-
39420860965 Cable grommetCable grommet
-
40420297906 Sealing compoundSealing compound
-
42420899788 Loctite 648Loctite 648
-
43420899785 Loctite 221Loctite 221
-
44420897651 Loctite 243 blueLoctite 243 blue
